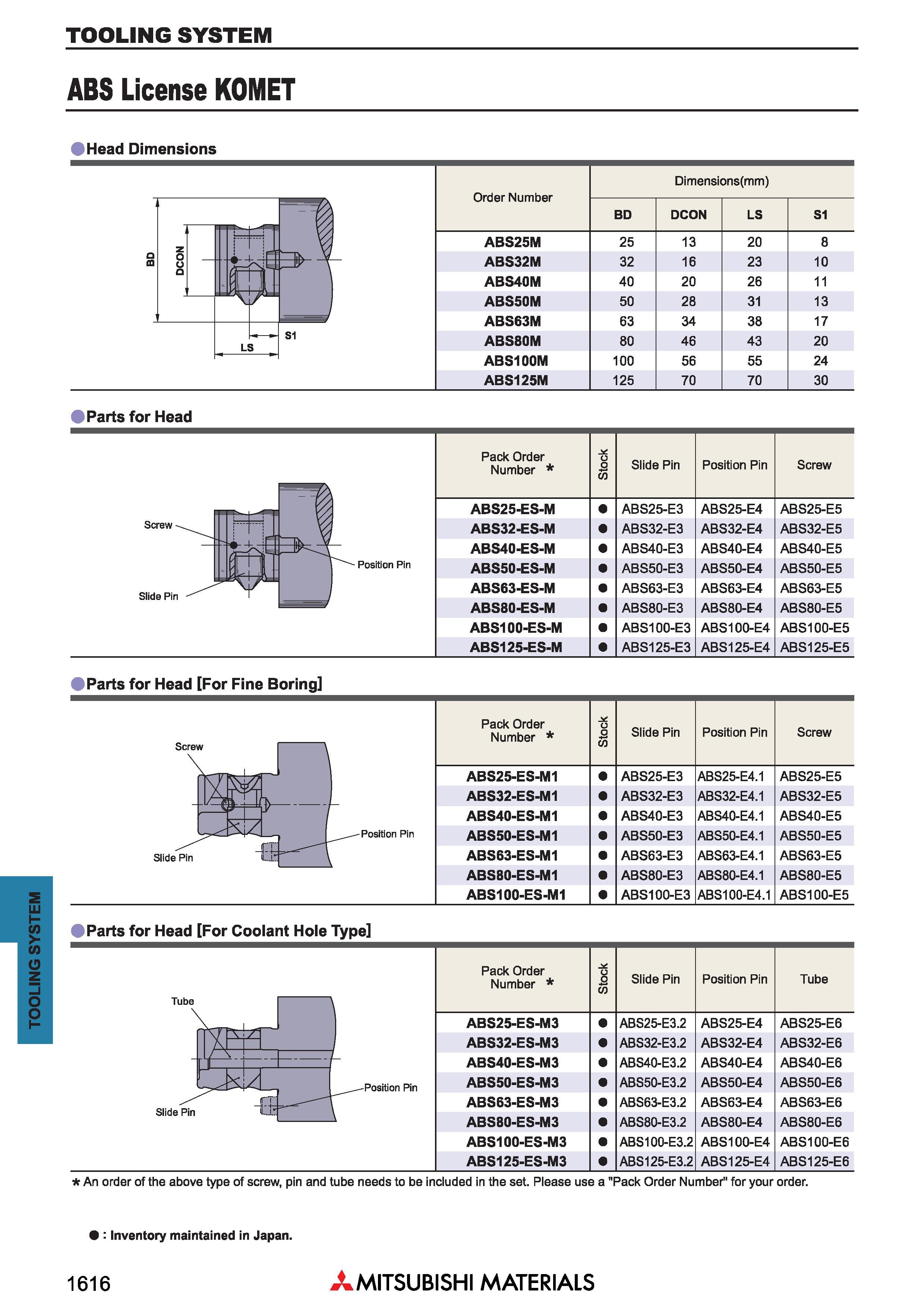

TOOLING SYSTEM ABS License KOMET Head Dimensions Обозначение Order Number Dimensions(mm) BD DCON LS S1 ABS25M 25 13 20 8 ABS32M 32 16 23 10 ABS40M 40 20 26 11 ABS50M 50 28 31 13 ABS63M 63 34 38 17 ABS80M 80 46 43 20 ABS100M 100 56 55 24 ABS125M 125 70 70 30 Parts for Head Pack Обозначение Order Number 3 w Slide Pin Position Pin Screw ABS25-ES-M ABS25-E3 ABS25-E4 ABS25-E5 Screw ABS32-ES-M ABS32-E3 ABS32-E4 ABS32-E5 ABS40-ES-M ABS40-E3 ABS40-E4 ABS40-E5 1 1 Position Pin ABS50-ES-M ABS50-E3 ABS50-E4 ABS50-E5 Slide Pin i ABS63-ES-M ABS63-E3 ABS63-E4 ABS63-E5 ABS80-ES-M ABS80-E3 ABS80-E4 ABS80-E5 ABS100-ES-M ABS100-E3 ABS100-E4 ABS100-E5 ABS125-ES-M ABS125-E3 ABS125-E4 ABS125-E5 Parts for Head For Fine Boring Pack Обозначение Order Number o 3 w Slide Pin Position Pin Screw ABS25-ES-M1 ABS25-E3 ABS25-E4.1 ABS25-E5 ABS32-ES-M1 ABS32-E3 ABS32-E4.1 ABS32-E5 ABS40-ES-M1 ABS40-E3 ABS40-E4.1 ABS40-E5 ABS50-ES-M1 ABS50-E3 ABS50-E4.1 ABS50-E5 ABS63-ES-M1 ABS63-E3 ABS63-E4.1 ABS63-E5 ABS80-ES-M1 ABS80-E3 ABS80-E4.1 ABS80-E5 ABS100-ES-M1 ABS100-E3 ABS100-E4.1 ABS100-E5 Parts for Head For Coolant Hole Type Pack Обозначение Order Number u 5 W Slide Pin Position Pin Tube ABS25-ES-M3 ABS25-E3.2 ABS25-E4 ABS25-E6 ABS32-ES-M3 ABS32-E3.2 ABS32-E4 ABS32-E6 ABS40-ES-M3 ABS40-E3.2 ABS40-E4 ABS40-E6 ABS50-ES-M3 ABS50-E3.2 ABS50-E4 ABS50-E6 ABS63-ES-M3 ABS63-E3.2 ABS63-E4 ABS63-E6 ABS80-ES-M3 ABS80-E3.2 ABS80-E4 ABS80-E6 ABS100-ES-M3 ABS100-E3.2 ABS100-E4 ABS100-E6 ABS125-ES-M3 ABS125-E3.2 ABS125-E4 ABS125-E6 An order of the above type of screw, pin and tube needs to be included in the set. Please use a "Pack Order Number" for your order. Inventory maintained in Japan. 1616 Mitsubishi Materials
