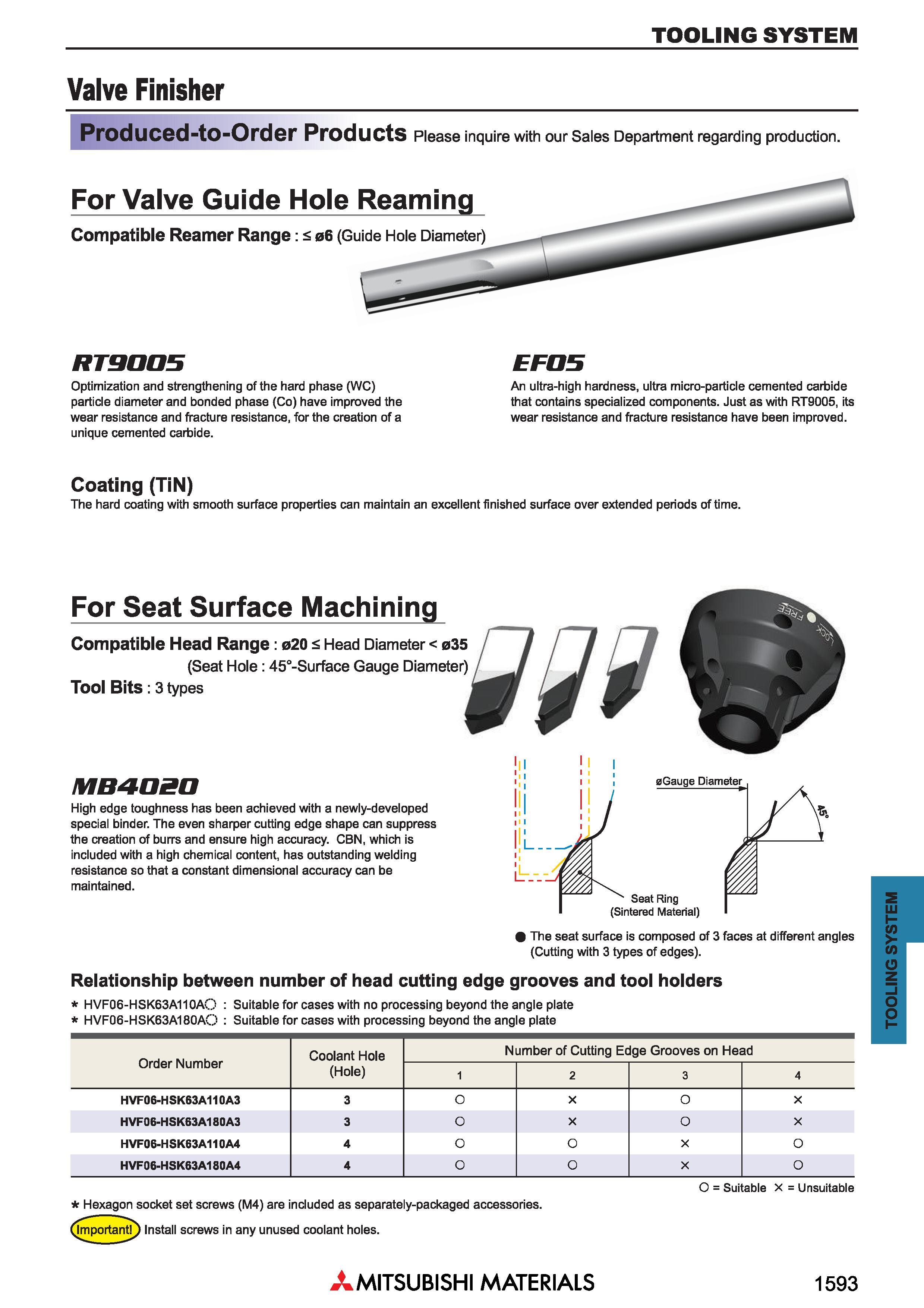

TOOLING SYSTEM Valve Finisher Produced-to-Order Products Please inquire with our Sales Department regarding production. For Valve Guide Hole Reaming Compatible Reamer Range: < 06 (Guide Hole Diameter) RT9005 Optimization and strengthening of the hard phase (WC) particle diameter and bonded phase (Co) have improved the wear resistance and fracture resistance, for the creation of a unique cemented carbide. EFD5 An ultra-high hardness, ultra micro-particle cemented carbide that contains specialized components. Just as with RT9005, its wear resistance and fracture resistance have been improved. Coating (TiN) The hard coating with smooth surface properties can maintain an excellent finished surface over extended periods of time. For Seat Surface Machining Compatible Head Range: 020 < Head Diameter < 035 (Seat Hole 45°-Surface Gauge Diameter) Tool Bits 3 types MB40B0 High edge toughness has been achieved with a newly-developed special binder. The even sharper cutting edge shape can suppress the creation of burrs and ensure high accuracy. CBN, which is included with a high chemical content, has outstanding welding resistance so that a constant dimensional accuracy can be maintained. Seat Ring (Sintered Material) The seat surface is composed of 3 faces at different angles (Cutting with 3 types of edges). Relationship between number of head cutting edge grooves and tool holders HVF06-HSK63A110AO HVF06-HSK63A180AQ Suitable for cases with no processing beyond the angle plate Suitable for cases with processing beyond the angle plate Обозначение Order Number Coolant Hole (Hole) Number of Cutting Edge Grooves on Head 1 2 3 4 HVF06-HSK63A110A3 3 O X O X HVF06-HSK63A180A3 3 O X O X HVF06-HSK63A110A4 4 X o HVF06-HSK63A180A4 4 X o O = Suitable X = Unsuitable Hexagon socket set screws (M4) are included as separately-packaged accessories. Qmportantn Install screws in any unused coolant holes. Mitsubishi Materials 1593 TOOLING SYSTEM
