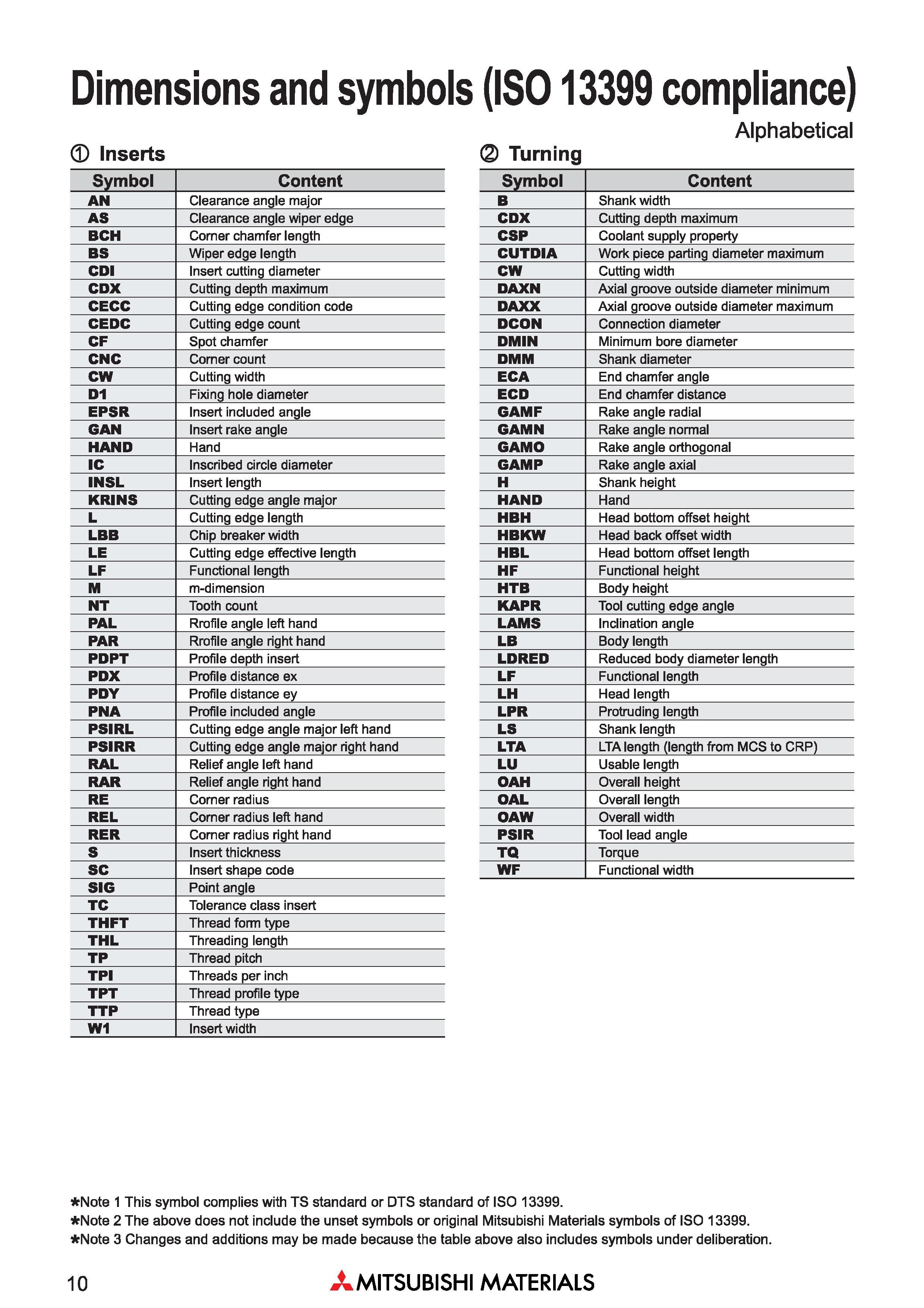

Dimensions and symbols (IS013399 compliance) 0 Inserts Symbol Content AN Clearance angle major AS Clearance angle wiper edge BCH Corner chamfer length BS Wiper edge length CDI Insert cutting diameter CDX Cutting depth maximum CECC Cutting edge condition code CEDC Cutting edge count CF Spot chamfer CNC Corner count CW Cutting width D1 Fixing hole diameter EPSR Insert included angle GAN Insert rake angle HAND Hand IC Inscribed circle diameter INSL Insert length KRINS Cutting edge angle major L Cutting edge length LBB Chip breaker width LE Cutting edge effective length LF Functional length M m-dimension NT Tooth count PAL Rrofile angle left hand PAR Rrofile angle right hand PDPT Profile depth insert PDX Profile distance ex PDY Profile distance ey PNA Profile included angle PSIRL Cutting edge angle major left hand PSIRR Cutting edge angle major right hand RAL Relief angle left hand RAR Relief angle right hand RE Corner radius REL Corner radius left hand RER Corner radius right hand S Insert thickness SC Insert shape code SIG Point angle TC Tolerance class insert THFT Thread form type THL Threading length TP Thread pitch TPI Threads per inch TPT Thread profile type TTP Thread type W1 Insert width O Turning Alphabetical Symbol Content B Shank width CDX Cutting depth maximum CSP Coolant supply property CUTDIA Work piece parting diameter maximum CW Cutting width DAXN Axial groove outside diameter minimum DAXX Axial groove outside diameter maximum DCON Connection diameter DMIN Minimum bore diameter DMM Shank diameter ECA End chamfer angle ECD End chamfer distance GAMF Rake angle radial GAMN Rake angle normal GAMO Rake angle orthogonal GAMP Rake angle axial H Shank height HAND Hand HBH Head bottom offset height HBKW Head back offset width HBL Head bottom offset length HF Functional height HTB Body height KAPR Tool cutting edge angle LAMS Inclination angle LB Body length LDRED Reduced body diameter length LF Functional length LH Head length LPR Protruding length LS Shank length LTA LTA length (length from MCS to CRP) LU Usable length OAH Overall height OAL Overall length OAW Overall width PSIR Tool lead angle TQ Torque WF Functional width Note 1 This symbol complies with TS standard or DTS standard of ISO 13399. Note 2 The above does not include the unset symbols or original Mitsubishi Materials symbols of ISO 13399. Note 3 Changes and additions may be made because the table above also includes symbols under deliberation. 10 Mitsubishi Materials
