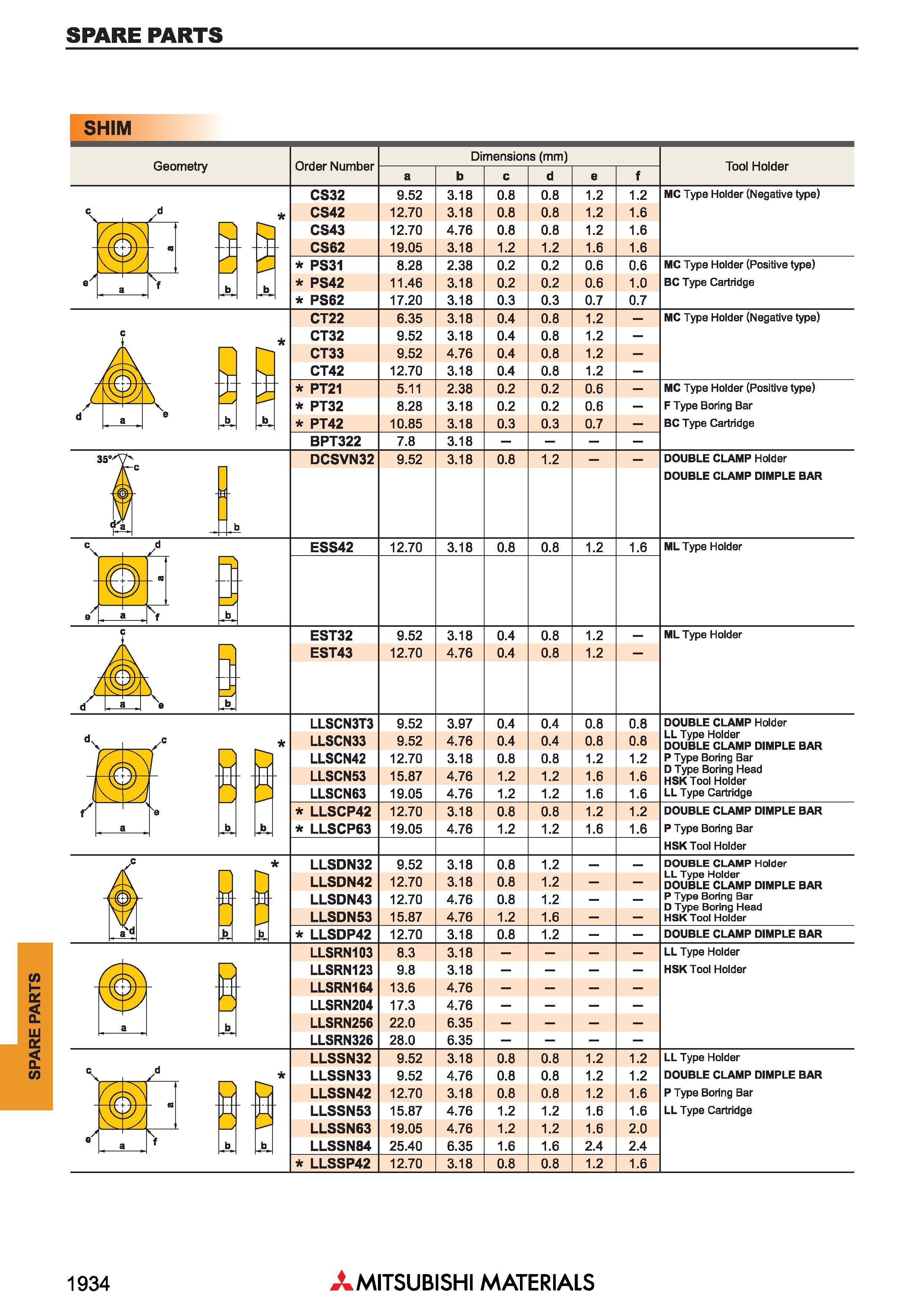

Инструмент Mitsubishi Запасные части и комплектующие SPARE PARTS _ Запасные части для металлорежущего инструмента SPARE PARTS SHIM Geometry Обозначение Order Number Размеры в мм Dimensions (mm) a e Tool Holder j. CS32 CS42 CS43 CS62 9.52 12.70 12.70 19.05 3.18 3.18 4.76 3.18 0.8 0.8 0.8 1.2 0.8 0.8 0.8 1.2 1.2 1.2 1.2 1.6 1.2 1.6 1.6 1.6 MC Type Holder (Negative type) PS31 PS42 PS62 8.28 11.46 17.20 2.38 3.18 3.18 0.2 0.2 0.3 0.2 0.2 0.3 0.6 0.6 0.7 0.6 1.0 0.7 MC Type Holder (Positive type) BC Type Cartridge J J CT22 CT32 CT33 CT42 6.35 9.52 9.52 12.70 3.18 3.18 4.76 3.18 0.4 0.4 0.4 0.4 0.8 0.8 0.8 0.8 1.2 1.2 1.2 1.2 MC Type Holder (Negative type) PT21 PT32 PT42 5.11 8.28 10.85 2.38 3.18 3.18 0.2 0.2 0.3 0.2 0.2 0.3 0.6 0.6 0.7 MC Type Holder (Positive type) F Type Boring Bar BC Type Cartridge BPT322 7.8 3.18 35°'V' i 1 DCSVN32 9.52 3.18 0.8 1.2 -S- DOUBLE CLAMP Holder DOUBLE CLAMP DIMPLE BAR ESS42 12.70 3.18 0.8 0.8 1.2 1.6 ML Type Holder EST32 EST43 9.52 12.70 3.18 4.76 0.4 0.4 0.8 0.8 1.2 1.2 ML Type Holder jT -H- -H- LLSCN3T3 LLSCN33 LLSCN42 LLSCN53 LLSCN63 9.52 9.52 12.70 15.87 19.05 3.97 4.76 3.18 4.76 4.76 0.4 0.4 0.8 1.2 1.2 0.4 0.4 0.8 1.2 1.2 0.8 0.8 1.2 1.6 1.6 0.8 0.8 1.2 1.6 1.6 DOUBLE CLAMP Holder LL Type Holder DOUBLE CLAMP DIMPLE BAR P Type Boring Bar D Type Boring Head HSK Tool Holder LL Type Cartridge LLSCP42 LLSCP63 12.70 19.05 3.18 4.76 0.8 1.2 0.8 1.2 1.2 1.6 1.2 1.6 DOUBLE CLAMP DIMPLE BAR P Type Boring Bar HSK Tool Holder -H- -H- LLSDN32 LLSDN42 LLSDN43 LLSDN53 9.52 12.70 12.70 15.87 3.18 3.18 4.76 4.76 0.8 0.8 0.8 1.2 1.2 1.2 1.2 1.6 DOUBLE CLAMP Holder LL Type Holder DOUBLE CLAMP DIMPLE BAR P Type Boring Bar D Type Boring Head HSK Tool Holder LLSDP42 12.70 3.18 0.8 1.2 DOUBLE CLAMP DIMPLE BAR -a- LLSRN103 LLSRN123 LLSRN164 LLSRN204 LLSRN256 LLSRN326 8.3 9.8 13.6 17.3 22.0 28.0 3.18 3.18 4.76 4.76 6.35 6.35 LL Type Holder HSK Tool Holder -a- -a- LLSSN32 LLSSN33 LLSSN42 LLSSN53 LLSSN63 LLSSN84 9.52 9.52 12.70 15.87 19.05 25.40 3.18 4.76 3.18 4.76 4.76 6.35 0.8 0.8 0.8 1.2 1.2 1.6 0.8 0.8 0.8 1.2 1.2 1.6 1.2 1.2 1.2 1.6 1.6 2.4 1.2 1.2 1.6 1.6 2.0 2.4 LL Type Holder DOUBLE CLAMP DIMPLE BAR P Type Boring Bar LL Type Cartridge LLSSP42 12.70 3.18 0.8 0.8 1.2 1.6 1934 Mitsubishi Materials
