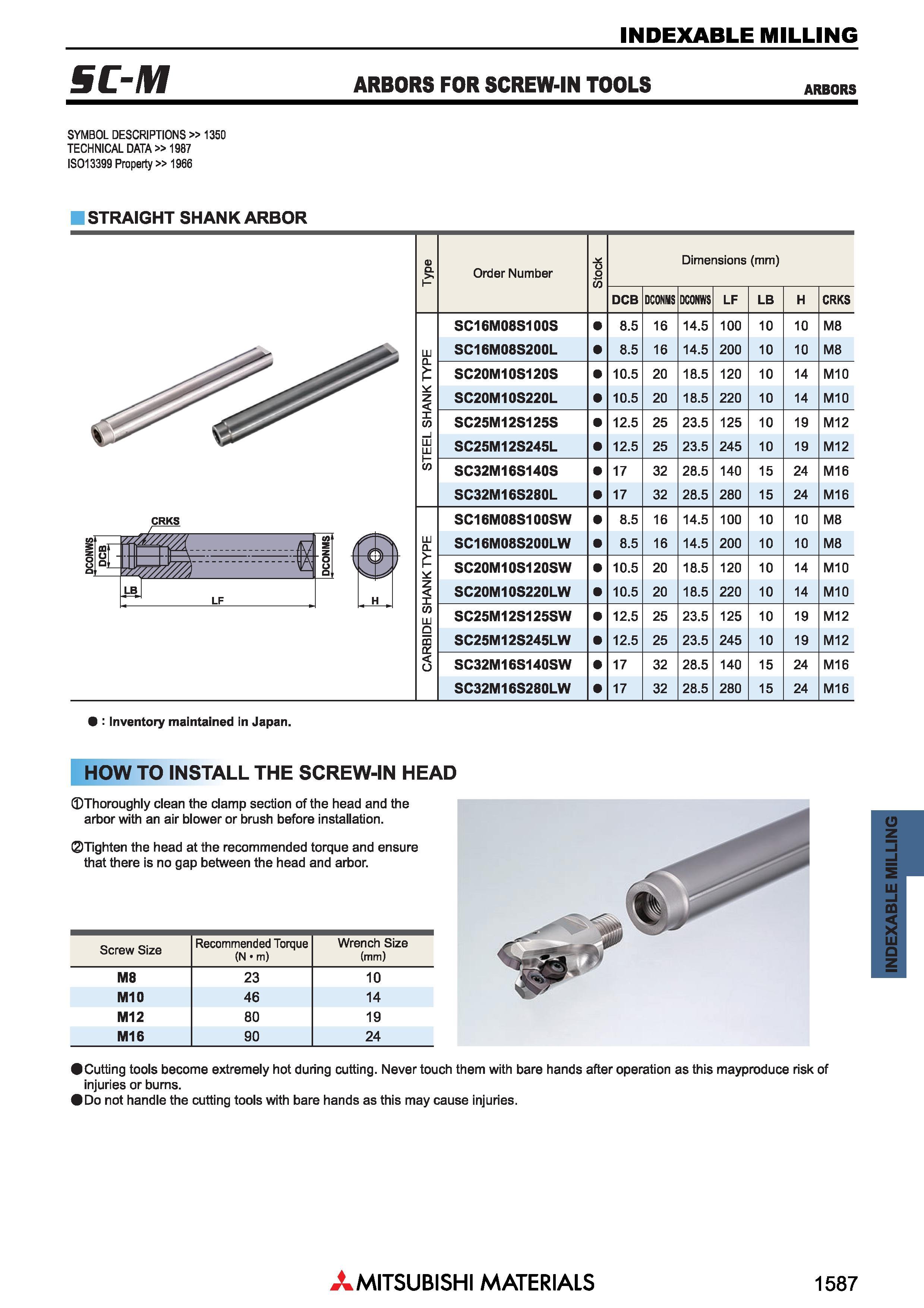

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ SC-M ARBORS FOR SCREW-IN TOOLS ARBORS SYMBOL DESCRIPTIONS 1350 TECHNICAL DATA 1987 ISO 13399 Property 1966 STRAIGHT SHANK ARBOR a) CL £ Обозначение Order Number Stock Размеры в мм Dimensions (mm) DCB DCONMS DCONWS LF LB H CRKS SC16M08S100S 8.5 16 14.5 100 10 10 M8 LU SC16M08S200L 8.5 16 14.5 200 10 10 M8 SC20M10S120S 10.5 20 18.5 120 10 14 M10 Z < SC20M10S220L 10.5 20 18.5 220 10 14 M10 I CO SC25M12S125S 12.5 25 23.5 125 10 19 M12 LU LU SC25M12S245L 12.5 25 23.5 245 10 19 M12 CO SC32M16S140S 17 32 28.5 140 15 24 M16 SC32M16S280L 17 32 28.5 280 15 24 M16 SC16M08S1OOSW 8.5 16 14.5 100 10 10 M8 LU CL SC16M08S200LW 8.5 16 14.5 200 10 10 M8 l SC20M10S120SW 10.5 20 18.5 120 10 14 M10 Z < I SC20M10S220LW 10.5 20 18.5 220 10 14 M10 CO LU SC25M12S125SW 12.5 25 23.5 125 10 19 M12 DO a: SC25M12S245LW 12.5 25 23.5 245 10 19 M12 5 SC32M16S140SW 17 32 28.5 140 15 24 M16 SC32M16S280LW 17 32 28.5 280 15 24 M16 CRKS m /lv tn s z a u a LB LF Inventory maintained in Japan. HOW TO INSTALL THE SCREW-IN HEAD Thoroughly clean the clamp section of the head and the arbor with an air blower or brush before installation. Tighten the head at the recommended torque and ensure that there is no gap between the head and arbor. Screw Size Recommended Torque (N m) Wrench Size (mm) M8 23 10 M10 46 14 M12 80 19 M16 90 24 Cutting tools become extremely hot during cutting. Never touch them with bare hands after operation as this mayproduce risk of injuries or burns. Do not handle the cutting tools with bare hands as this may cause injuries. Mitsubishi Materials 1587 INDEXABLE MILLING
