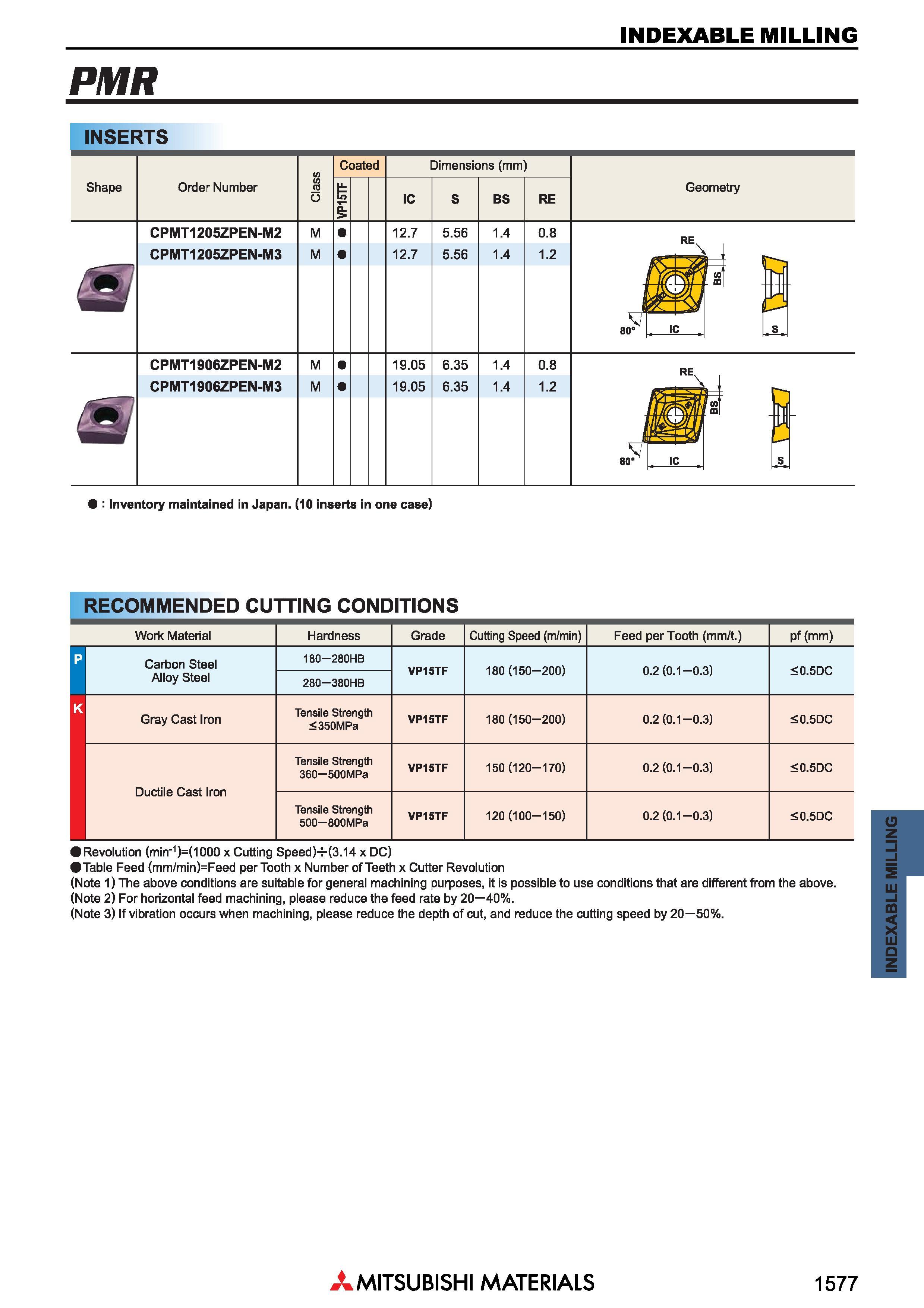

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ PMR INSERTS Shape Обозначение Order Number Coated Размеры в мм Dimensions (mm) IC BS RE Geometry CPMT1205ZPEN-M2 CPMT1205ZPEN-M3 M M 12.7 12.7 5.56 5.56 1.4 1.4 0.8 1.2 B CPMT1906ZPEN-M2 CPMT1906ZPEN-M3 M M 19.05 19.05 6.35 6.35 1.4 1.4 0.8 1.2 Inventory maintained in Japan. (10 inserts in one case) RECOMMENDED CU' FTING COND ITIONS Обрабатываемые материалы Work Material Hardness Grade Скорость резания (м/мин) Cutting Speed (m/min) Подача на зуб Feed per Tooth (mm/t.) pf (mm) Carbon Steel 180 280HB VP15TF 180 (150-200) 0.2 (0.1-0.3) <0.5DC Alloy Steel 280 380HB Gray Cast Iron Tensile Strength <350MPa VP15TF 180 (150-200) 0.2 (0.1-0.3) <0.5DC Ductile Cast Iron Tensile Strength 360 500MPa VP15TF 150 (120-170) 0.2 (0.1-0.3) <0.5DC Tensile Strength 500 800MPa VP15TF 120 (100-150) 0.2 (0.1-0.3) <0.5DC Revolution (min'1)=(1000 x Cutting Speed )-r(3.14 x DC) Table Feed (mm/min)=Feed per Tooth x Количество режущих зубьев Number of Teeth x Cutter Revolution (Note 1) The above conditions are suitable for general machining purposes, it is possible to use conditions that are different from the above. (Note 2) For horizontal feed machining, please reduce the feed rate by 20 40%. (Note 3) If vibration occurs when machining, please reduce the depth of cut, and reduce the cutting speed by 20 50%. Mitsubishi Materials 1577 INDEXABLE MILLING
