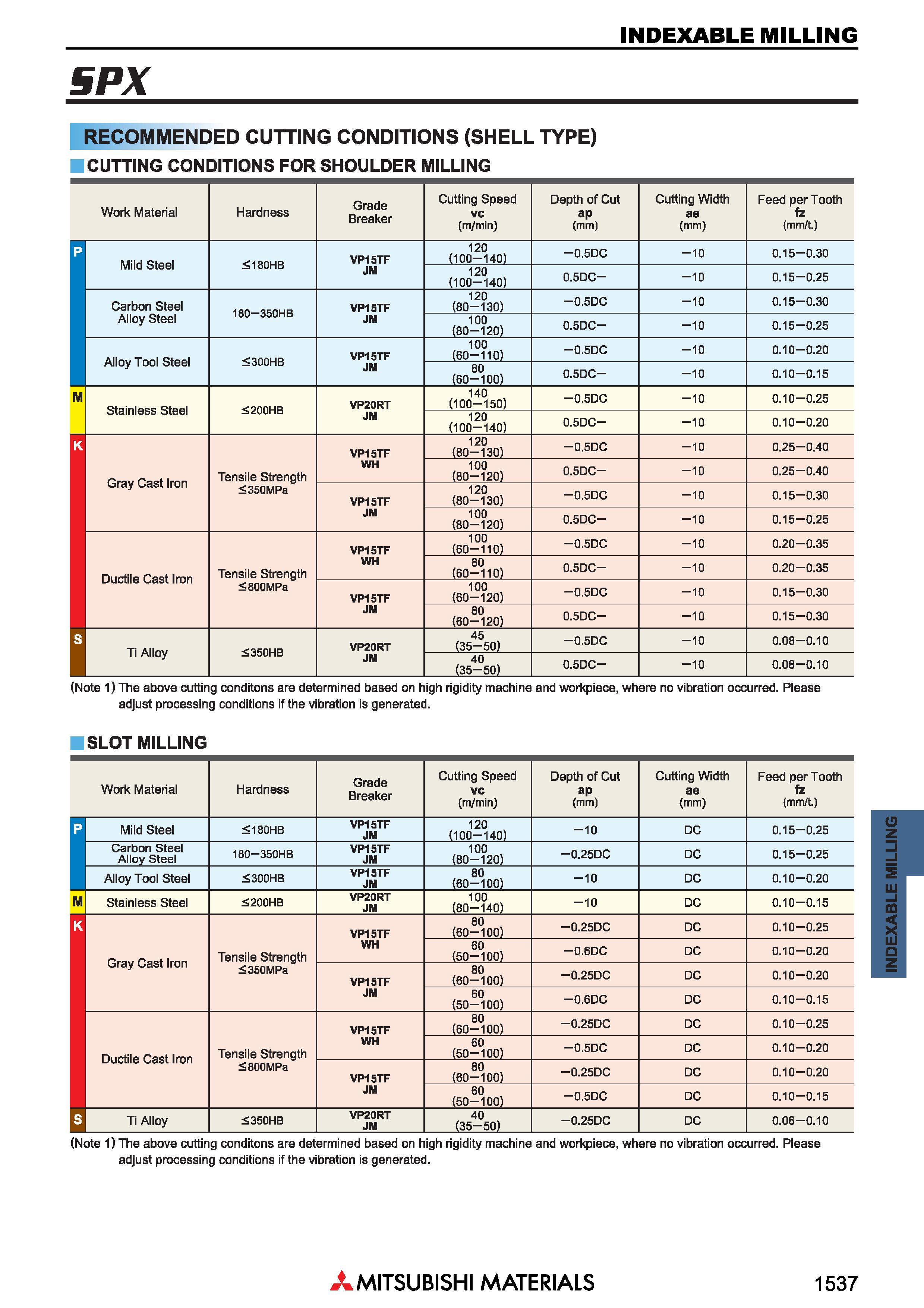

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ SPX Рекомендуемые режимы резания при обработке на станке RECOMMENDED CUTTING CONDITIONS (SHELL TYPE) CUTTING CONDITIONS FOR SHOULDER MILLING Обрабатываемые материалы Work Material Hardness Grade Breaker Cutting Speed vc (m/min) Depth of Cut ap (mm) Cutting Width ae (mm) Feed per Tooth fz (mm/t.) E Mild Steel 180HB VP15TF 120 (100-140) 0.5DC -10 0.15-0.30 JM 120 (100-140) 0.5DC- -10 0.15-0.25 Carbon Steel 180 350HB VP15TF 120 (80-130) 0.5DC -10 0.15-0.30 Alloy Steel JM 100 (80-120) 0.5DC- -10 0.15-0.25 Alloy Tool Steel <300HB VP15TF 100 (60-110) 0.5DC -10 0.10-0.20 JM 80 (60-100) 0.5DC -10 0.10-0.15 M Stainless Steel <200HB VP20RT 140 (100-150) 0.5DC -10 0.10-0.25 JM 120 (100-140) 0.5DC -10 0.10-0.20 K VP15TF 120 (80-130) 0.5DC -10 0.25-0.40 Gray Cast Iron Tensile Strength WH 100 (80-120) 0.5DC- -10 0.25-0.40 <350MPa VP15TF 120 (80-130) 0.5DC -10 0.15-0.30 JM 100 (80-120) 0.5DC- -10 0.15-0.25 VP15TF 100 (60-110) 0.5DC -10 0.20-0.35 Ductile Cast Iron Tensile Strength WH 80 (60-110) 0.5DC- -10 0.20-0.35 <800MPa VP15TF 100 (60-120) 0.5DC -10 0.15-0.30 JM 80 (60-120) 0.5DC -10 0.15-0.30 S Ti Alloy £350HB VP20RT 45 (35-50) 0.5DC -10 0.08-0.10 JM 40 (35-50) 0.5DC- -10 0.08-0.10 (Note 1) The above cutting conditons are determined based on high rigidity machine and workpiece, where no vibration occurred. Please adjust processing conditions if the vibration is generated. SLOT MILLING Обрабатываемые материалы Work Material Hardness Grade Breaker Cutting Speed vc (m/min) Depth of Cut ap (mm) Cutting Width ae (mm) Feed per Tooth fz (mm/t.) B Mild Steel < 180HB VP15TF JM 120 (100-140) -10 DC 0.15-0.25 Carbon Steel Alloy Steel 180 350HB VP15TF JM 100 (80-120) 0.25DC DC 0.15-0.25 Alloy Tool Steel <300HB VP15TF JM 80 (60-100) -10 DC 0.10-0.20 M Stainless Steel <200HB VP20RT JM 100 (80-140) -10 DC 0.10-0.15 K VP15TF 80 (60-100) 0.25DC DC 0.10-0.25 Gray Cast Iron Tensile Strength WH 60 (50-100) 0.6DC DC 0.10-0.20 <350MPa VP15TF 80 (60-100) 0.25DC DC 0.10-0.20 JM 60 (50-100) 0.6DC DC 0.10-0.15 VP15TF 80 (60-100) 0.25DC DC 0.10-0.25 Ductile Cast Iron Tensile Strength WH 60 (50-100) 0.5DC DC 0.10-0.20 <800MPa VP15TF 80 (60-100) 0.25DC DC 0.10-0.20 JM 60 (50-100) 0.5DC DC 0.10-0.15 S Ti Alloy £350HB VP20RT JM 40 (35-50) 0.25DC DC 0.06-0.10 (Note 1) The above cutting conditons are determined based on high rigidity machine and workpiece, where no vibration occurred. Please adjust processing conditions if the vibration is generated. Mitsubishi Materials 1537 INDEXABLE MILLING
