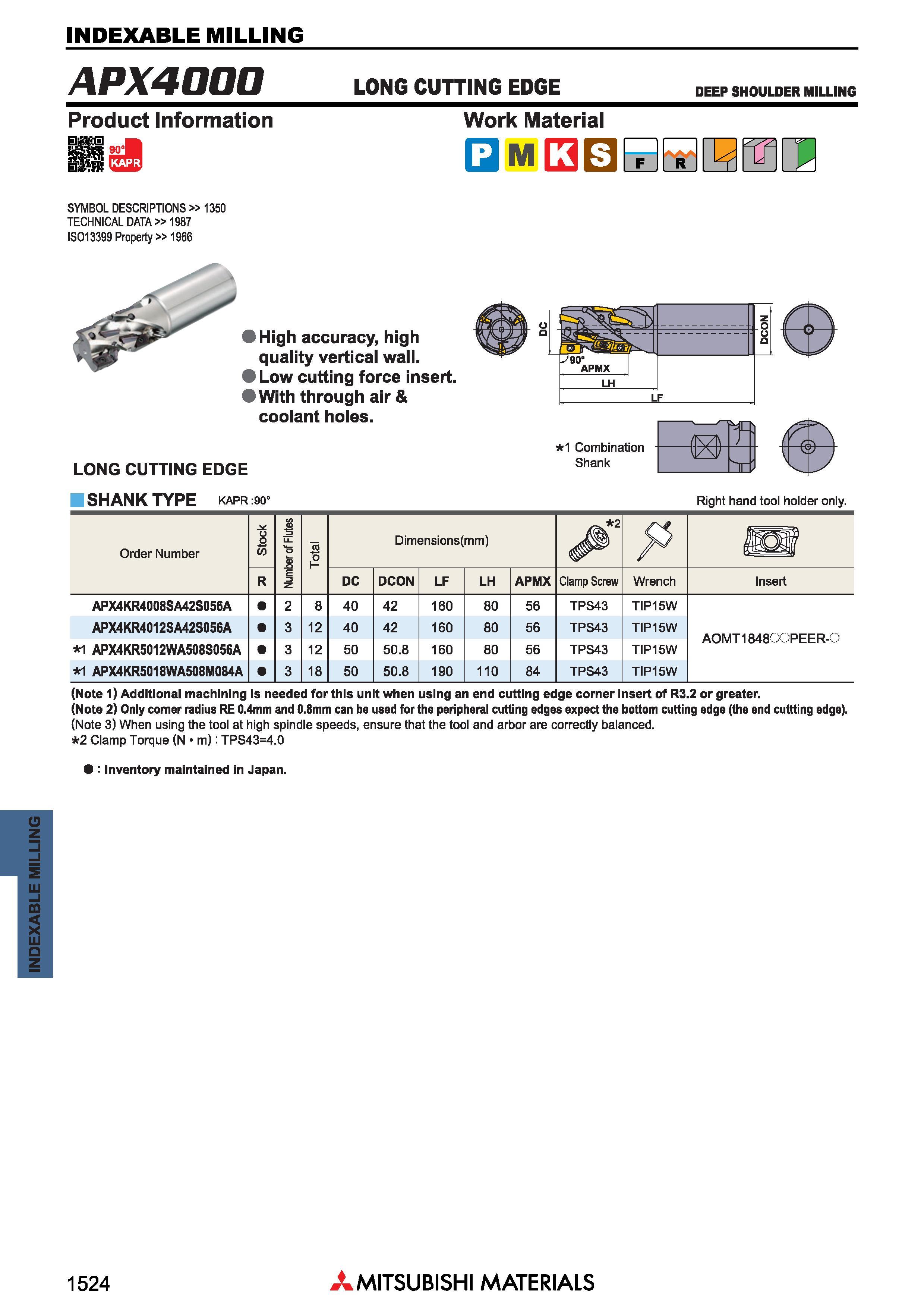

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ APX4aaO LONG CUTTING EDGE DEEP SHOULDER MILLING Product Information 901 Обрабатываемые материалы Work Material Q m QSHnHEIC SYMBOL DESCRIPTIONS 1350 TECHNICAL DATA 1987 ISO 13399 Property 1966 > High accuracy, high quality vertical wall. > Low cutting force insert. > With through air & coolant holes. LONG CUTTING EDGE SHANK TYPE kapr smt 1 Combination Shank '' Right hand tool holder only. Обозначение Order Number Stock Number of Flutes Total Dimensions(mm) >5 R DC DCON LF LH APMX Clamp Screw Wrench APX4KR4008SA42S056A 2 8 40 42 160 80 56 TPS43 TIP15W APX4KR4012SA42S056A 3 12 40 42 160 80 56 TPS43 TIP15W 1 APX4KR5012WA508S056A 3 12 50 50.8 160 80 56 TPS43 TIP15W 1 APX4KR5018WA508M084A 3 18 50 50.8 190 110 84 TPS43 TIP15W Insert AOMT1848 PEER- (Note 1) Additional machining is needed for this unit when using an end cutting edge corner insert of R3.2 or greater. (Note 2) Only corner radius RE 0.4mm and 0.8mm can be used for the peripheral cutting edges expect the bottom cutting edge (the end cuttting edge). (Note 3) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced. 2 Clamp Torque (N m): TPS43=4.0 Inventory maintained in Japan. 1524 Mitsubishi Materials
