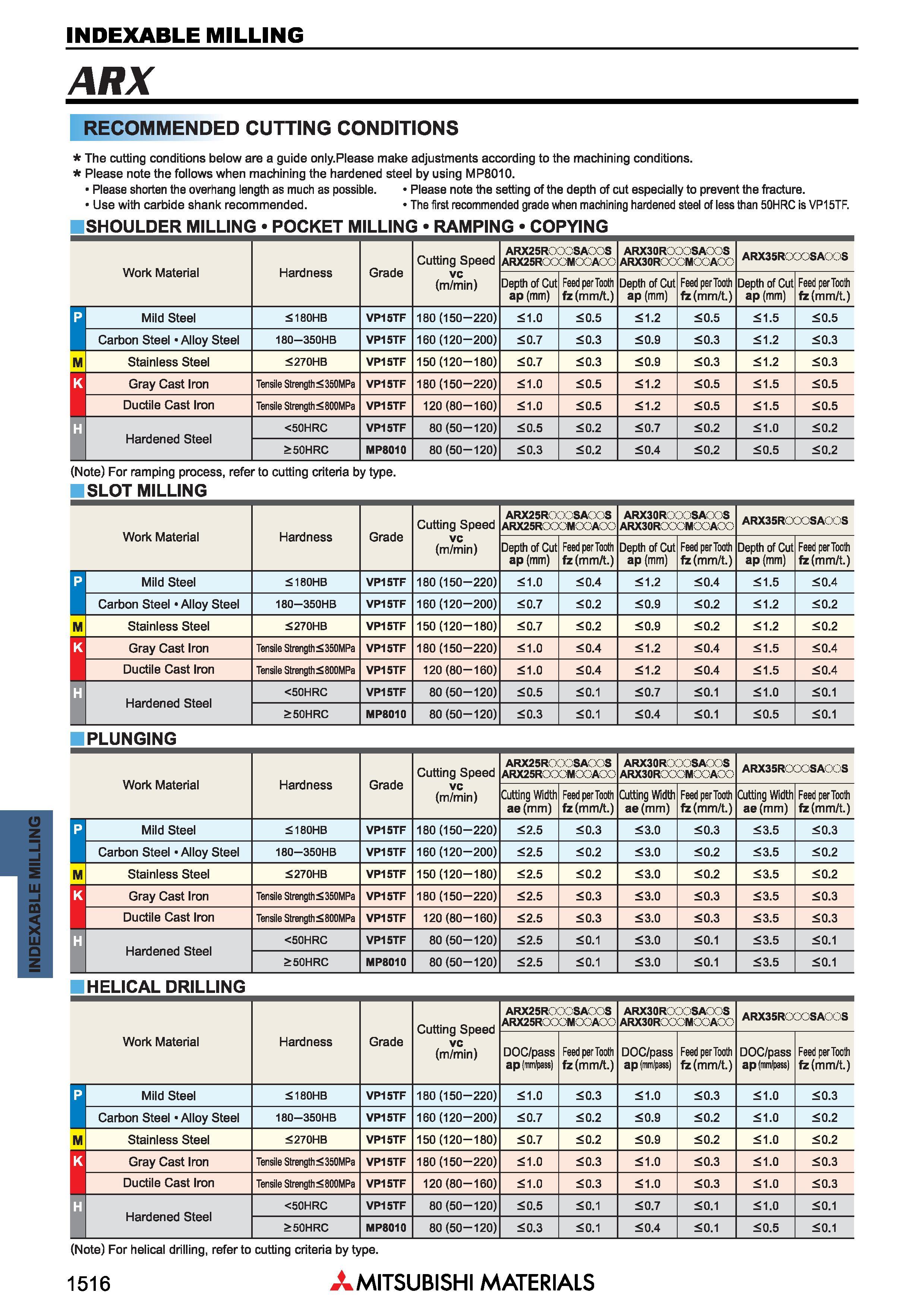

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ ARX Рекомендуемые режимы резания при обработке на станке RECOMMENDED CUTTING CONDITIONS The cutting conditions below are a guide only.Please make adjustments according to the machining conditions. Please note the follows when machining the hardened steel by using MP8010. Please shorten the overhang length as much as possible. Please note the setting of the depth of cut especially to prevent the fracture. Use with carbide shank recommended. The first recommended grade when machining hardened steel of less than 50HRC is VP15TF. SHOULDER MILLING i POCKET M ILLINC 5 RAMPIN G COPYING Обрабатываемые материалы Work Material Hardness Grade Cutting Speed ARX25R ARX25ROO ;:.:Sa:;:;s OMOOAOO ARX30R ARX30ROO '.'JOSAOOS OMOOAOO ARX35R XiSAOOS VC (m/min) Depth of Cut ap (mm) Feed per Tooth fz(mmft.) Depth of Cut ap (mm) Feed per Tooth fa (mm/t.) Depth of Cut ap (mm) Feed per Tooth fa (mm/t.) B Mild Steel 180HB VP15TF 180 (150-220) <1.0 <0.5 <1.2 <0.5 <1.5 <0.5 1 Carbon Steel Alloy Steel 180 350HB VP15TF 160 (120-200) <0.7 <0.3 <0.9 <0.3 <1.2 <0.3 M Stainless Steel <270HB VP15TF 150(120-180) <0.7 <0.3 <0.9 <0.3 <1.2 <0.3 K Gray Cast Iron Tensile Strength <350MPa VP15TF 180 (150-220) <1.0 <0.5 <1.2 <0.5 <1.5 <0.5 Ductile Cast Iron Tensile Strength<800MPa VP15TF 120(80-160) <1.0 <0.5 <1.2 <0.5 <1.5 <0.5 H Hardened Steel <50HRC VP15TF 80(50-120) <0.5 <0.2 <0.7 <0.2 <1.0 <0.2 >50HRC MP8010 80(50-120) <0.3 <0.2 <0.4 <0.2 <0.5 <0.2 (Note) For ramping process, refer to cutting criteria by type. SLOT MILLING Обрабатываемые материалы Work Material Hardness Grade Cutting Speed ARX25R ARX25ROO SA S OMOOAOO ARX30R ARX30ROO SA S OMOOAOO ARX35R :SA S VC (m/min) Depth of Cut ap (mm) Feed per Tooth fa(mmA.) Depth of Cut ap (mm) Feed per Tooth fa (mm/t.) Depth of Cut ap (mm) Feed per Tooth fa (mm/t.) B Mild Steel < 180HB VP15TF 180 (150-220) <1.0 <0.4 <1.2 <0.4 <1.5 <0.4 1 Carbon Steel Alloy Steel 180 350HB VP15TF 160 (120-200) <0.7 <0.2 <0.9 <0.2 <1.2 <0.2 M Stainless Steel 5270HB VP15TF 150(120-180) <0.7 <0.2 <0.9 <0.2 <1.2 <0.2 K Gray Cast Iron Tensile Strength 350MPa VP15TF 180 (150-220) <1.0 <0.4 <1.2 <0.4 <1.5 <0.4 Ductile Cast Iron Tensile Strength 800MPa VP15TF 120(80-160) <1.0 <0.4 <1.2 <0.4 <1.5 <0.4 H Hardened Steel <50HRC VP15TF 80(50-120) <0.5 <0.1 <0.7 <0.1 <1.0 <0.1 >50HRC MP8010 80(50-120) <0.3 <0.1 <0.4 <0.1 <0.5 <0.1 PLUNGING Обрабатываемые материалы Work Material Hardness Grade Cutting Speed ARX25RCX ARX25ROO SA S OMOOAOO ARX30R ARX30ROO SA S :;m.;.;a:;:; ARX35R SA S vc (m/min) Cutting Width ae (mm) Feed per Tooth fa(mmA.) Cutting Width ae(mm) Feed per Tooth fa (mm/t.) Cutting Width ae(mm) Feed per Tooth fa (mm/t.) B Mild Steel < 180HB VP15TF 180 (150-220) <2.5 <0.3 <3.0 <0.3 <3.5 <0.3 Carbon Steel Alloy Steel 180 350HB VP15TF 160 (120-200) <2.5 <0.2 <3.0 <0.2 <3.5 <0.2 M Stainless Steel 5270HB VP15TF 150(120-180) <2.5 <0.2 <3.0 <0.2 <3.5 <0.2 B Gray Cast Iron Tensile Strength 350MPa VP15TF 180 (150-220) <2.5 <0.3 <3.0 <0.3 <3.5 <0.3 Ductile Cast Iron Tensile Strength 800MPa VP15TF 120(80-160) <2.5 <0.3 <3.0 <0.3 <3.5 <0.3 H Hardened Steel <50HRC VP15TF 80(50-120) <2.5 <0.1 <3.0 <0.1 <3.5 <0.1 >50HRC MP8010 80(50-120) <2.5 <0.1 <3.0 <0.1 <3.5 <0.1 HELICAL DRILLING Cutting Speed vc (m/min) ARX25RCX ARX25ROO SA S omo:;a:;:; ARX30R ARX30ROO SA S OMOOAOO ARX35R SA S Обрабатываемые материалы Work Material Hardness Grade DOC/pass ap (mm/pass Feed per Tooth fa (mm/t.) DOC/pass ap (mm/pass) Feed per Tooth fa (mm/t.) DOC/pass ap (mm/pass Feed per Tooth fa (mm/t.) B Mild Steel 180HB VP15TF 180 (150-220) <1.0 <0.3 <1.0 <0.3 <1.0 <0.3 B Carbon Steel Alloy Steel 180 350HB VP15TF 160 (120-200) <0.7 <0.2 <0.9 <0.2 <1.0 <0.2 M Stainless Steel <270HB VP15TF 150(120-180) <0.7 <0.2 <0.9 <0.2 <1.0 <0.2 K Gray Cast Iron Tensile Strength<350MPa VP15TF 180 (150-220) <1.0 <0.3 <1.0 <0.3 <1.0 <0.3 Ductile Cast Iron Tensile Strength<800MPa VP15TF 120(80-160) <1.0 <0.3 <1.0 <0.3 <1.0 <0.3 H Hardened Steel <50HRC VP15TF 80(50-120) <0.5 <0.1 <0.7 <0.1 <1.0 <0.1 >50HRC MP8010 80(50-120) <0.3 <0.1 <0.4 <0.1 <0.5 <0.1 (Note) For helical drilling, refer to cutting criteria by type. 1516 Mitsubishi Materials
