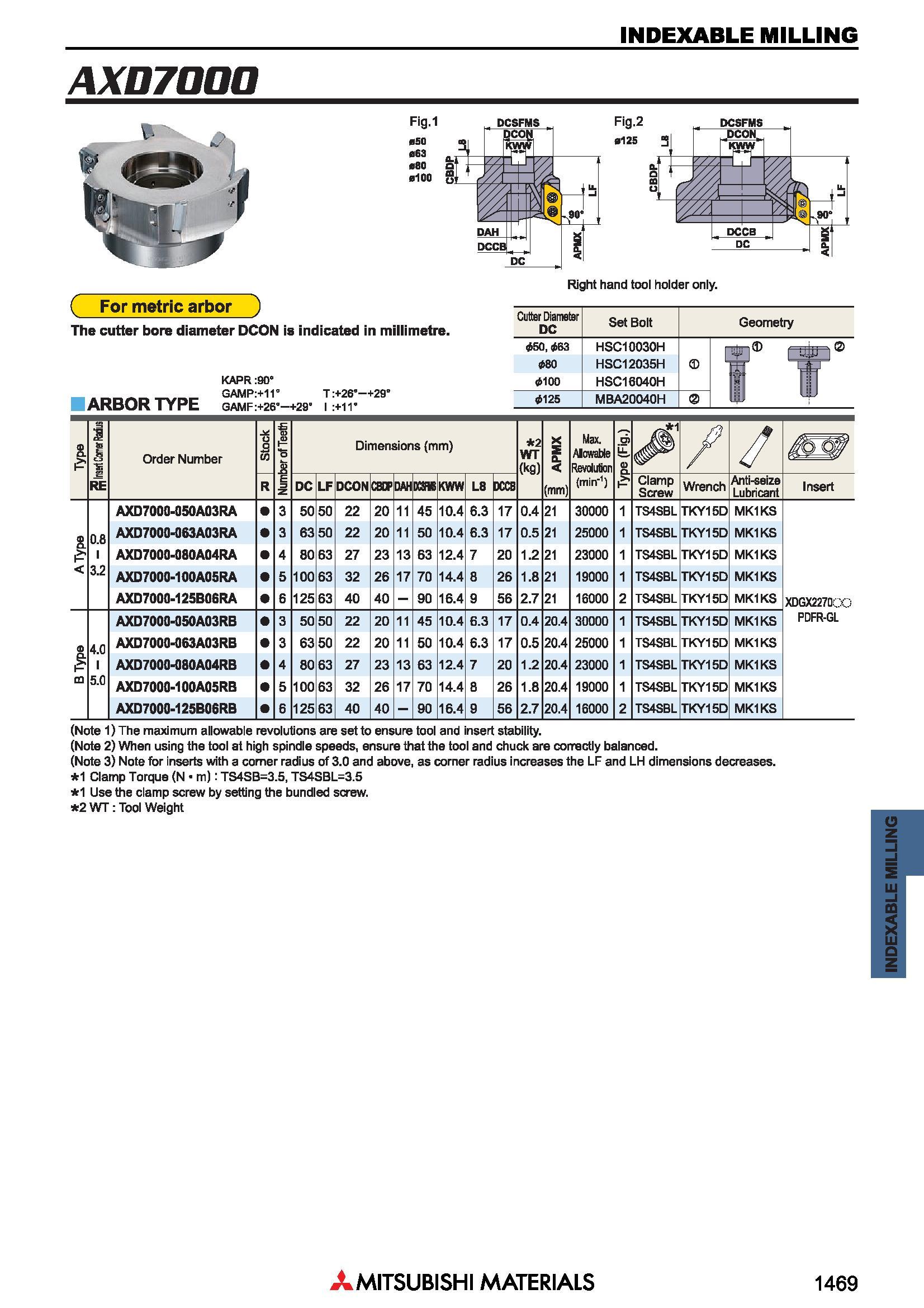

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ AXD7QQQ Right hand tool holder only. ( For metric arbor ; The cutter bore diameter DCON is indicated in millimetre. Cutter Diameter DC ARBOR TYPE KAPR :90° GAMP:+11" GAMF:+26, +29’ 50, 63 80 (6100 T :+26' +29" I :+ir 0125 Set Bolt HSC10030H HSC12035H HSC16040H MBA20040H Geometry Обозначение Order Number Размеры в мм Dimensions (mm) DC LF DCON C80P DAH DCS KWW L8 DCCB 2 WT (kg) Q. < (mm) Max. AlowaWe Revolution (mirr1) Clamp Screw Wrench Anti-seize Lubricant Insert AXD7000-Q50A03RA AXD7000-063A03RA AXD7000-080A04RA AXD7000-100A05 RA AXD7000-125B06RA 50 63 80 100 125 22 22 27 32 40 45 50 63 70 90 10.4 10.4 12.4 14.4 16.4 6.3 6.3 7 8 9 0.4 0.5 1.2 1.8 2.7 30000 25000 23000 19000 16000 TS4SBL TS4SBL TS4SBL TS4SBL TS4SBL TKY15D TKY15D TKY15D TKY15D TKY15D MK1KS MK1KS MK1KS MK1KS MK1KS XDGX227GQO PDFR-GL AXD7000-050A03RB AXD7000-063A03RB AXD7000-080A04RB AXD7000-100A05RB AXD7000-125B06RB 50 63 80 100 125 22 22 27 32 40 45 50 63 70 90 10.4 10.4 12.4 14.4 16.4 6.3 6.3 7 8 9 0.4 0.5 1.2 1.8 2.7 20.4 20.4 20.4 20.4 20.4 30000 25000 23000 19000 16000 TS4SBL TS4SBL TS4SBL TS4SBL TS4SBL TKY15D TKY15D TKY15D TKY15D TKY15D MK1KS MK1KS MK1KS MK1KS MK1KS (Note 1) The maximum allowable revolutions are set to ensure tool and insert stability. (Note 2) When using the tool at high spindle speeds, ensure that the tool and chuck are correctly balanced. (Note 3) Note for inserts with a comer radius of 3.0 and above, as corner radius increases the LF and LH dimensions decreases. 1 Clamp Torque (N m): TS4SB=3.5, TS4SBL=3.5 1 Use the clamp screw by setting the bundled screw. 2 WT: Tool Weight Mitsubishi Materials 1469 INDEXABLE MILLING
