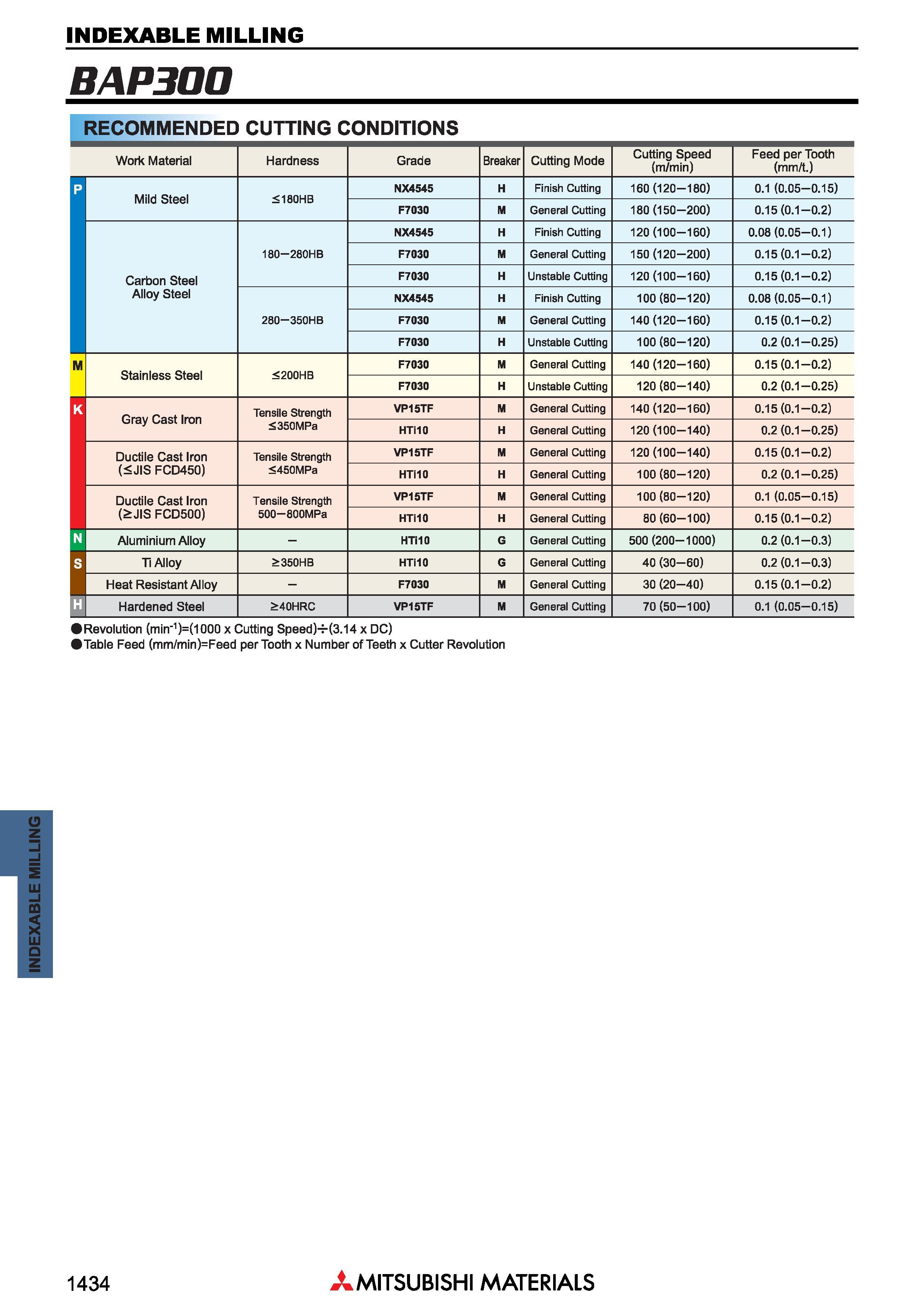

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ BAP300 RECOMMENDED CUTTING C CONDITIONS Обрабатываемые материалы Work Material Hardness Grade Breaker Cutting Mode Скорость резания (м/мин) Cutting Speed (m/min) Подача на зуб Feed per Tooth (mm/t.) p Mild Steel <180HB NX4545 H Finish Cutting 160 (120-180) 0.1 (0.05-0.15) F7030 M General Cutting 180 (150-200) 0.15(0.1-0.2) NX4545 H Finish Cutting 120 (100-160) 0.08(0.05-0.1) 180 280HB F7030 M General Cutting 150 (120-200) 0.15(0.1-0.2) Carbon Steel F7030 H Unstable Cutting 120 (100-160) 0.15(0.1-0.2) Alloy Steel NX4545 H Finish Cutting 100 (80-120) 0.08(0.05-0.1) 280 350HB F7030 M General Cutting 140 (120-160) 0.15(0.1-0.2) F7030 H Unstable Cutting 100 (80-120) 0.2(0.1-0.25) M Stainless Steel <200HB F7030 M General Cutting 140 (120-160) 0.15(0.1-0.2) F7030 H Unstable Cutting 120 (80-140) 0.2(0.1-0.25) K Gray Cast Iron Tensile Strength VP15TF M General Cutting 140 (120-160) 0.15(0.1-0.2) 5350MPa HTilO H General Cutting 120 (100-140) 0.2(0.1-0.25) Ductile Cast Iron Tensile Strength VP15TF M General Cutting 120 (100-140) 0.15(0.1-0.2) (< JIS FCD450) <450MPa HTilO H General Cutting 100 (80-120) 0.2(0.1-0.25) Ductile Cast Iron Tensile Strength VP15TF M General Cutting 100 (80-120) 0.1 (0.05-0.15) (£JIS FCD500) 500 800MPa HTilO H General Cutting 80(60-100) 0.15(0.1-0.2) N Aluminium Alloy - HTilO G General Cutting 500 (200-1000) 0.2 (0.1-0.3) S Ti Alloy >350HB HTilO G General Cutting 40 (30-60) 0.2 (0.1-0.3) Heat Resistant Alloy - F7030 M General Cutting 30 (20-40) 0.15(0.1-0.2) D Hardened Steel >40HRC VP15TF M General Cutting 70 (50-100) 0.1 (0.05-0.15) Revolution (min"1)=(1000 x Cutting Speed)-r(3.14 x DC) Table Feed (mm/min)=Feed per Tooth x Количество режущих зубьев Number of Teeth x Cutter Revolution 1434 Mitsubishi Materials
