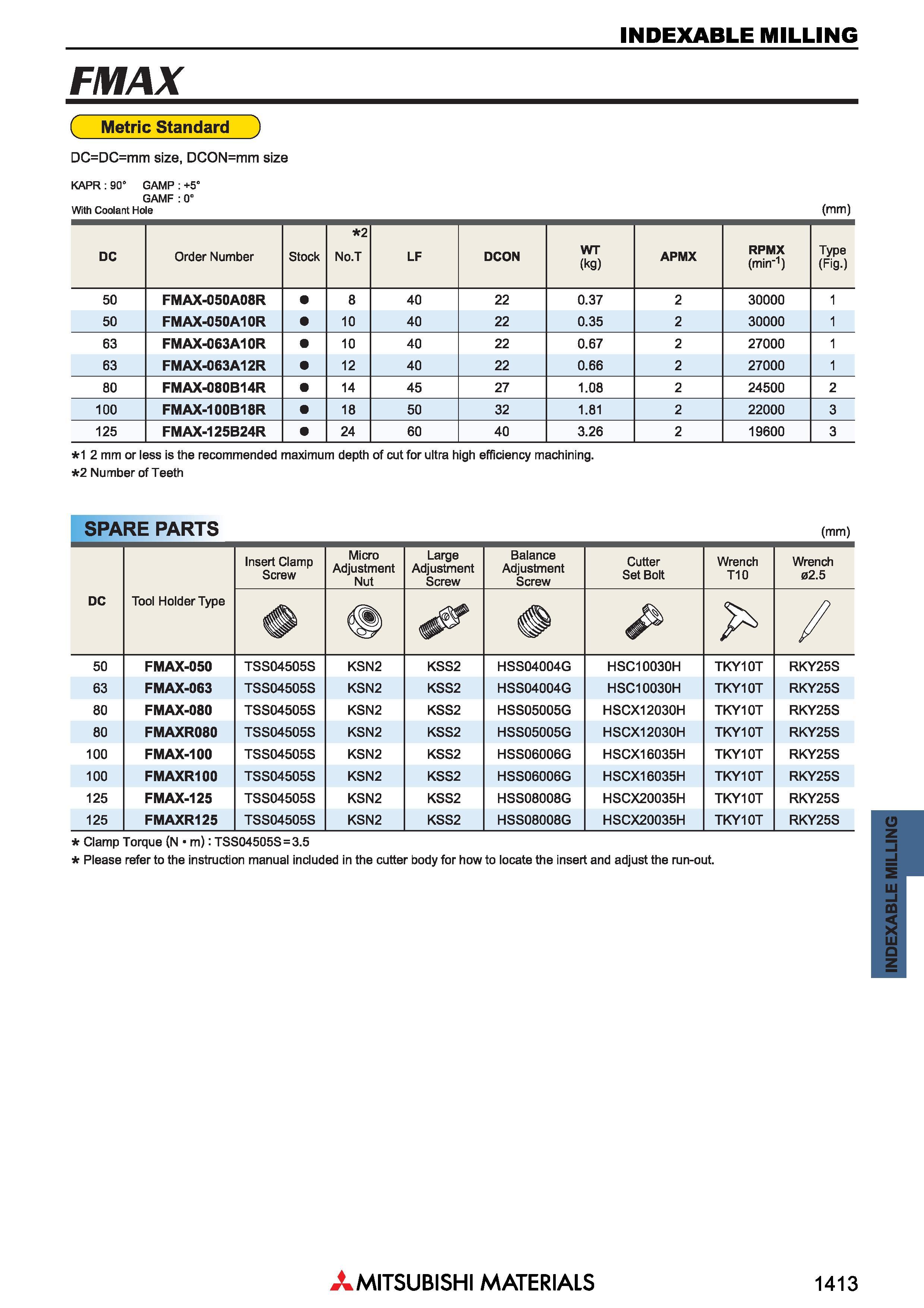

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ FMAX ( Metric Standard ) DC=DC=mm size, DCON=mm size KAPR 90° GAMP +5' GAMF 0' With Coolant Hole (mm) DC Обозначение Order Number Stock 2 No.T LF DCON WT (kg) APMX RPMX (min-1) Type (Fig.) 50 FMAX-050A08R 8 40 22 0.37 2 30000 1 50 FM AX-050A1 OR 10 40 22 0.35 2 30000 1 63 FM AX-063A1 OR 10 40 22 0.67 2 27000 1 63 FM AX-063A12R 12 40 22 0.66 2 27000 1 80 FMAX-080B14R 14 45 27 1.08 2 24500 2 100 FMAX-100B18R 18 50 32 1.81 2 22000 3 125 FM AX-125B24R 24 60 40 3.26 2 19600 3 1 2 mm or less is the recommended maximum depth of cut for ultra high efficiency machining. 2 Количество режущих зубьев Number of Teeth Запасные части для металлорежущего инструмента SPARE PARTS (mm) DC Tool Holder Type Insert Clamp Screw Micro Adjustment Nut Large Adjustment Screw Balance Adjustment Screw Cutter Set Bolt Wrench T10 Wrench 02.5 / 50 FMAX-050 TSS04505S KSN2 KSS2 HSS04004G HSC10030H TKY10T RKY25S 63 F MAX-063 TSS04505S KSN2 KSS2 HSS04004G HSC10030H TKY10T RKY25S 80 F MAX-080 TSS04505S KSN2 KSS2 HSS05005G HSCX12030H TKY10T RKY25S 80 FMAXR080 TSS04505S KSN2 KSS2 HSS05005G HSCX12030H TKY10T RKY25S 100 F MAX-100 TSS04505S KSN2 KSS2 HSS06006G HSCX16035H TKY10T RKY25S 100 FMAXR100 TSS04505S KSN2 KSS2 HSS06006G HSCX16035H TKY10T RKY25S 125 F MAX-125 TSS04505S KSN2 KSS2 HSS08008G HSCX20035H TKY10T RKY25S 125 FMAXR125 TSS04505S KSN2 KSS2 HSS08008G HSCX20035H TKY10T RKY25S Clamp Torque (N m): TSS04505S=3.5 Please refer to the instruction manual included in the cutter body for how to locate the insert and adjust the run-out. Mitsubishi Materials 1413 INDEXABLE MILLING
