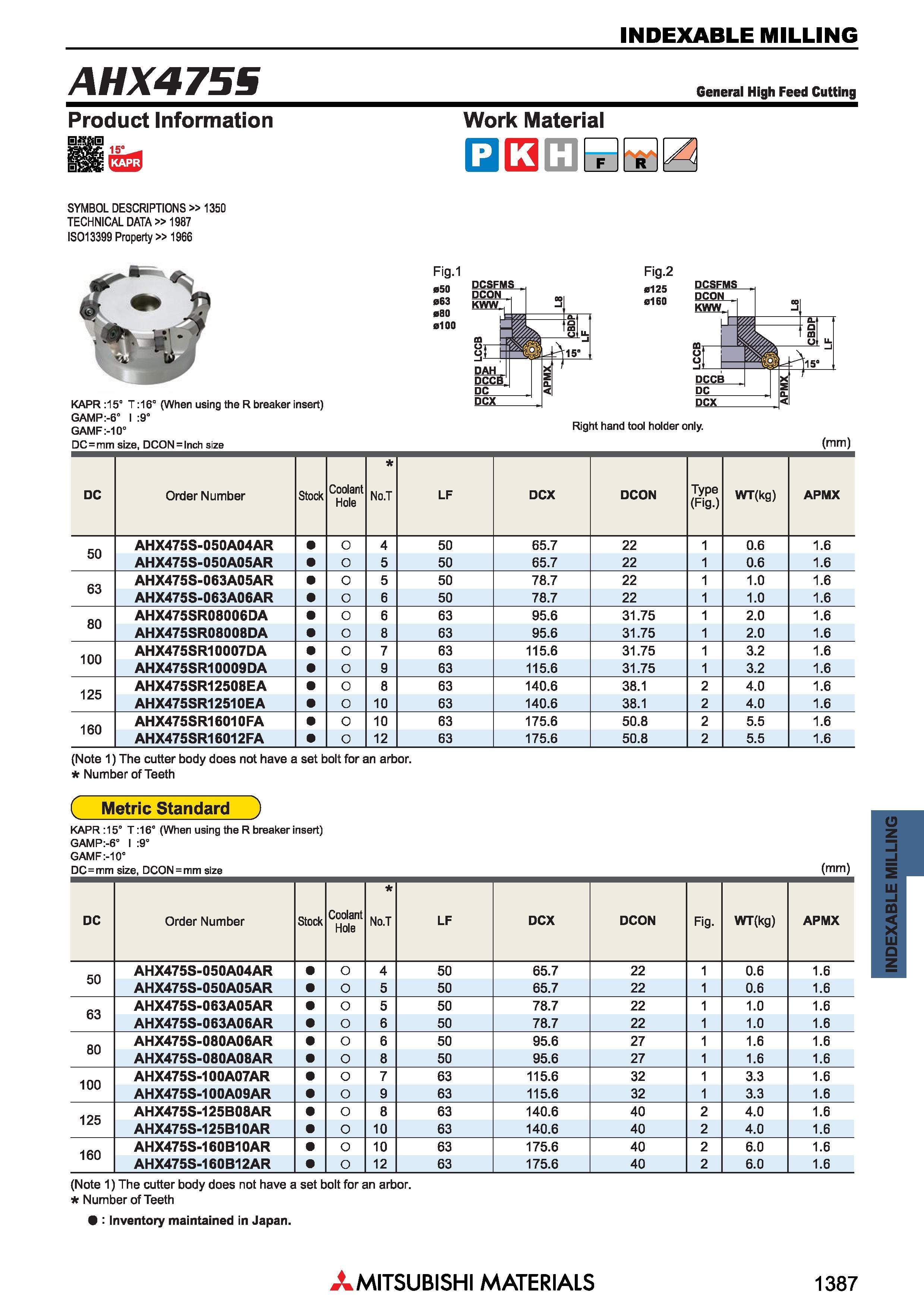

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ AHX475S General High Feed Cutting Product Information Обрабатываемые материалы Work Material UI SYMBOL DESCRIPTIONS 1350 TECHNICAL DATA 1987 ISO 13399 Property 1966 KAPR :15° T :16° (When using the R breaker insert) GAMP:-6° I :9° GAMF:-10° DC = mm size, DCON = Inch size Fig.1 50 063 80 100 DCSFMS DCON . KWW, j 00 -1 O- m y U OQ 1“ m Sj 15 DAH X DCCd DC 0. < DCX Fig.2 125 160 Right hand tool holder only. (mm) c Обозначение Order Number Stock Coolant Hole No.T LF DCX CON Type (Fig.) WT(kg) APMX 50 AHX475S-050A04AR O 4 50 65.7 22 1 0.6 1.6 AHX47SS-050A05AR O 5 50 65.7 22 1 0.6 1.6 63 AHX475S-063A05AR O 5 50 78.7 22 1 1.0 1.6 AHX475S-063A06AR O 6 50 78.7 22 1 1.0 1.6 80 AHX475SR08006DA O 6 63 95.6 31.75 1 2.0 1.6 AHX475SR08008DA O 8 63 95.6 31.75 1 2.0 1.6 100 AHX475SR10007DA O 7 63 115.6 31.75 1 3.2 1.6 AHX475SR10009DA O 9 63 115.6 31.75 1 3.2 1.6 125 AHX475SR12508EA O 8 63 140.6 38.1 2 4.0 1.6 AHX475SR12510EA O 10 63 140.6 38.1 2 4.0 1.6 160 AHX475SR16010FA O 10 63 175.6 50.8 2 5.5 1.6 AHX475SR16012FA O 12 63 175.6 50.8 2 5.5 1.6 (Note 1) The cutter body does not have a set bolt for an arbor. Количество режущих зубьев Number of Teeth ( Metric Standard ) KAPR :15° T:16” (When using the R breaker insert) GAMP:-6° I :9° GAMF:-10” DC=mm size, DCON = mm size (mm) DC Обозначение Order Number Stock Coolant Hole No.T LF DCX DCON Fig. WT(kg) APMX 50 AHX475S-050A04AR O 4 50 65.7 22 1 0.6 1.6 AHX475S-050A05AR O 5 50 65.7 22 1 0.6 1.6 63 AHX475S-063A05AR O 5 50 78.7 22 1 1.0 1.6 AHX475S-063A06AR O 6 50 78.7 22 1 1.0 1.6 80 AHX475S-080A06AR O 6 50 95.6 27 1 1.6 1.6 AHX475S-080A08AR O 8 50 95.6 27 1 1.6 1.6 100 AHX475S-100A07AR O 7 63 115.6 32 1 3.3 1.6 AHX475S-100A09AR O 9 63 115.6 32 1 3.3 1.6 125 AHX475S-125B08AR O 8 63 140.6 40 2 4.0 1.6 AHX475S-125B10AR O 10 63 140.6 40 2 4.0 1.6 160 AHX475S-160B10AR O 10 63 175.6 40 2 6.0 1.6 AHX475S-160B12AR O 12 63 175.6 40 2 6.0 1.6 (Note 1) The cutter body does not have a set bolt for an arbor. Количество режущих зубьев Number of Teeth Inventory maintained in Japan. Mitsubishi Materials 1387 INDEXABLE MILLING
