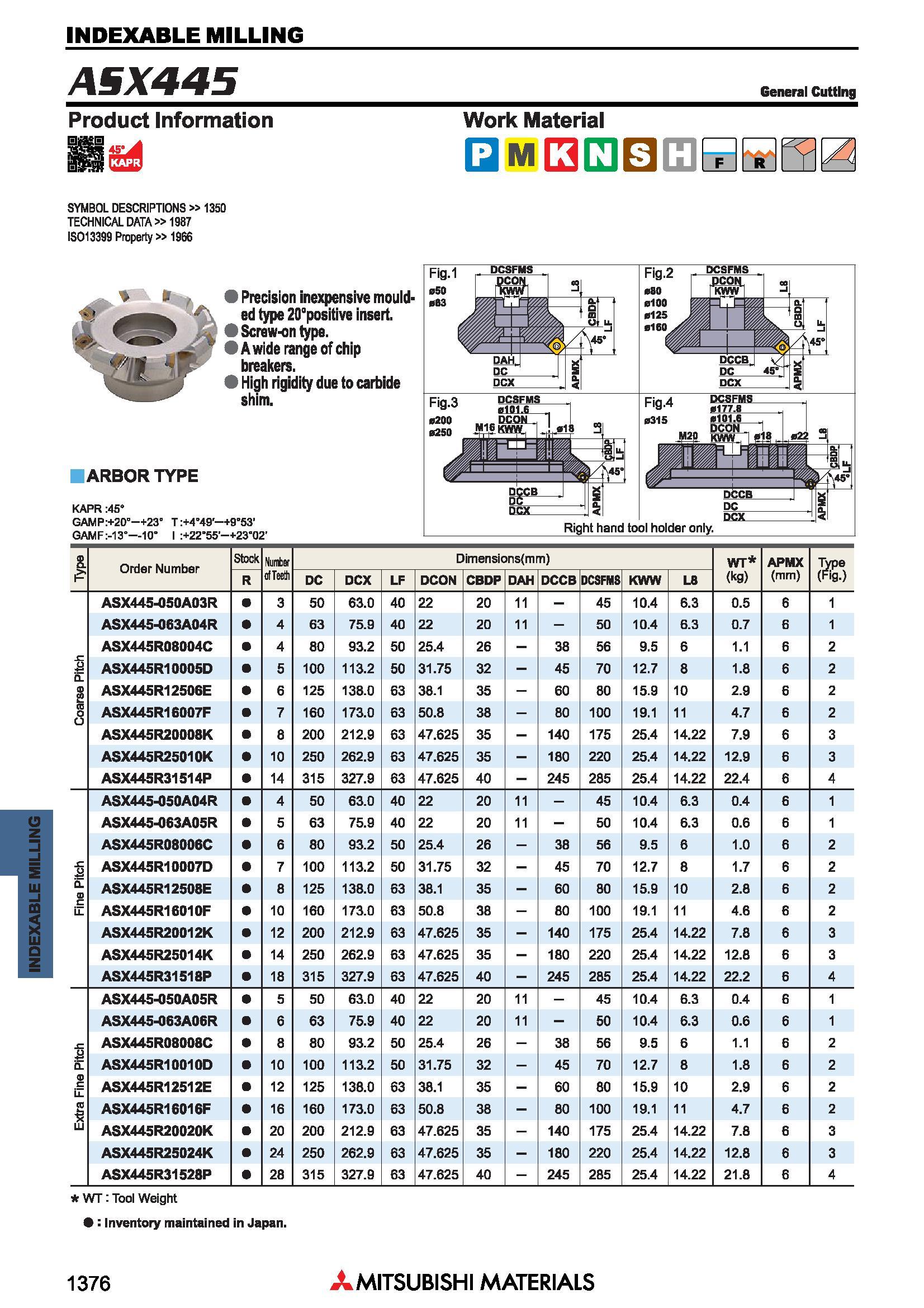

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ ASX445 General Cutting Product Information Обрабатываемые материалы Work Material QM E3 GfJ r SYMBOL DESCRIPTIONS 1350 TECHNICAL DATA 1987 ISO 13399 Property 1966 Precision inexpensive moulded type 20°positive insert. Screw-on type. A wide range of chip breakers. High rigidity due to carbide shim. ARBOR TYPE KAPR :45 GAM P :+20° +23° T :+4'49' +9053’ GAMF:-13° 10° I :+22°55’ +23°02' s. Обозначение Order Number Stock Numbar Dimensions(mm) WT APMX Type £ R of Teeth DC DCX LF DCON CBDP DAH DCCB DCSFMS KWW L8 (kg) (mm) (Fig.) ASX445-050A03R 3 50 63.0 40 22 20 11 - 45 10.4 6.3 0.5 6 1 ASX445-063A04R 4 63 75.9 40 22 20 11 - 50 10.4 6.3 0.7 6 1 ASX445R08004C 4 80 93.2 50 25.4 26 - 38 56 9.5 6 1.1 6 2 £ Q ASX445R1000SD 5 100 113.2 50 31.75 32 - 45 70 12.7 8 1.8 6 2 ASX445R12506E 6 125 138.0 63 38.1 35 - 60 80 15.9 10 2.9 6 2 ro 8 ASX445R16007F 7 160 173.0 63 50.8 38 - 80 100 19.1 11 4.7 6 2 ASX445R20008K 8 200 212.9 63 47.625 35 - 140 175 25.4 14.22 7.9 6 3 ASX445R2501 OK 10 250 262.9 63 47.625 35 - 180 220 25.4 14.22 12.9 6 3 ASX445R31514P 14 315 327.9 63 47.625 40 - 245 285 25.4 14.22 22.4 6 4 ASX445-050A04R 4 50 63.0 40 22 20 11 - 45 10.4 6.3 0.4 6 1 ASX445-063A05R 5 63 75.9 40 22 20 11 - 50 10.4 6.3 0.6 6 1 ASX445R08006C 6 80 93.2 50 25.4 26 - 38 56 9.5 6 1.0 6 2 jj ASX445R10007D 7 100 113.2 50 31.75 32 - 45 70 12.7 8 1.7 6 2 K
