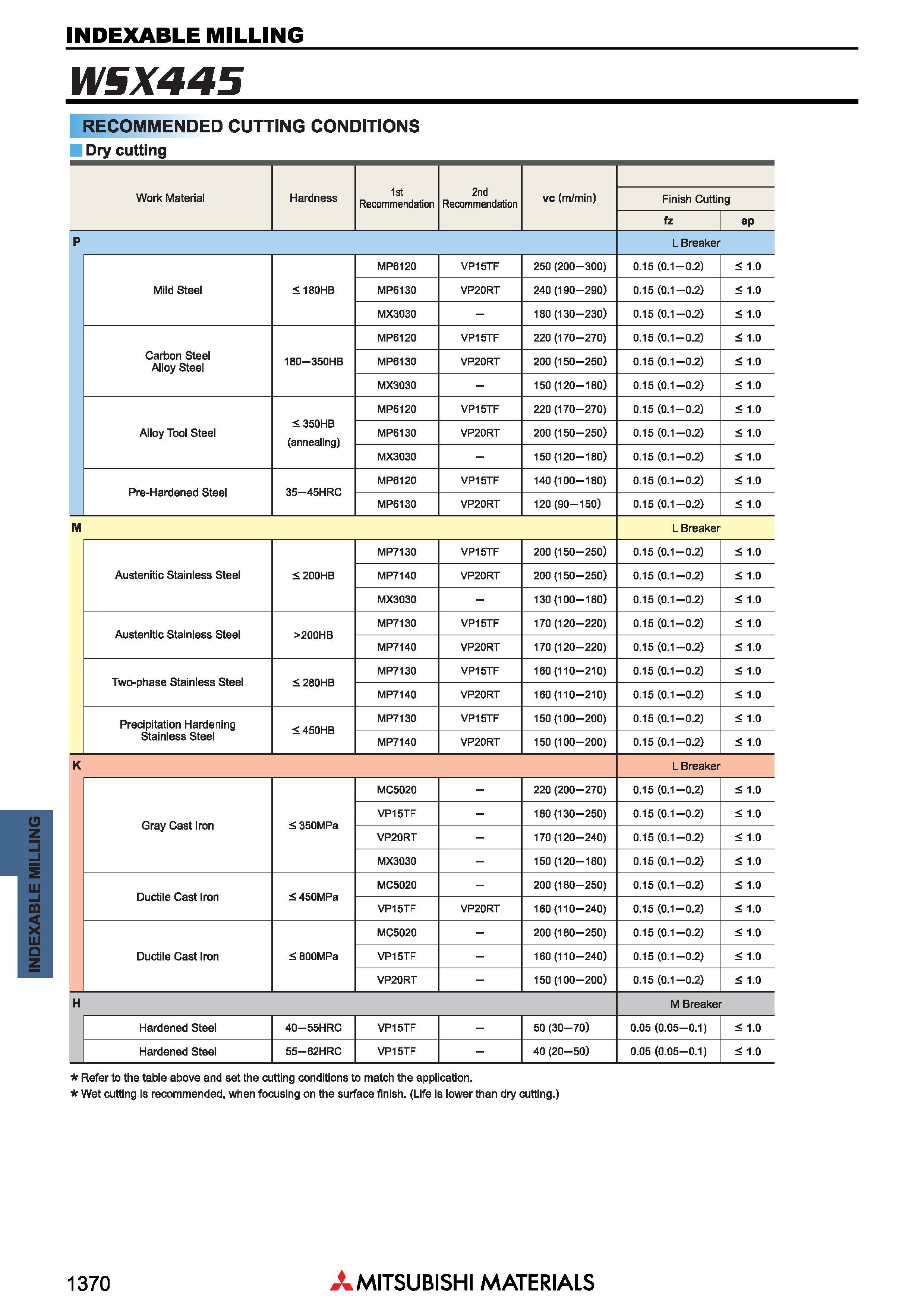

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ WSX445 Рекомендуемые режимы резания при обработке на станке RECOMMENDED CUTTING CONDITIONS Dry cutting Обрабатываемые материалы Work Material Hardness 1st Recommendation 2nd Recommendation vc (m/min) Finish Cutting fz ap P L Breaker MP6120 VP15TF 250 (200-300) 0.15 (0.1-0.2) < 1.0 Mild Steel < 180HB MP6130 VP20RT 240 (190-290) 0.15 (0.1-0.2) < 1.0 MX3030 - 180(130-230) 0.15 (0.1-0.2) < 1.0 MP6120 VP15TF 220 (170-270) 0.15 (0.1-0.2) 1.0 Carbon Steel Alloy Steel 180-350HB MP6130 VP20RT 200 (150-250) 0.15 (0.1-0.2) 1.0 MX3030 - 150(120-180) 0.15 (0.1-0.2) < 1.0 < 350HB (annealing) MP6120 VP15TF 220 (170-270) 0.15 (0.1-0.2) < 1.0 Alloy Tool Steel MP6130 VP20RT 200 (150-250) 0.15 (0.1-0.2) < 1.0 MX3030 - 150(120-180) 0.15 (0.1-0.2) 1.0 Pre-Hardened Steel 35 45HRC MP6120 VP15TF 140(100-180) 0.15 (0.1-0.2) 1.0 MP6130 VP20RT 120 (90-150) 0.15 (0.1-0.2) < 1.0 M L Breaker MP7130 VP15TF 200 (150-250) 0.15 (0.1-0.2) < 1.0 Austenitic Stainless Steel < 200HB MP7140 VP20RT 200 (150-250) 0.15 (0.1-0.2) < 1.0 MX3030 - 130(100-180) 0.15 (0.1-0.2) 1.0 Austenitic Stainless Steel >200HB MP7130 VP15TF 170(120-220) 0.15 (0.1-0.2) < 1.0 MP7140 VP20RT 170(120-220) 0.15 (0.1-0.2) < 1.0 Two-phase Stainless Steel < 280HB MP7130 VP15TF 160(110-210) 0.15 (0.1-0.2) < 1.0 MP7140 VP20RT 160(110-210) 0.15 (0.1-0.2) < 1.0 Precipitation Hardening 450HB MP7130 VP15TF 150(100-200) 0.15 (0.1-0.2) 1.0 Stainless Steel MP7140 VP20RT 150(100-200) 0.15 (0.1-0.2) 1.0 K L Breaker MC5020 - 220 (200-270) 0.15 (0.1-0.2) < 1.0 Gray Cast Iron < 350MPa VP15TF - 180(130-250) 0.15 (0.1-0.2) < 1.0 VP20RT - 170(120-240) 0.15 (0.1-0.2) 1.0 MX3030 - 150(120-180) 0.15 (0.1-0.2) 1.0 Ductile Cast Iron < 450MPa MC5020 - 200 (180-250) 0.15 (0.1-0.2) < 1.0 VP15TF VP20RT 160(110-240) 0.15 (0.1-0.2) < 1.0 MC5020 - 200 (180-250) 0.15 (0.1-0.2) < 1.0 Ductile Cast Iron < 800MPa VP15TF - 160(110-240) 0.15 (0.1-0.2) < 1.0 VP20RT - 150(100-200) 0.15 (0.1-0.2) 1.0 H M Breaker Hardened Steel 40 55HRC VP15TF - 50 (30-70) 0.05 (0.05-0.1) < 1.0 Hardened Steel 55 62HRC VP15TF - 40 (20-50) 0.05 (0.05-0.1) < 1.0 Refer to the table above and set the cutting conditions to match the application. Wet cutting is recommended, when focusing on the surface finish. (Life Is lower than dry cutting.) 1370 Mitsubishi Materials
