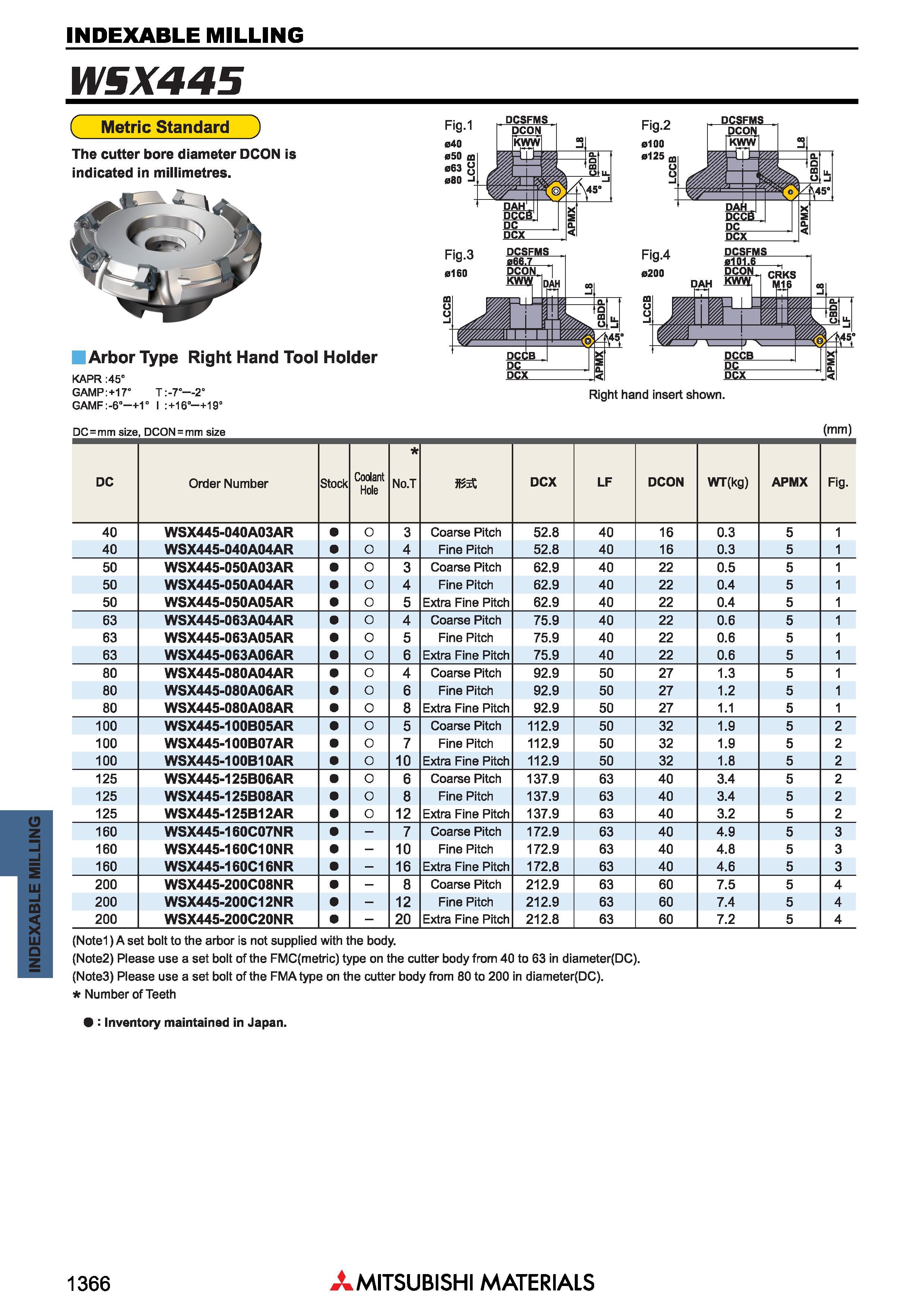

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ WSX445 ( Metric Standard ) The cutter bore diameter DCON is indicated in millimetres. Arbor Type Right Hand Tool Holder KAPR :45° GAMP:+17° T :-7° 2° GAMF :-6° +1° I :+16°-+19° DC = mm size, DCON = mm size (mm) DC Обозначение Order Number Stock Coolant Hole No.T ms, DCX LF DCON WT(kg) APMX Fig. 40 WSX445-040A03AR O 3 Coarse Pitch 52.8 40 16 0.3 5 1 40 WSX445-040A04AR O 4 Fine Pitch 52.8 40 16 0.3 5 1 50 WSX445-050A03AR O 3 Coarse Pitch 62.9 40 22 0.5 5 1 50 WSX445-050A04AR O 4 Fine Pitch 62.9 40 22 0.4 5 1 50 WSX445-050A05AR O 5 Extra Fine Pitch 62.9 40 22 0.4 5 1 63 WSX445-063A04AR O 4 Coarse Pitch 75.9 40 22 0.6 5 1 63 WSX445-063A05AR O 5 Fine Pitch 75.9 40 22 0.6 5 1 63 WSX445-063A06AR O 6 Extra Fine Pitch 75.9 40 22 0.6 5 1 80 WSX445-080A04AR O 4 Coarse Pitch 92.9 50 27 1.3 5 1 80 WSX445-080A06AR O 6 Fine Pitch 92.9 50 27 1.2 5 1 80 WSX445-080A08AR O 8 Extra Fine Pitch 92.9 50 27 1.1 5 1 100 WSX445-100B05AR O 5 Coarse Pitch 112.9 50 32 1.9 5 2 100 WSX445-100B07AR O 7 Fine Pitch 112.9 50 32 1.9 5 2 100 WSX445-100B1 OAR O 10 Extra Fine Pitch 112.9 50 32 1.8 5 2 125 WSX445-125B06AR O 6 Coarse Pitch 137.9 63 40 3.4 5 2 125 WSX445-125B08AR O 8 Fine Pitch 137.9 63 40 3.4 5 2 125 WSX445-125B12AR O 12 Extra Fine Pitch 137.9 63 40 3.2 5 2 160 WSX445-160C07N R - 7 Coarse Pitch 172.9 63 40 4.9 5 3 160 WSX445-160C10NR - 10 Fine Pitch 172.9 63 40 4.8 5 3 160 WSX445-160C16NR - 16 Extra Fine Pitch 172.8 63 40 4.6 5 3 200 WSX445-200C08N R - 8 Coarse Pitch 212.9 63 60 7.5 5 4 200 WSX445-200C12 N R - 12 Fine Pitch 212.9 63 60 7.4 5 4 200 WSX445-200C20N R - 20 Extra Fine Pitch 212.8 63 60 7.2 5 4 (Notel) A set bolt to the arbor is not supplied with the body. (Note2) Please use a set bolt of the FMC(metric) type on the cutter body from 40 to 63 in diameter(DC). (Note3) Please use a set bolt of the FMAtype on the cutter body from 80 to 200 in diameter(DC). Количество режущих зубьев Number of Teeth Inventory maintained in Japan. Right hand insert shown. 1366 Mitsubishi Materials
