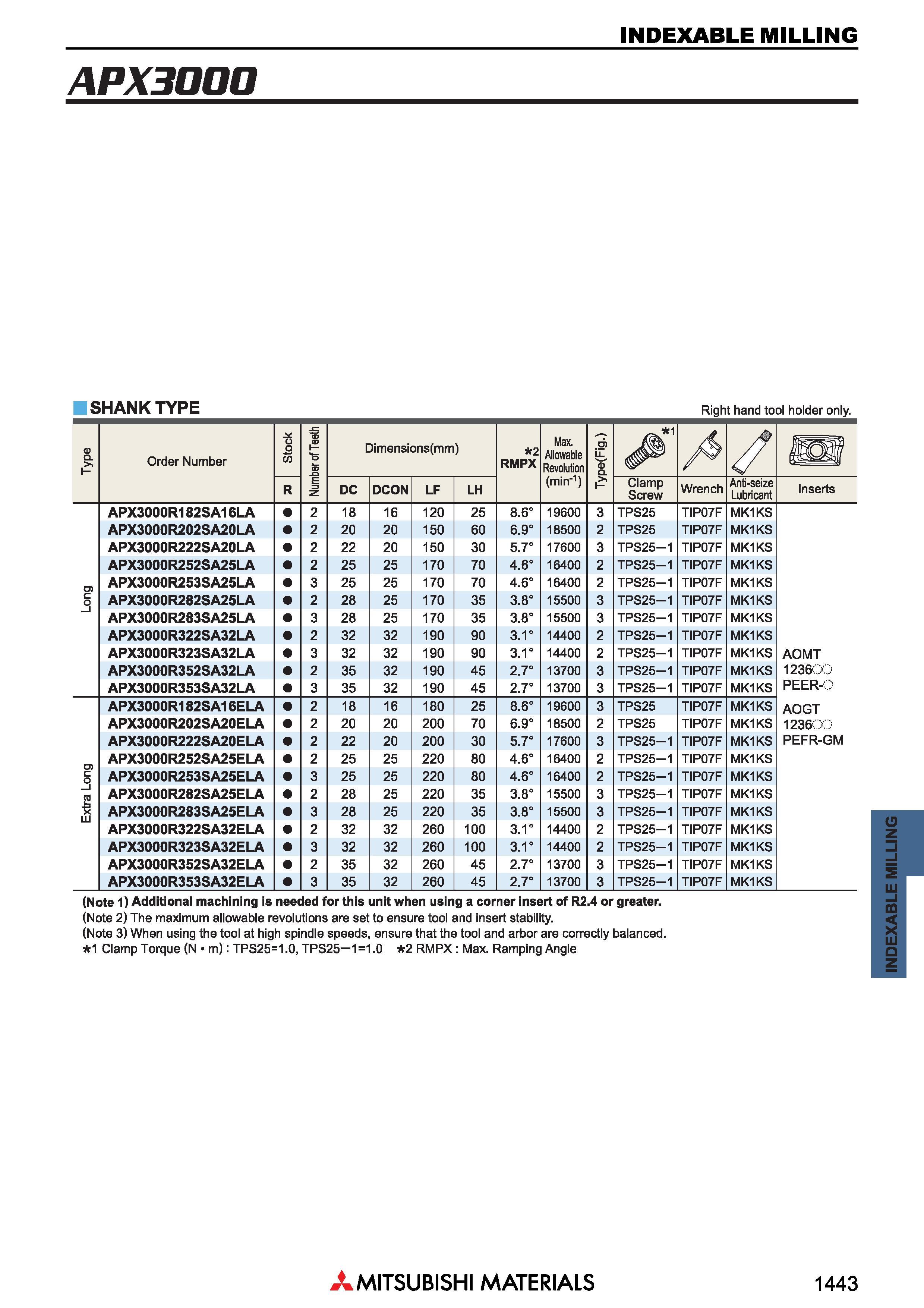

APX3000 Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ SHANK TYPE Right hand tool holder only. Type Обозначение Order Number Stock I Количество режущих зубьев Number of Teeth I Dimensions(mm) 2 RMPX Max. Allowable Revolution (min"1) Type(Fig.) 353 R DC DCON LF LH Clamp Screw Wrench Anti-seize Lubricant Inserts APX3000R182SA16LA 2 18 16 120 25 8.6° 19600 3 TPS25 TIP07F MK1KS APX3000R202SA20LA 2 20 20 150 60 6.9“ 18500 2 TPS25 TIP07F MK1KS APX3000R222SA20LA 2 22 20 150 30 5.7° 17600 3 TPS25-1 TIP07F MK1KS APX3000R252SA25LA 2 25 25 170 70 4.6° 16400 2 TPS25-1 TIP07F MK1KS O) APX3000R253SA25LA 3 25 25 170 70 4.6“ 16400 2 TPS25-1 TIP07F MK1KS c o APX3000R282SA25LA 2 28 25 170 35 3.8“ 15500 3 TPS25-1 TIP07F MK1KS APX3000R283SA25LA 3 28 25 170 35 0 CO CO 15500 3 TPS25-1 TIP07F MK1KS APX3000R322SA32LA 2 32 32 190 90 3.1“ 14400 2 TPS25-1 TIP07F MK1KS APX3000R323SA32LA 3 32 32 190 90 3.1“ 14400 2 TPS25-1 TIP07F MK1KS AOMT APX3000R352SA32LA 2 35 32 190 45 2.7“ 13700 3 TPS25-1 TIP07F MK1KS 123600 APX3000R353SA32LA 3 35 32 190 45 2.7“ 13700 3 TPS25-1 TIP07F MK1KS PEER-: APX3000R182SA16ELA 2 18 16 180 25 8.6“ 19600 3 TPS25 TIP07F MK1KS AOGT APX3000R202SA20ELA 2 20 20 200 70 6.9“ 18500 2 TPS25 TIP07F MK1KS 123600 APX3000R222SA20ELA 2 22 20 200 30 5.7“ 17600 3 TPS25-1 TIP07F MK1KS PEFR-GM APX3000R252SA25ELA 2 25 25 220 80 0 co Tf- 16400 2 TPS25-1 TIP07F MK1KS c o APX3000R253SA25ELA 3 25 25 220 80 4.6“ 16400 2 TPS25-1 TIP07F MK1KS 1 2 APX3000R282SA25ELA 2 28 25 220 35 o CO CO 15500 3 TPS25-1 TIP07F MK1KS >< LU APX3000R283SA25ELA 3 28 25 220 35 0 00 CO 15500 3 TPS25-1 TIP07F MK1KS APX3000R322SA32ELA 2 32 32 260 100 3.1“ 14400 2 TPS25-1 TIP07F MK1KS APX3000R323SA32ELA 3 32 32 260 100 3.1“ 14400 2 TPS25-1 TIP07F MK1KS APX3000R352SA32ELA 2 35 32 260 45 2.7“ 13700 3 TPS25-1 TIP07F MK1KS APX3000R353SA32ELA 3 35 32 260 45 2.7“ 13700 3 TPS25-1 TIP07F MK1KS (Note 1) Additional machining is needed for this unit when using a corner insert of R2.4 or greater. (Note 2) The maximum allowable revolutions are set to ensure tool and insert stability. (Note 3) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced. 1 Clamp Torque (N m): TPS25=1.0, TPS25 1=1.0 2 RMPX Max. Ramping Angle Mitsubishi Materials 1443 INDEXABLE MILLING
