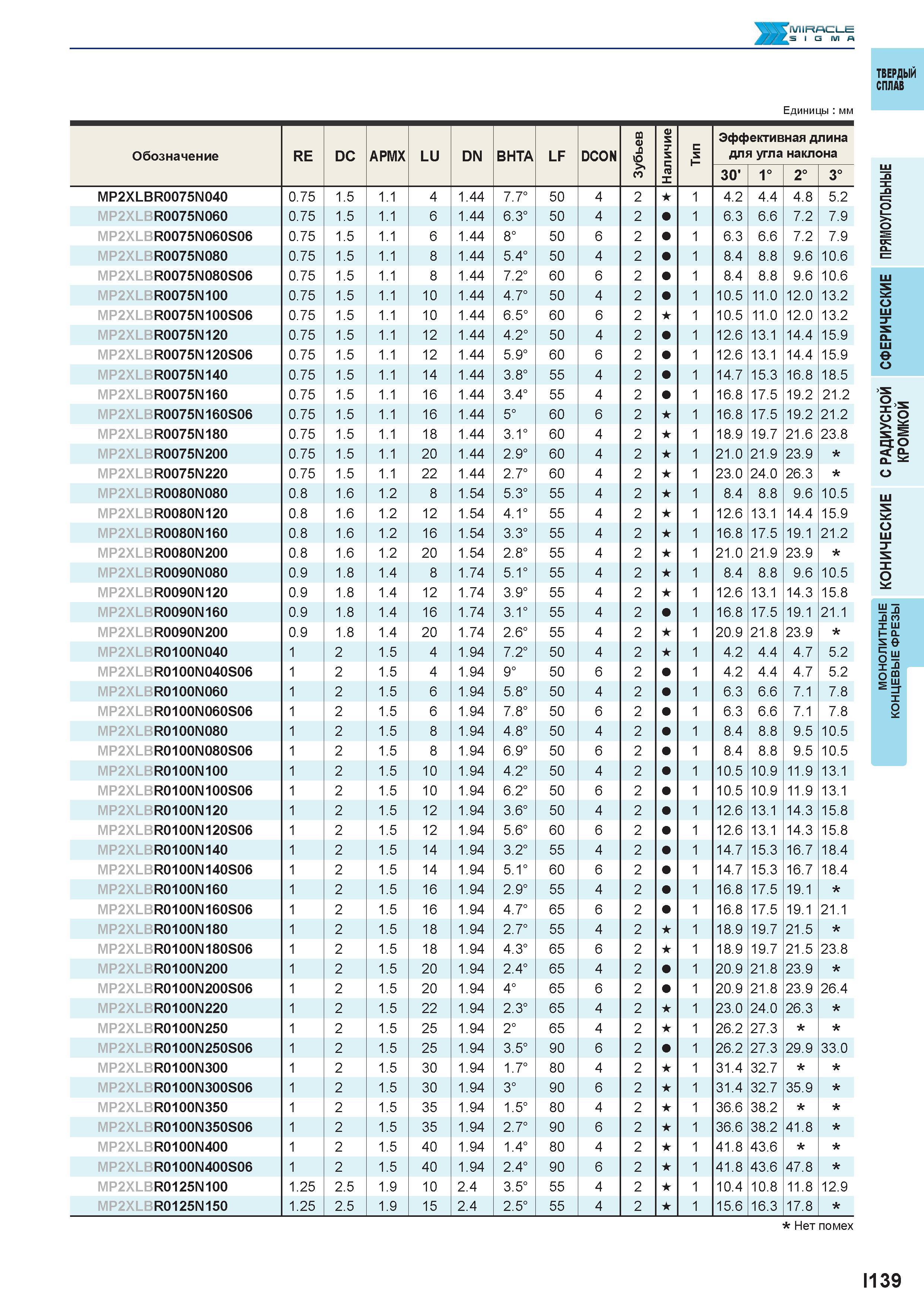

691 Каталог MITSUBISHI 2016 Вращающийся и токарный режущий инструмент Стр.I139

Каталог MITSUBISHI 2016 Станочный режущий инструмент Стр. I139 0691 Lab2u

.MIRACLE Твердый сплав Единицы мм Обозначение RE DC APMX LU DN BHTA LF DCON m О) .0 б > <и и X и е; га X с и Эффективная длина для угла наклона 30' 1° 2° 3° MP2XLBR0075N040 0.75 1.5 1.1 4 1.44 7.7° 50 4 2 1 4.2 4.4 4.8 5.2 MP2XLBR0075N060 0.75 1.5 1.1 6 1.44 6. 3 о 50 4 2 1 6.3 6.6 7.2 7.9 MP2XLBR0075N060S06 0.75 1.5 1.1 6 1.44 8° 50 6 2 1 6.3 6.6 7.2 7.9 MP2XLBR0075N080 0.75 1.5 1.1 8 1.44 5. 4 о 50 4 2 1 8.4 .8 8. 9.6 10.6 MP2XLBR0075N080S06 0.75 1.5 1.1 8 1.44 7. 2 о 60 6 2 1 8.4 .8 8. 9.6 10.6 MP2XLBR0075N100 0.75 1.5 1.1 10 1.44 4. 7 о 50 4 2 1 10.5 11.0 12.0 13.2 MP2XLBR0075N100S06 0.75 1.5 1.1 10 1.44 6. 5 о 60 6 2 1 10.5 11.0 12.0 13.2 MP2XLBR0075N120 0.75 1.5 1.1 12 1.44 4. 2 о 50 4 2 1 12.6 13.1 14.4 15.9 MP2XLBR0075N120S06 0.75 1.5 1.1 12 1.44 5. 9 о 60 6 2 1 12.6 13.1 14.4 15.9 MP2XLBR0075N140 0.75 1.5 1.1 14 1.44 3. 8 о 55 4 2 1 14.7 15.3 16.8 18.5 MP2XLBR0075N160 0.75 1.5 1.1 16 1.44 3. 4 о 55 4 2 1 16.8 17.5 19.2 21.2 MP2XLBR0075N160S06 0.75 1.5 1.1 16 1.44 5° 60 6 2 1 16.8 17.5 19.2 21.2 MP2XLBR0075N180 0.75 1.5 1.1 18 1.44 3.1° 60 4 2 1 18.9 19.7 21.6 23.8 MP2XLBR0075N200 0.75 1.5 1.1 20 1.44 2. 9 о 60 4 2 1 21.0 21.9 23.9 MP2XLBR0075N220 0.75 1.5 1.1 22 1.44 2. 7 о 60 4 2 1 23.0 24.0 26.3 MP2XLBR0080N080 0.8 1.6 1.2 8 1.54 5. 3 о 55 4 2 1 8.4 .8 8. 9.6 10.5 MP2XLBR0080N120 0.8 1.6 1.2 12 1.54 4.1° 55 4 2 1 12.6 13.1 14.4 15.9 MP2XLBR0080N160 0.8 1.6 1.2 16 1.54 3. 3 о 55 4 2 1 16.8 17.5 19.1 21.2 MP2XLBR0080N200 0.8 1.6 1.2 20 1.54 2. 8 о 55 4 2 1 21.0 21.9 23.9 MP2XLBR0090N080 0.9 1.8 1.4 8 1.74 5.1° 55 4 2 1 8.4 .8 8. 9.6 10.5 MP2XLBR0090N120 0.9 1.8 1.4 12 1.74 3. 9 о 55 4 2 1 12.6 13.1 14.3 15.8 MP2XLBR0090N160 0.9 1.8 1.4 16 1.74 3.1° 55 4 2 1 16.8 17.5 19.1 21.1 MP2XLBR0090N200 0.9 1.8 1.4 20 1.74 2. 6 о 55 4 2 1 20.9 21.8 23.9 MP2XLBR0100N040 1 2 1.5 4 1.94 7. 2 о 50 4 2 1 4.2 4.4 4.7 5.2 MP2XLBR0100N040S06 1 2 1.5 4 1.94 9° 50 6 2 1 4.2 4.4 4.7 5.2 MP2XLBR0100N060 1 2 1.5 6 1.94 5. 8 о 50 4 2 1 6.3 6.6 7.1 7.8 MP2XLBR0100N060S06 1 2 1.5 6 1.94 7. 8 о 50 6 2 1 6.3 6.6 7.1 7.8 MP2XLBR0100N080 1 2 1.5 8 1.94 4. 8 о 50 4 2 1 8.4 .8 8. 9.5 10.5 MP2XLBR0100N080S06 1 2 1.5 8 1.94 6. 9 о 50 6 2 1 8.4 .8 8. 9.5 10.5 MP2XLBR0100N100 1 2 1.5 10 1.94 4. 2 о 50 4 2 1 10.5 10.9 11.9 13.1 MP2XLBR0100N100S06 1 2 1.5 10 1.94 6. 2 о 50 6 2 1 10.5 10.9 11.9 13.1 MP2XLBR0100N120 1 2 1.5 12 1.94 3. 6 о 50 4 2 1 12.6 13.1 14.3 15.8 MP2XLBR0100N120S06 1 2 1.5 12 1.94 5. 6 о 60 6 2 1 12.6 13.1 14.3 15.8 MP2XLBR0100N140 1 2 1.5 14 1.94 3. 2 о 55 4 2 1 14.7 15.3 16.7 18.4 MP2XLBR0100N140S06 1 2 1.5 14 1.94 5.1° 60 6 2 1 14.7 15.3 16.7 18.4 MP2XLBR0100N160 1 2 1.5 16 1.94 2. 9 о 55 4 2 1 16.8 17.5 19.1 MP2XLBR0100N160S06 1 2 1.5 16 1.94 4. 7 о 65 6 2 1 16.8 17.5 19.1 21.1 MP2XLBR0100N180 1 2 1.5 18 1.94 2. 7 о 55 4 2 1 18.9 19.7 21.5 MP2XLBR0100N180S06 1 2 1.5 18 1.94 4. 3 о 65 6 2 1 18.9 19.7 21.5 23.8 MP2XLBR0100N200 1 2 1.5 20 1.94 2. 4 о 65 4 2 1 20.9 21.8 23.9 MP2XLBR0100N200S06 1 2 1.5 20 1.94 4° 65 6 2 1 20.9 21.8 23.9 26.4 MP2XLBR0100N220 1 2 1.5 22 1.94 2. 3 о 65 4 2 1 23.0 24.0 26.3 MP2XLBR0100N250 1 2 1.5 25 1.94 2° 65 4 2 1 26.2 27.3 MP2XLBR0100N250S06 1 2 1.5 25 1.94 3. 5 о 90 6 2 1 26.2 27.3 29.9 33.0 MP2XLBR0100N300 1 2 1.5 30 1.94 1.7° 80 4 2 1 31.4 32.7 MP2XLBR0100N300S06 1 2 1.5 30 1.94 3° 90 6 2 1 31.4 32.7 35.9 MP2XLBR0100N350 1 2 1.5 35 1.94 1.5° 80 4 2 1 36.6 38.2 MP2XLBR0100N350S06 1 2 1.5 35 1.94 2. 7 о 90 6 2 1 36.6 38.2 41.8 MP2XLBR0100N400 1 2 1.5 40 1.94 1.4° 80 4 2 1 41.8 43.6 MP2XLBR0100N400S06 1 2 1.5 40 1.94 2. 4 о 90 6 2 1 41.8 43.6 47.8 MP2XLBR0125N100 1.25 2.5 1.9 10 2.4 3. 5 о 55 4 2 1 10.4 10.8 11.8 12.9 MP2XLBR0125N150 1.25 2.5 1.9 15 2.4 2.5° 55 4 2 1 15.6 16.3 17.8 i < °- £ i>= о S Шл со х I- о. Iе °т I О Нет помех I139
