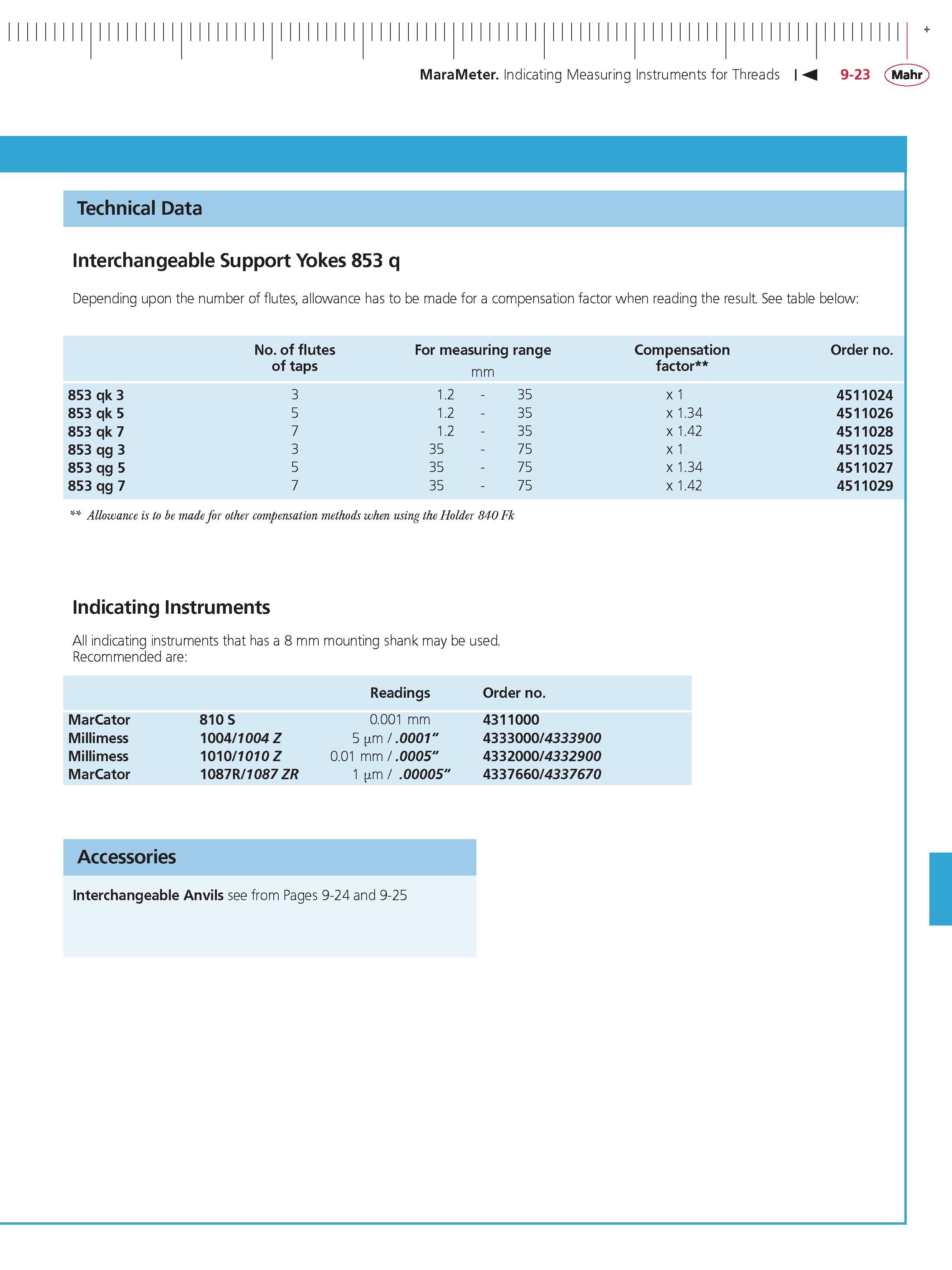

Technical Data Interchangeable Support Yokes 853 q Depending upon the number of flutes allowance has to be made for a compensation factor when reading the result. See table below No. of flutes For measuring range Compensation Order no. of taps mm factor 853 qk 3 3 1.2 - 35 x 1 4511024 853 qk 5 5 1.2 - 35 x 1.34 4511026 853 qk 7 7 1.2 - 35 x 1.42 4511028 853 qg 3 3 35 - 75 x 1 4511025 853 qg 5 5 35 - 75 x 1.34 4511027 853 qg 7 7 35 - 75 x 1.42 4511029 Allowance is to be made for other compensation methods when using the Holder 840 Fk Indicating Instruments All indicating instruments that has a 8 mm mounting shank may be used. Recommended are Readings Order no. MarCator 810 S 0.001 mm 4311000 Millimess 1004 1004 Z 5 m .0001" 4333000 4333900 Millimess 1010 1010 Z 0.01 mm .0005" 4332000 4332900 MarCator 1087R 1087 ZR 1 m .00005" 4337660 4337670 Accessories Interchangeable Anvils see from Pages 9-24 and 9-25
