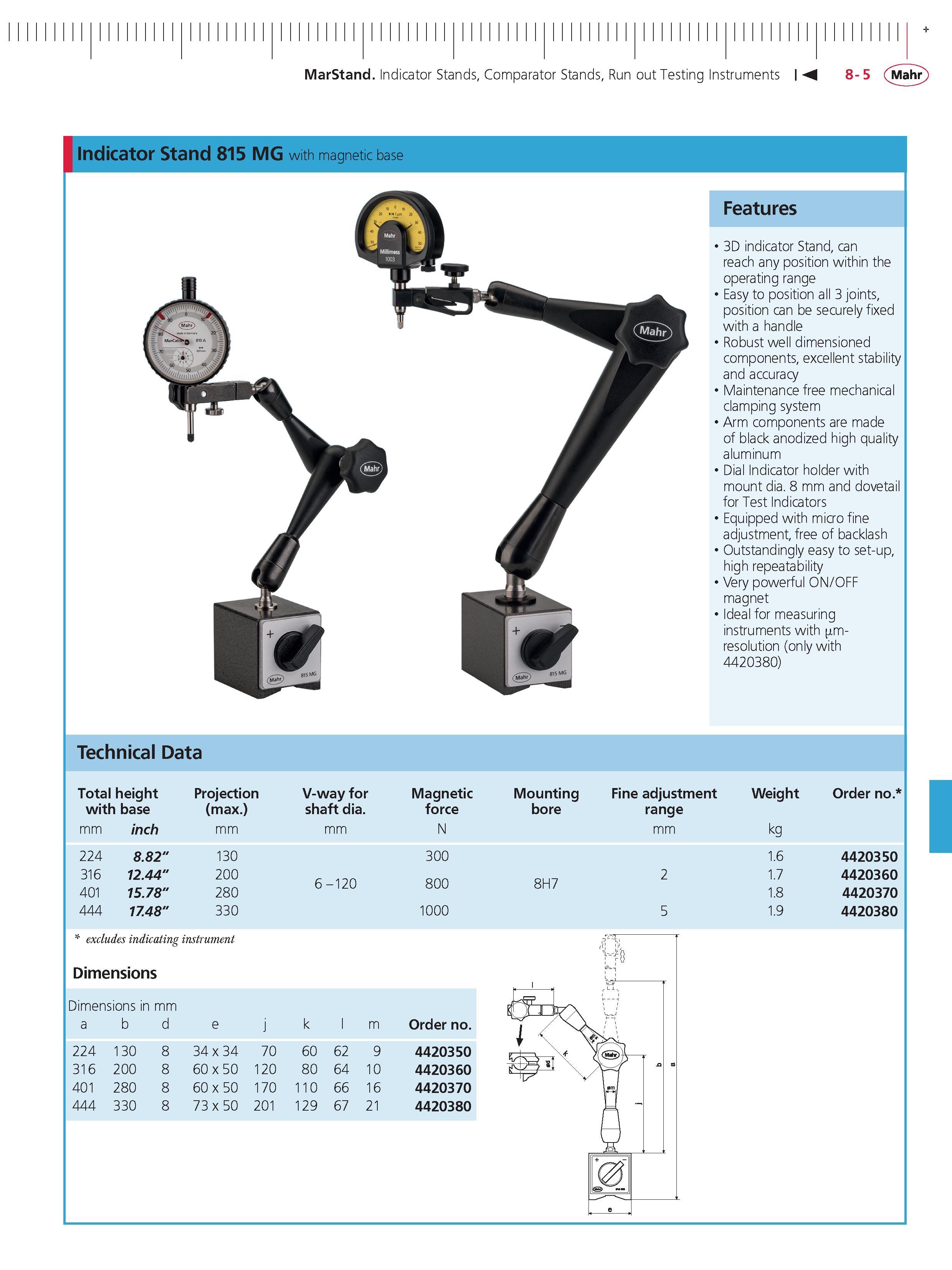

MarStand Indicator Stands Comparator Stands Run out Testing Instruments M 8-5 Mahr Indicator Stand 815 MG with magnetic Features 3D indicator Stand can reach any position within the operating range Easy to position all 3 joints position can be securely fixed with a handle Robust well dimensioned components excellent stability and accuracy Maintenance free mechanical clamping system Arm components are made of black anodized high quality aluminum Dial Indicator holder with mount dia. 8 mm and dovetail for Test Indicators Equipped with micro fine adjustment free of backlash Outstandingly easy to set-up high repeatability Very powerful ON/OFF magnet Ideal for measuring instruments with m-resolution (only with 4420380) Technical Data Total height with base Projection (max.) V-way for shaft dia. Magnetic force Mounting bore Fine adjustment range Weight Order no. mm inch mm mm N mm kg 224 8.82" 130 300 1.6 4420350 316 12.44" 200 0 2 7 6 800 8H7 2 1.7 4420360 401 15.78" 280 1.8 4420370 444 17.48" 330 1000 5 1.9 4420380 excludes indicating instrument Dimensions Dimensions in mm a b d e j k l m Order no. 224 130 8 34 x 34 70 60 62 9 4420350 316 200 8 60 x 50 120 80 64 10 4420360 401 280 8 60 x 50 170 110 66 16 4420370 444 330 8 73 x 50 201 129 67 21 4420380 +
