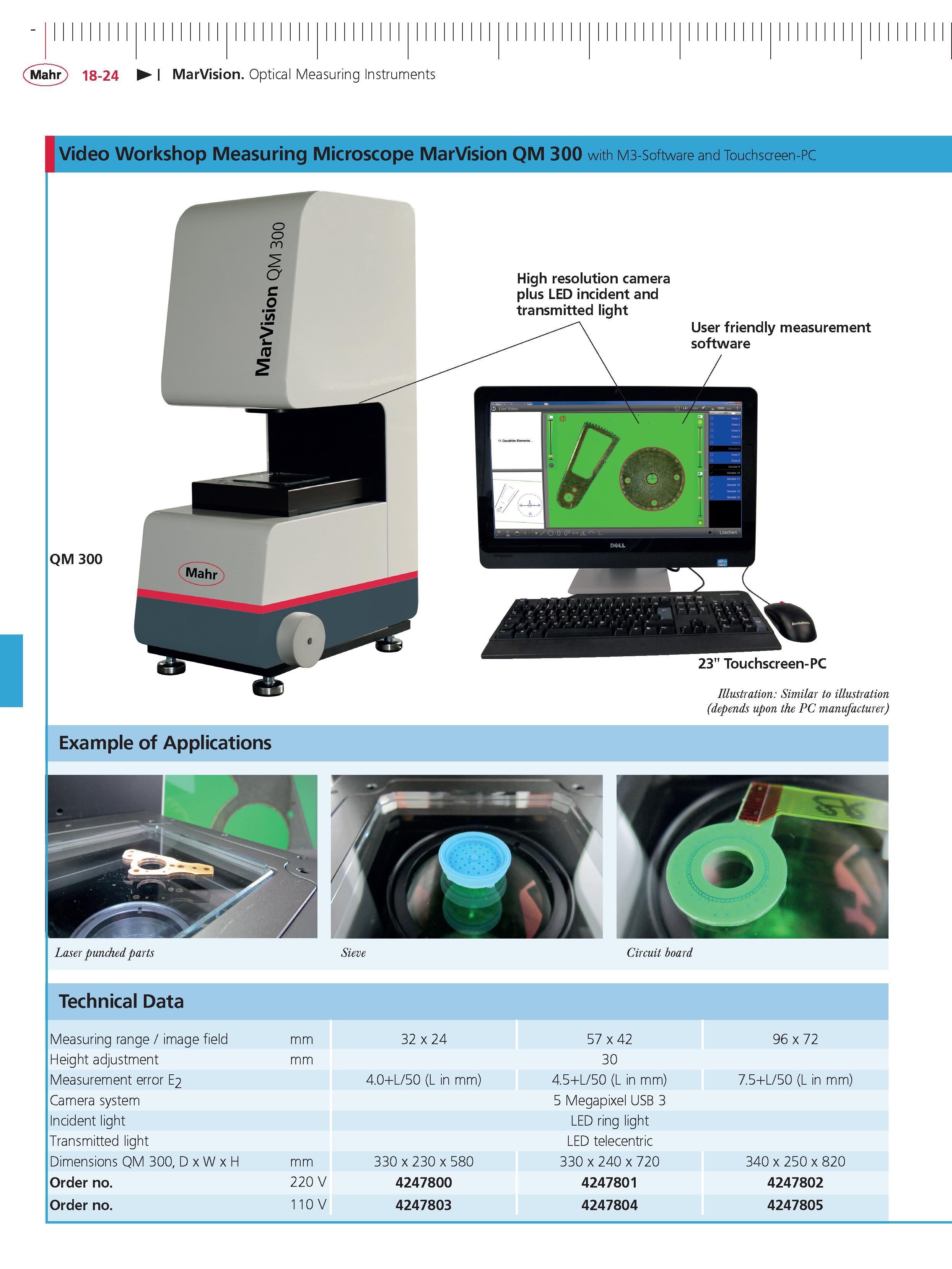

Mahr 18-24 MarVision Optical Measuring Instruments Video Workshop Measuring Microscope MarVision QM 300 with M3-software and Touchscreen-pc no High resolution camera plus LED incident and transmitted light Example of Applications Laser punched parts Sieve Circuit board Technical data Measuring range image field mm 32 x 24 57 x 42 96x72 Height adjustment mm 30 Measurement error E2 4.0+L 50 (L in mm) 4.5+L 50 (L in mm) 7.5+L 50 (L in mm) Camera system 5 Megapixel UsB 3 Incident light LED ring light Transmitted light LED telecentric Dimensions QM 300 D x W x H mm 330 x 230 x 580 330 x 240 x 720 340 x 250 x 820 Order no. 220 V 4247800 4247801 4247802 Order no. 110 V 4247803 4247804 4247805
