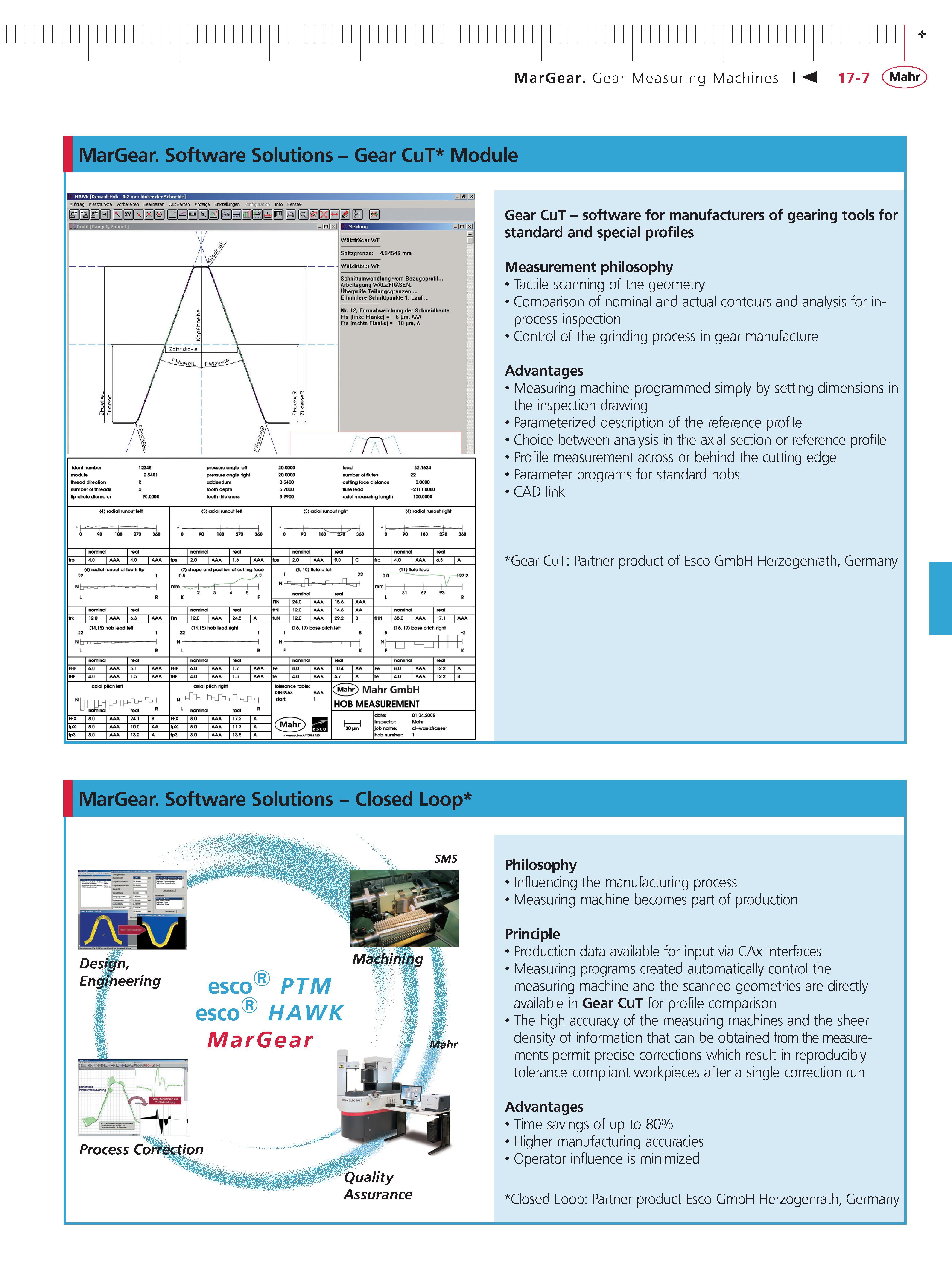

MarGear Gear Measuring Machines 17-7 Mahr MarGear Software Solutions - Gear CuT Module Gear CuT - software for manufacturers of gearing tools for standard and special profiles Measurement philosophy Tactile scanning of the geometry Comparison of nominal and actual contours and analysis for inprocess inspection Control of the grinding process in gear manufacture Advantages Measuring machine programmed simply by setting dimensions in the inspection drawing Parameterized description of the reference profile Choice between analysis in the axial section or reference profile Profile measurement across or behind the cutting edge Parameter programs for standard hobs CAD link Gear CuT Partner product of Esco GmbH Herzogenrath Germany MarGear Software Solutions - Closed Loop SMS esco PTM esco HAWK MarGear a' 1 i 1 s Process Correction Quality Assurance Philosophy Influencing the manufacturing process Measuring machine becomes part of production Principle Production data available for input via CAx interfaces Measuring programs created automatically control the measuring machine and the scanned geometries are directly available in Gear CuT for profile comparison The high accuracy of the measuring machines and the sheer density of information that can be obtained from the measurements permit precise corrections which result in reproducibly tolerance-compliant workpieces after a single correction run Advantages Time savings of up to 80% Higher manufacturing accuracies Operator influence is minimized Closed Loop Partner product Esco GmbH Herzogenrath Germany +
