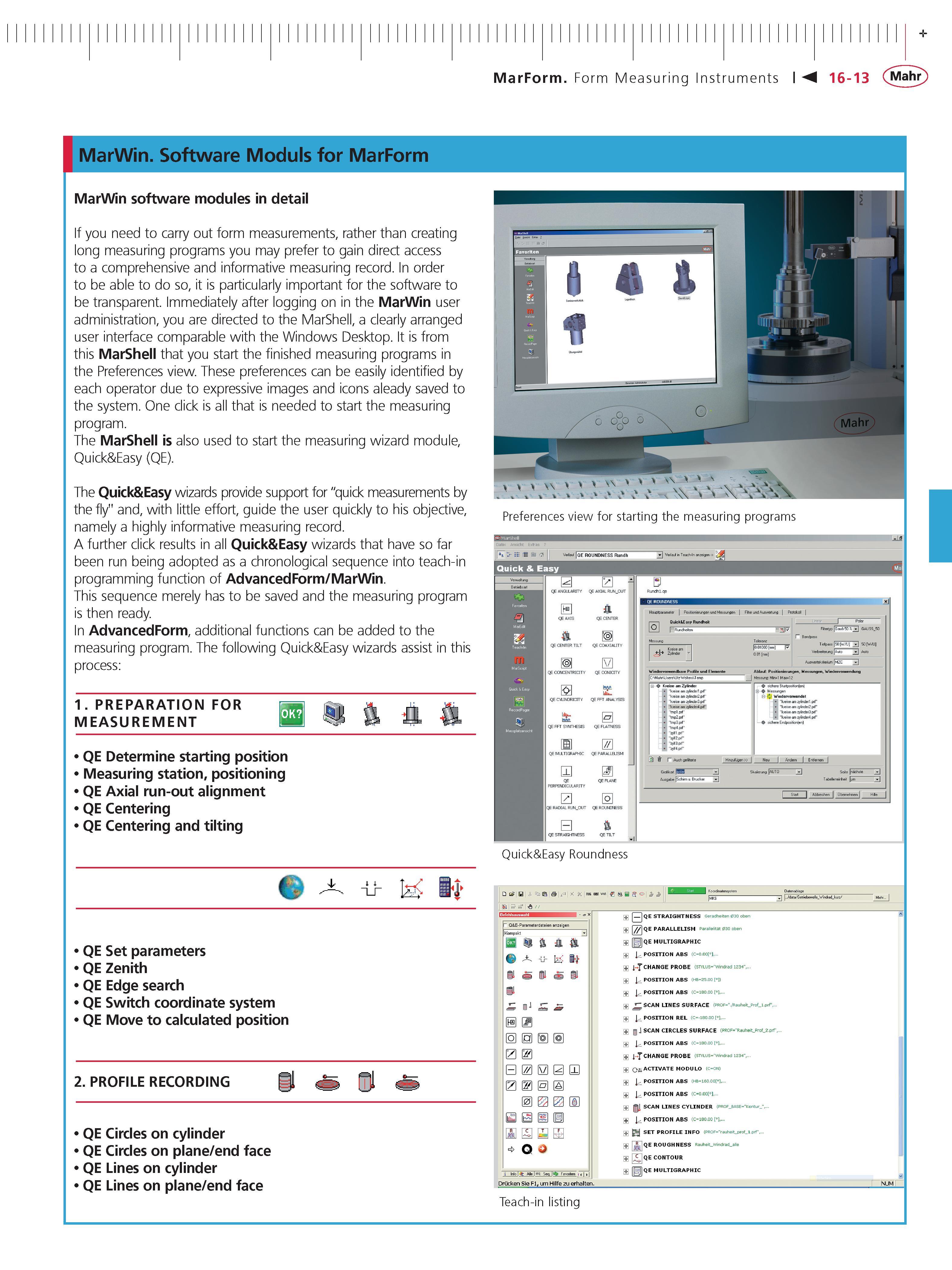

MarForm Form Measuring Instruments M 16-13 Mahr MarWin. Software Moduls for MarForm MarWin software modules in detail If you need to carry out form measurements rather than creating long measuring programs you may prefer to gain direct access to a comprehensive and informative measuring record. In order to be able to do so it is particularly important for the software to be transparent. Immediately after logging on in the MarWin user administration you are directed to the MarShell a clearly arranged user interface comparable with the Windows Desktop. It is from this MarShell that you start the finished measuring programs in the Preferences view. These preferences can be easily identified by each operator due to expressive images and icons aleady saved to the system. One click is all that is needed to start the measuring program. The MarShell is also used to start the measuring wizard module Quick&Easy (QE). The Quick&Easy wizards provide support for "quick measurements by the fly and with little effort guide the user quickly to his objective namely a highly informative measuring record. A further click results in all Quick&Easy wizards that have so far been run being adopted as a chronological sequence into teach-in programming function of AdvancedForm MarWin. This sequence merely has to be saved and the measuring program is then ready. In AdvancedForm additional functions can be added to the measuring program. The following Quick&Easy wizards assist in this process 1. PREPARATION FOR measurement QE Determine starting position Measuring station positioning QE Axial run-out alignment QE Centering QE Centering and tilting 1 1 V V v v W s Preferences view for starting the measuring programs (H QE QEPLiN ENDICUURITY JZI 0 0 Quick&Easy Roundness QE Set parameters QE Zenith QE Edge search QE Switch coordinate system QE Move to calculated position 2. PROFILE RECORDING QE Circles on cylinder QE Circles on plane end face QE Lines on cylinder QE Lines on plane end face Teach-in listing
