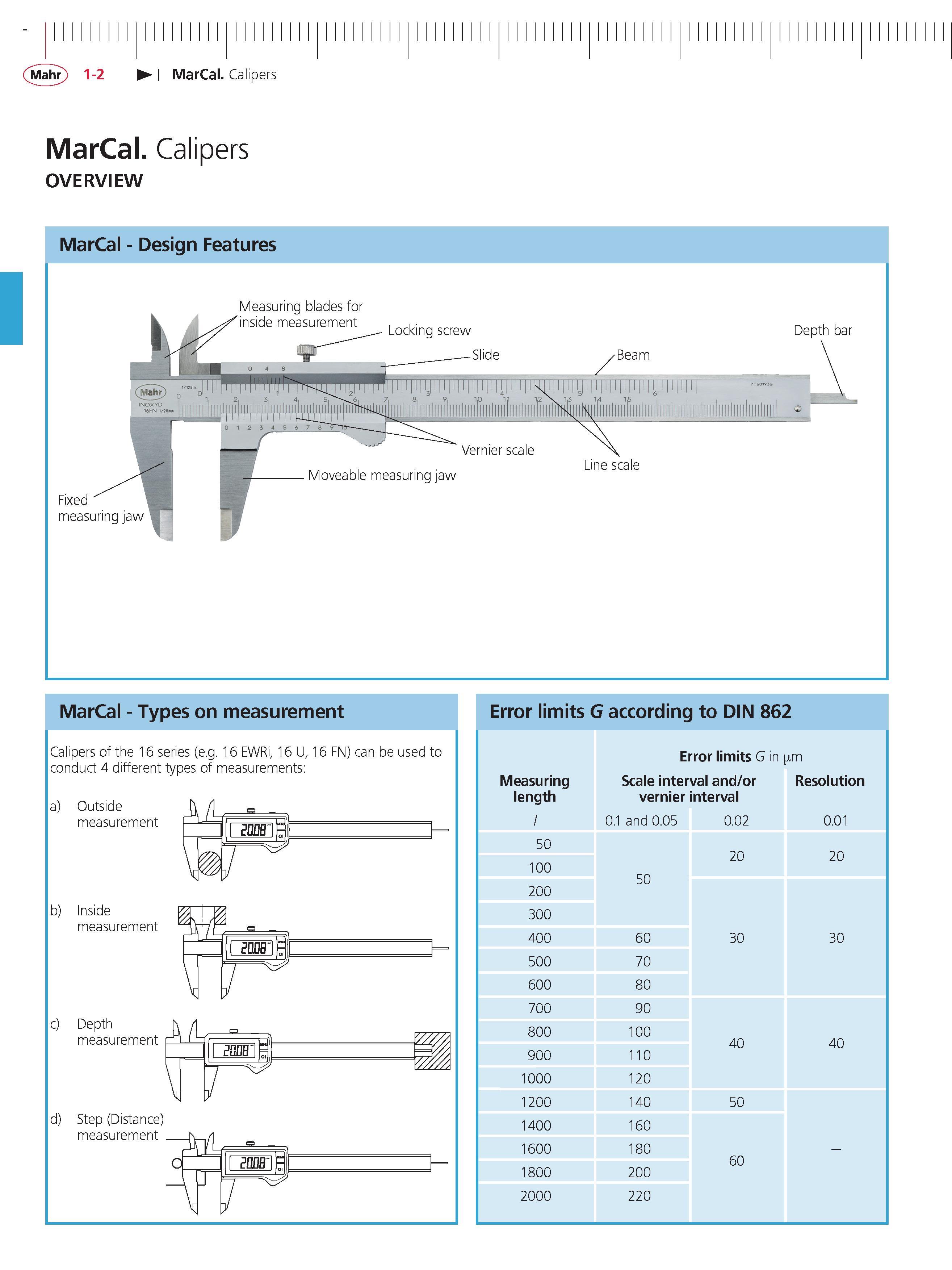

Mahr 1-2 MarCal Calipers MarCal Calipers OVERVIEW MarCal - Design Features Measuring blades for 'inside measurement Locking screw Depth bar Line scale Fixed measuring jaw MarCal - Types on measurement Calipers of the 16 series (e.g. 16 EWRi 16 U 16 FN) can be used to conduct 4 different types of measurements a) Outside measurement b) Inside measurement c) Depth measurement d) Step (Distance) measurement IH IH error limits G according to DiN 862 error limits G in m Measuring length Scale interval and or resolution vernier interval l 0.1 and 0.05 0.02 0.01 50 100 200 50 20 20 300 400 60 30 30 500 70 600 80 700 90 800 900 100 110 40 40 1000 120 1200 140 50 1400 160 1600 1800 180 200 60 2000 220
