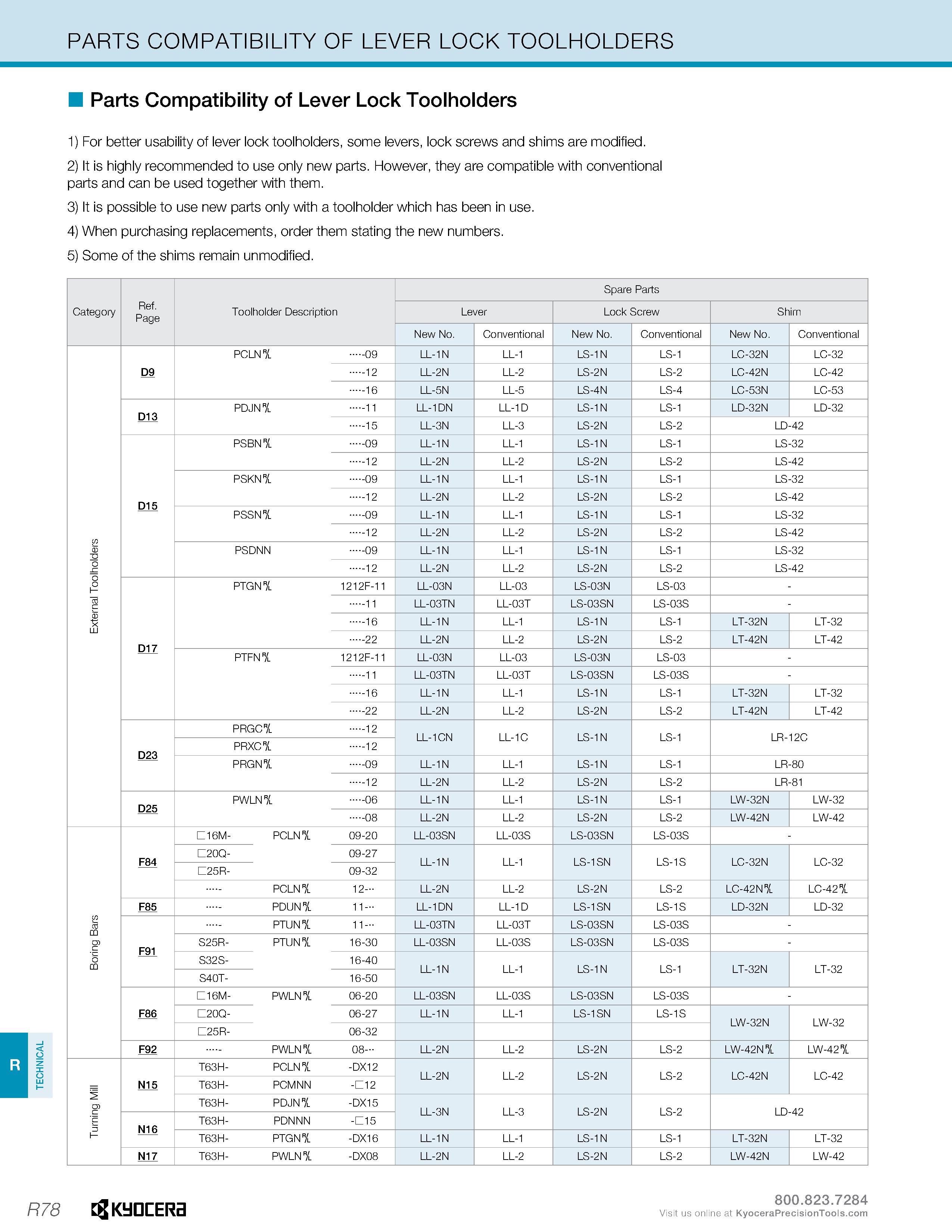

TECHNICAL PARTS COMPATIBILITY OF LEVER LOCK TOOLHOLDERS Parts Compatibility of Lever Lock Toolholders 1) For better usability of lever lock toolholders, some levers, lock screws and shims are modified. 2) It is highly recommended to use only new parts. However, they are compatible with conventional parts and can be used together with them. 3) It is possible to use new parts only with a toolholder which has been in use. 4) When purchasing replacements, order them stating the new numbers. 5) Some of the shims remain unmodified. Spare Parts Category Ref. Page Toolholder Description Lever Lock Screw Shim New No. Conventional New No. Conventional New No. Conventional PCLN 09 LL-1N LL-1 LS-1N LS-1 LC-32N LC-32 D9 12 LL-2N LL-2 LS-2N LS-2 LC-42N LC-42 -16 LL-5N LL-5 LS-4N LS-4 LC-53N LC-53 D13 PDJN -11 LL-1DN LL-1D LS-1N LS-1 LD-32N LD-32 -15 LL-3N LL-3 LS-2N LS-2 LD-42 PSBN -09 LL-1N LL-1 LS-1N LS-1 LS-32 -12 LL-2N LL-2 LS-2N LS-2 LS-42 PSKN -09 LL-1N LL-1 LS-1N LS-1 LS-32 D15 -12 LL-2N LL-2 LS-2N LS-2 LS-42 PSSN -09 LL-1N LL-1 LS-1N LS-1 LS-32 External Toolholders -12 LL-2N LL-2 LS-2N LS-2 LS-42 PSDNN -09 LL-1N LL-1 LS-1N LS-1 LS-32 -12 LL-2N LL-2 LS-2N LS-2 LS-42 PTGN 1212F-11 LL-03N LL-03 LS-03N LS-03 - 11 LL-03TN LL-03T LS-03SN LS-03S - 16 LL-1N LL-1 LS-1N LS-1 LT-32N LT-32 D17 -22 LL-2N LL-2 LS-2N LS-2 LT-42N LT-42 PTFN 1212F-11 LL-03N LL-03 LS-03N LS-03 - 11 LL-03TN LL-03T LS-03SN LS-03S - 16 LL-1N LL-1 LS-1N LS-1 LT-32N LT-32 -22 LL-2N LL-2 LS-2N LS-2 LT-42N LT-42 PRGC -12 LL-1CN LL-1C LS-1N LS-1 R- L 12C D23 PRXC -12 PRGN -09 LL-1N LL-1 LS-1N LS-1 LR-80 -12 LL-2N LL-2 LS-2N LS-2 LR-81 D25 PWLN -06 LL-1N LL-1 LS-1N LS-1 LW-32N LW-32 -08 LL-2N LL-2 LS-2N LS-2 LW-42N LW-42 06M PCLN 09-20 LL-03SN LL-03S LS-03SN LS-03S - F84 C20Q- 09-27 LL-1N LL-1 LS-1SN LS-1S LC-32N LC-32 C25R- 09-32 PCLN 12 LL-2N LL-2 LS-2N LS-2 LC-42N LC-42 Boring Bars F85 PDUN 11 LL-1DN LL-1D LS-1SN LS-1S LD-32N LD-32 PTUN 11 LL-03TN LL-03T LS-03SN LS-03S - F91 S25R- PTUN 16-30 LL-03SN LL-03S LS-03SN LS-03S - S32S- 16-40 LL-1N LL-1 LS-1N LS-1 LT-32N LT-32 S40T- 16-50 06M PWLN 06-20 LL-03SN LL-03S LS-03SN LS-03S - F86 C20Q- 06-27 LL-1N LL-1 LS-1SN LS-1S LW-32N LW-32 C25R- 06-32 F92 PWLN 08- LL-2N LL-2 LS-2N LS-2 LW-42N LW-42 T63H- PCLN -DX12 LL-2N LL-2 LS-2N LS-2 LC-42N LC-42 Turning Mill N15 T63H- PCMNN -H12 T63H- PDJN -DX15 LL-3N LL-3 LS-2N LS-2 LD-42 N16 T63H- PDNNN -05 T63H- PTGN -DX16 LL-1N LL-1 LS-1N LS-1 LT-32N LT-32 N17 T63H- PWLN -DX08 LL-2N LL-2 LS-2N LS-2 LW-42N LW-42 R78 Kyocera Visit us online at
