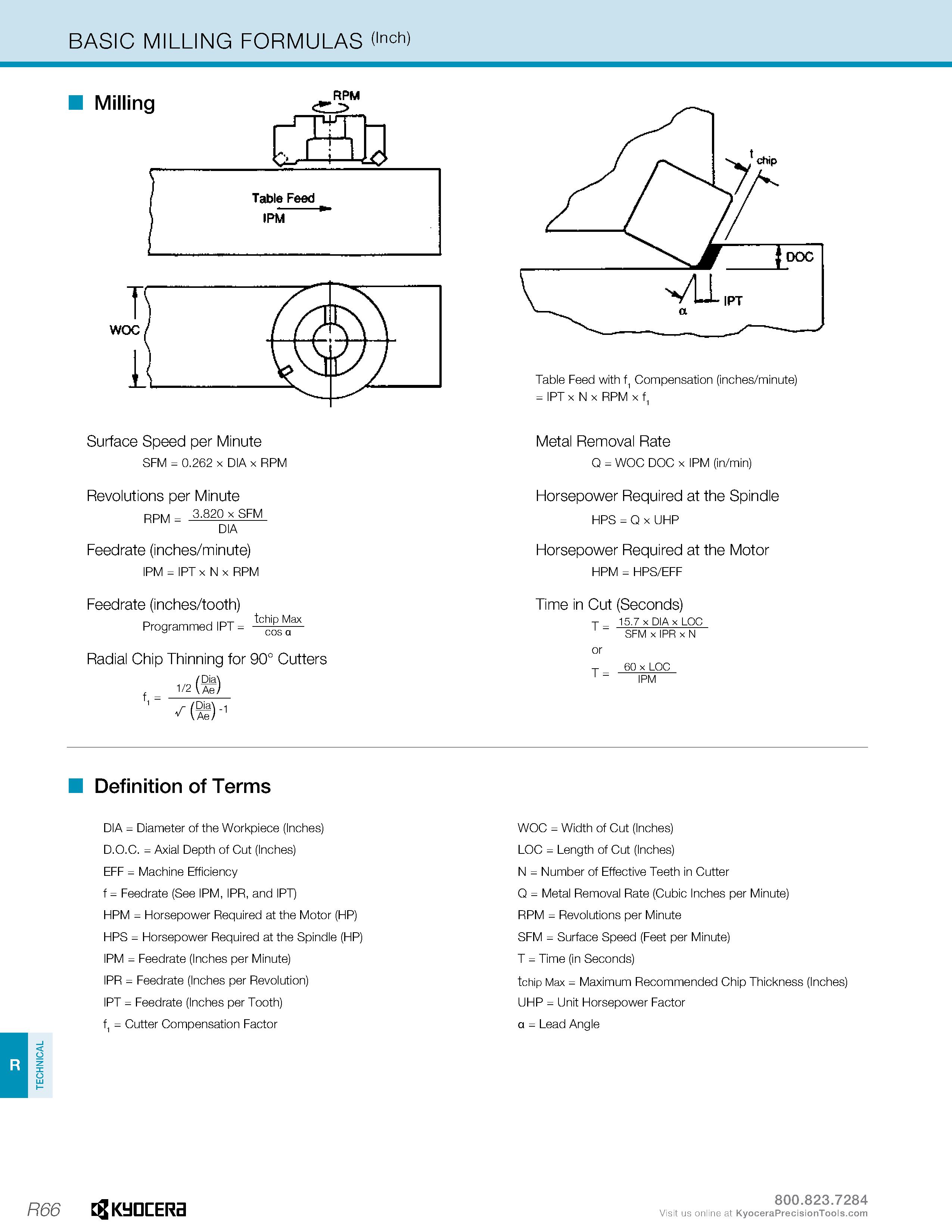

TECHNICAL BASIC MILLING FORMULAS (Inch) Milling Table Feed IPM Table Feed with f1 Compensation (inches/minute) = IPT x N x RPM x f Surface Speed per Minute SFM = 0.262 x DIA x RPM Revolutions per Minute RPM = 3.820 x SFM = Dia Feedrate (inches/minute) IPM = IPT x N x RPM Feedrate (inches/tooth) Programmed IPT = 'os1 Radial Chip Thinning for 90° Cutters /Dia\ f = 1/2 ( Ae ) Metal Removal Rate Q = WOC DOC x IPM (in/min) Horsepower Required at the Spindle HPS = Q x UHP Horsepower Required at the Motor HPM = HPS/EFF Time in Cut (Seconds) T = 15.7 x DIA x LOC or T = SFM x IPR x N 60 x LOC IPM Definition of Terms DIA = Diameter of the Workpiece (Inches) D.O.C. = Axial Depth of Cut (Inches) EFF = Machine Efficiency f = Feedrate (See IPM, IPR, and IPT) HPM = Horsepower Required at the Motor (HP) HPS = Horsepower Required at the Spindle (HP) IPM = Feedrate (Inches per Minute) IPR = Feedrate (Inches per Revolution) IPT = Feedrate (Inches per Tooth) f1 = Cutter Compensation Factor WOC = Width of Cut (Inches) LOC = Length of Cut (Inches) N = Number of Effective Teeth in Cutter Q = Metal Removal Rate (Cubic Inches per Minute) RPM = Revolutions per Minute SFM = Surface Speed (Feet per Minute) T = Time (in Seconds) tchip Max = Maximum Recommended Chip Thickness (Inches) UHP = Unit Horsepower Factor a = Lead Angle R66 Kyocera Visit us online at
