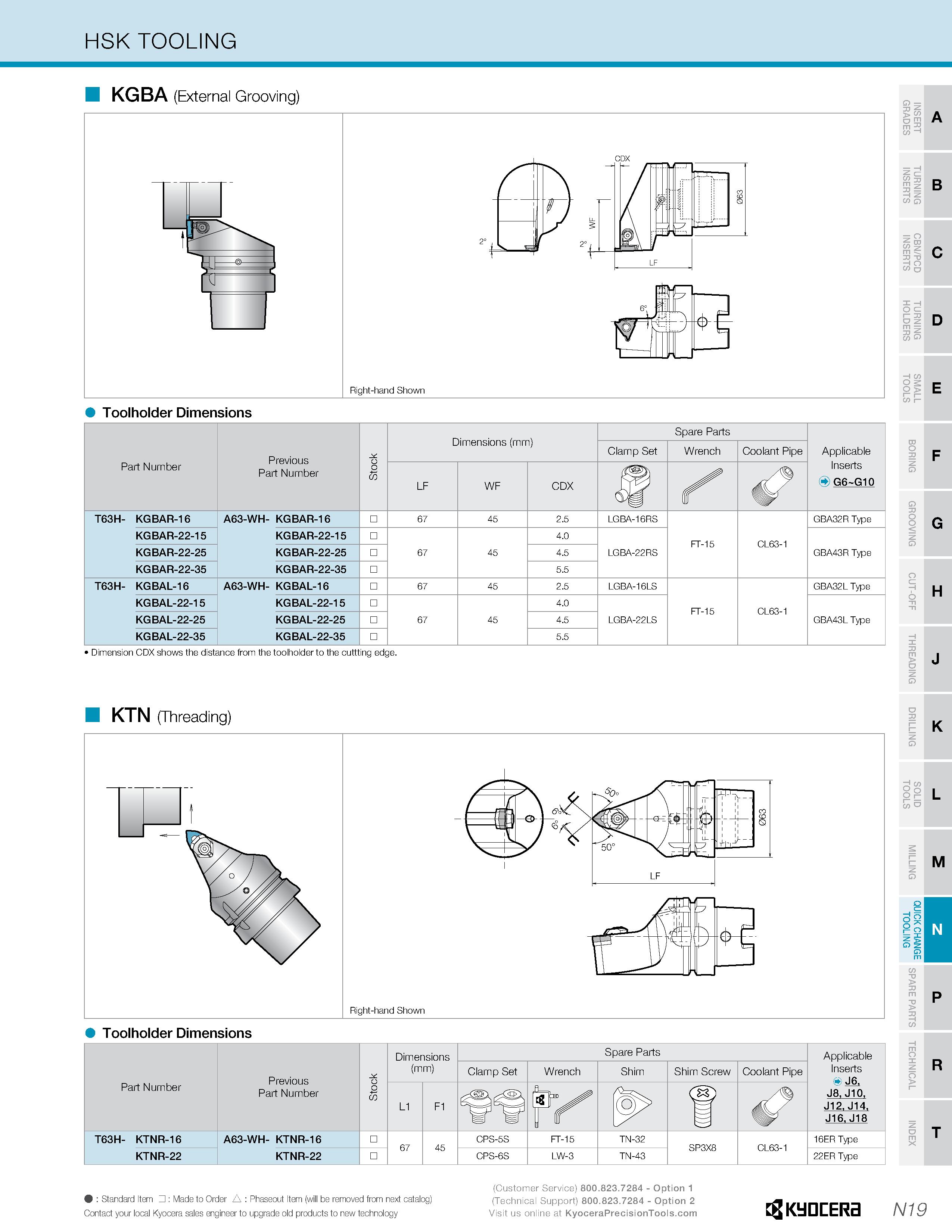

HSK TOOLING KG BA (External Grooving) Toolholder Dimensions Part Number Previous Part Number Stock Dimensions (mm) Spare Parts Applicable Inserts G6-G10 Clamp Set Wrench Coolant Pipe LF WF CDX S T63H- KG BAR-16 A63-WH- KG BAR-16 67 45 2.5 LGBA-16RS FT-15 CL63-1 GBA32R Type KG BAR-22-15 KG BAR-22-15 67 45 4.0 LG BA-22 RS GBA43R Type KG BAR-22-25 KG BAR-22-25 4.5 KG BAR-22-35 KG BAR-22-35 5.5 T63H- KGBAL-16 A63-WH- KGBAL-16 67 45 2.5 LGBA-16LS FT-15 CL63-1 GBA32LType KGBAL-22-15 KGBAL-22-15 67 45 4.0 LGBA-22LS GBA43L Type KGBAL-22-25 KGBAL-22-25 4.5 KGBAL-22-35 KGBAL-22-35 5.5 O Tl > £ m 2 c/> B Tl U S8 O cz I- Tl O m = I Cf) o c h H Dimension CDX shows the distance from the toolholder to the cuttting edge. KTN (Threading) Toolholder Dimensions Part Number Previous Part Number Stock Dimensions (mm) Spare Parts Applicable Inserts J6, J8, J10, J12. J14. J16, J18 Clamp Set Wrench Shim Shim Screw Coolant Pipe L1 F1 T63H- KTN R-16 A63-WH- KTN R-16 67 45 CPS-5S FT-15 TN-32 SP3X8 CL63-1 16ER Type KTNR-22 KTNR-22 CPS-6S LW-3 TN-43 22ER Type Right-hand Shown : Standard Item : Made to Order A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at Kyocera N19
