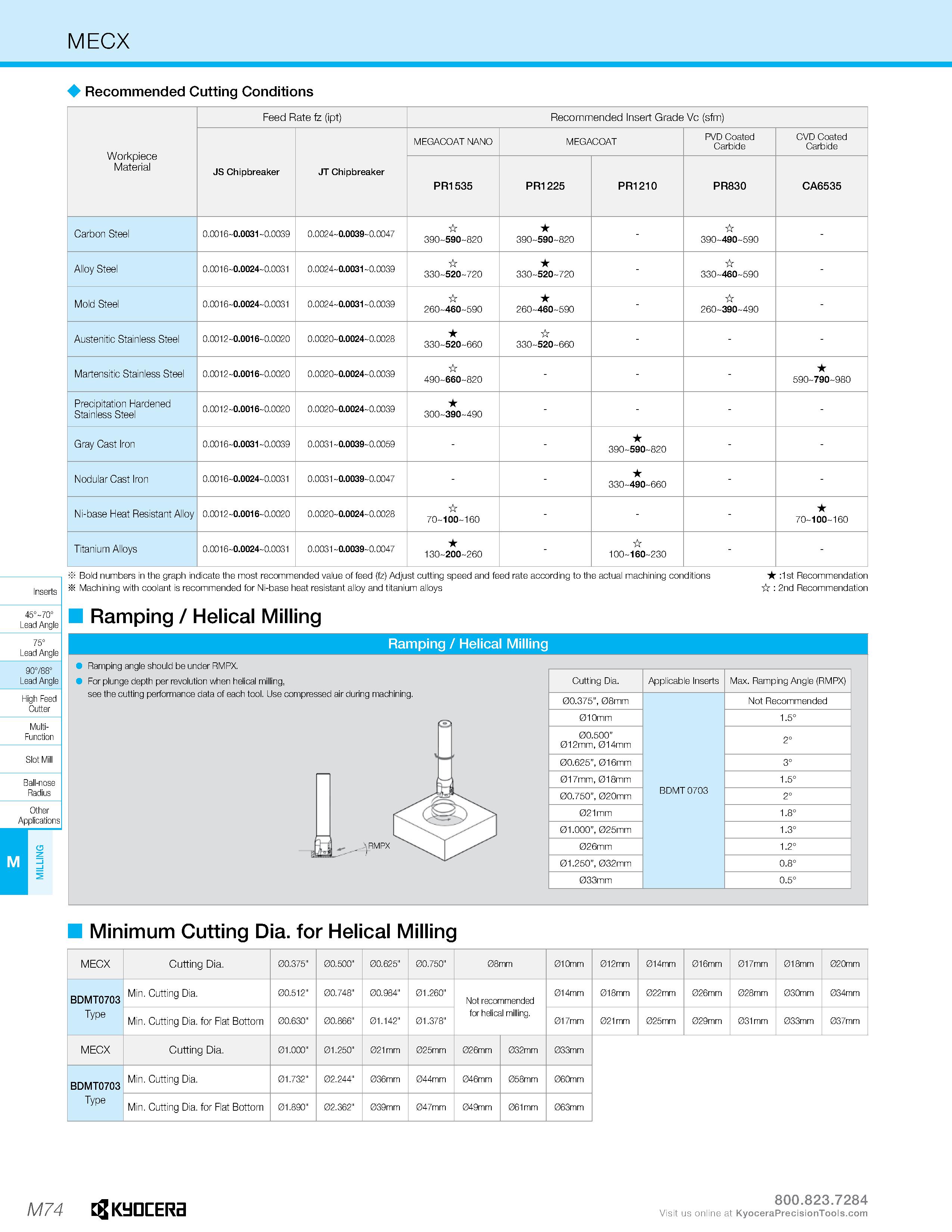

MECX Recommended Cutting Conditions Workpiece Material Feed Rate fz (ipt) Recommended Insert Grade Vc (sfm) JS Chipbreaker JT Chipbreaker MEGACOAT NANO MEGACOAT PVD Coated Carbide CVD Coated Carbide PR1535 PR1225 PR1210 PR830 CA6535 Carbon Steel 0.0016-0.0031-0.0039 0.0024-0.0039-0.0047 it 390-590-820 390-590-820 - it 390-490-590 - Alloy Steel 0.0016-0.0024-0.0031 0.0024-0.0031-0.0039 it 330-520-720 330-520-720 - it 330-460-590 - Mold Steel 0.0016-0.0024-0.0031 0.0024-0.0031-0.0039 it 260-460-590 260-460-590 - it 260-390-490 - Austenitic Stainless Steel 0.0012-0.0016-0.0020 0.0020-0.0024-0.0028 330-520-660 it 330-520-660 - - - Martensitic Stainless Steel 0.0012-0.0016-0.0020 0.0020-0.0024-0.0039 it 490-660-820 - - - 590-790-980 Precipitation Hardened Stain ess Steel 0.0012-0.0016-0.0020 0.0020-0.0024-0.0039 300-390-490 - - - - Gray Cast Iron 0.0016-0.0031-0.0039 0.0031-0.0039-0.0059 - - 390-590-820 - - Nodular Cast Iron 0.0016-0.0024-0.0031 0.0031-0.0039-0.0047 - - 330-490-660 - - Ni-base Heat Resistant Alloy 0.0012-0.0016-0.0020 0.0020-0.0024-0.0028 it 70-100-160 - - - 70-100-160 Titanium Alloys 0.0016-0.0024-0.0031 0.0031-0.0039-0.0047 130-200-260 - it 100-160-230 - - 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function B all-nose Radius Other Applications Bold numbers in the graph indicate the most recommended value of feed (fz) Adjust cutting speed and feed rate according to the actual machining conditions Machining with coolant is recommended for Ni-base heat resistant alloy and titanium alloys :1 st Recommendation it: 2nd Recommendation Ramping / Helical Milling Ramping / Helical Milling Ramping angle should be under RMPX. For plunge depth per revolution when helical milling, see the cutting performance data of each tool. Use compressed air during machining. Cutting Dia. Applicable Inserts Max. Ramping Angle (RMPX) 00.375”, 08mm Not Recommended 010mm 1.5° 00.500” 012mm, 014mm 2° 00.625”, 016mm 3° 017mm, 018mm BDMT 0703 1.5° 00.750”, 020mm 2° 021mm 1.8° 01.000”, 025mm 1.3° 026mm 1.2° 01.250”, 032mm o 033mm 0.5° Minimum Cutting Dia. for Helical Milling MECX Cutting Dia. 00.375" 00.500" 00.625" 00.750" 08mm 010mm 012mm 014mm 016mm 017mm 018mm 020mm BDMT0703 Type Min. Cutting Dia. 00.512" 00.748" 00.984" 01.260" Not recommended for helical milling. 014mm 018mm 022mm 026mm 028mm 030mm 034mm Min. Cutting Dia. for Flat Bottom 00.630" 00.866" 01.142" 01.378" 017mm 021mm 025mm 029mm 031 mm 033mm 037mm MECX Cutting Dia. 01.000" 01.250" 021mm 025mm 026mm 032mm 033mm BDMT0703 Type Min. Cutting Dia. 01.732" 02.244" 036mm 044mm 046mm 058mm 060mm Min. Cutting Dia. for Flat Bottom 01.890" 02.362" 039mm 047mm 049mm 061mm 063mm M7d KMnrFRa IVI / H- l\JULLl\U Visitusoniineat
