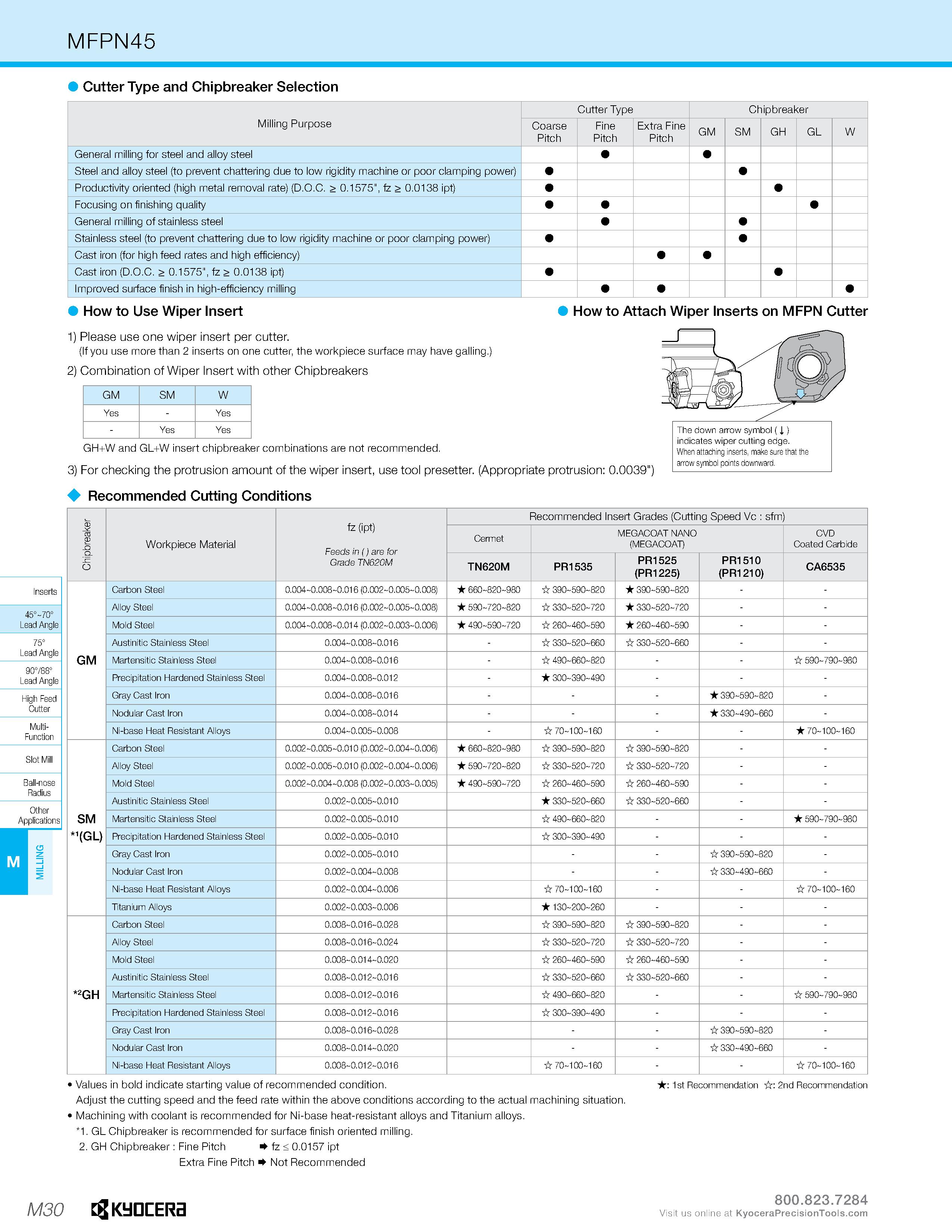

MFPN45 Cutter Type and Chipbreaker Selection Cutter Type Chipbreaker Milling Purpose Coarse Pitch Fine Pitch Extra Fine Pitch GM SM GH GL W General milling for steel and alloy steel Steel and alloy steel (to prevent chattering due to low rigidity machine or poor clamping power) Productivity oriented (high metal removal rate) (D.O.C. > 0.1575", fz > 0.0138 ipt) Focusing on finishing quality General milling of stainless steel Stainless steel (to prevent chattering due to low rigidity machine or poor clamping power) Cast iron (for high feed rates and high efficiency) Cast iron (D.O.C. > 0.1575", fz > 0.0138 ipt) Improved surface finish in high-efficiency milling How to Use Wiper Insert 1) Please use one wiper insert per cutter. If you use more than 2 inserts on one cutter, the workpiece surface may have galling.) 2) Combination of Wiper Insert with other Chipbreakers How to Attach Wiper Inserts on MFPN Cutter l= GM SM W Yes - Yes - Yes Yes GH+W and GL+W insert chipbreaker combinations are not recommended. 3) For checking the protrusion amount of the wiper insert, use tool presetter. (Appropriate protrusion: 0.0039") Recommended Cutting Conditions The down arrow symbol (J,) indicates wiper cutting edge. When attaching inserts, make sure that the arrow symbol points downward, Inserts 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function Slot Mill B all-nose Radius Other Applications (5 Chipbreaker Workpiece Material fz (ipt) Feeds in () are for Grade TN620M Recommended Insert Grades (Cutting Speed Vc : sfm) Cermet MEGACOAT NANO (MEGACOAT) CVD Coated Carbide TN620M PR1535 PR1525 (PR1225) PR1510 (PR1210) CA6535 Carbon Steel 0.004-0.008-0.016 (0.002-0.005-0.008) 660-820-980 390-590-820 390-590-820 Alloy Steel 0.004-0.008-0.016 (0.002-0.005-0.008) 590-720-820 330-520-720 330-520-720 Mold Steel 0.004-0.008-0.014 (0.002-0.003-0.006) 490-590-720 260-460-590 260-460-590 Austinitic Stainless Steel 0.004-0.008-0.016 330-520-660 330-520-660 GM Martensitic Stainless Steel 0.004-0.008-0.016 490-660-820 590-790-980 Precipitation Hardened Stainless Steel 0.004-0.008-0.012 300-390-490 Gray Cast Iron 0.004-0.008-0.016 390-590-820 Nodular Cast Iron 0.004-0.008-0.014 330-490-660 Ni-base Heat Resistant Alloys 0.004-0.005-0.008 70-100-160 70-100-160 Carbon Steel 0.002-0.005-0.010 (0.002-0.004-0.006) 660-820-980 390-590-820 390-590-820 Alloy Steel 0.002-0.005-0.010 (0.002-0.004-0.006) 590-720-820 330-520-720 330-520-720 Mold Steel 0.002-0.004-0.008(0.002-0.003-0.005) 490-590-720 260-460-590 260-460-590 Austinitic Stainless Steel 0.002-0.005-0.010 330-520-660 330-520-660 SM Martensitic Stainless Steel 0.002-0.005-0.010 490-660-820 590-790-980 1(GL) Precipitation Hardened Stainless Steel 0.002-0.005-0.010 300-390-490 Gray Cast Iron 0.002-0.005-0.010 390-590-820 Nodular Cast Iron 0.002-0.004-0.008 330-490-660 Ni-base Heat Resistant Alloys 0.002-0.004-0.006 70-100-160 70-100-160 Titanium Alloys 0.002-0.003-0.006 130-200-260 Carbon Steel 0.008-0.016-0.028 390-590-820 390-590-820 Alloy Steel 0.008-0.016-0.024 330-520-720 330-520-720 Mold Steel 0.008-0.014-0.020 260-460-590 260-460-590 Austinitic Stainless Steel 0.008-0.012-0.016 330-520-660 330-520-660 2GH Martensitic Stainless Steel 0.008-0.012-0.016 490-660-820 590-790-980 Precipitation Hardened Stainless Steel 0.008-0.012-0.016 300-390-490 Gray Cast Iron 0.008-0.016-0.028 390-590-820 Nodular Cast Iron 0.008-0.014-0.020 330-490-660 Ni-base Heat Resistant Alloys 0.008-0.012-0.016 70-100-160 70-100-160 Values in bold indicate starting value of recommended condition. : 1st Recommendation : 2nd Recommendation Adjust the cutting speed and the feed rate within the above conditions according to the actual machining situation. Machining with coolant is recommended for Ni-base heat-resistant alloys and Titanium alloys. 1, GL Chipbreaker is recommended for surface finish oriented milling. 2. GH Chipbreaker: Fine Pitch fz 0.0157 ipt Extra Fine Pitch Not Recommended M30 Kyocera Visit us online at
