972 Каталог KYOCERA 2019 Режущий инструмент для металлообработки на станках Стр.M2

Каталог KYOCERA 2019 Режущий инструмент по металлу Стр. M2 0972 Lab2u

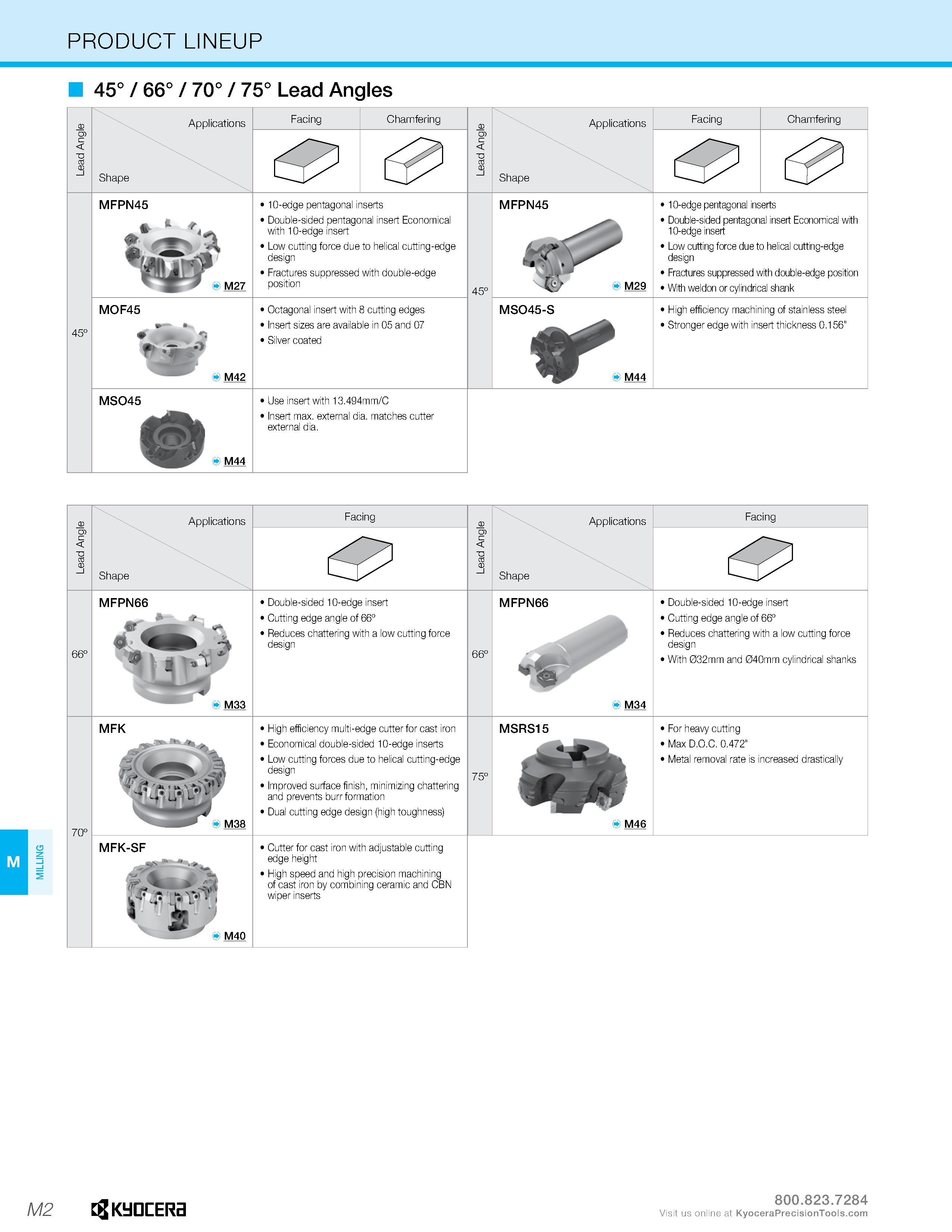

MILLING PRODUCT LINEUP 45° / 66° / 70° / 75° Lead Angles Lead Angle Applications Shape Facing Chamfering Lead Angle Applications Shape Facing Chamfering & eSJ & 45° MFPN45 1 H8r r - M27 10-edge pentagonal inserts Double-sided pentagonal insert Economical with 10-edge insert Low cutting force due to helical cutting-edge design Fractures suppressed with double-edge position 45° MFPN45 ’ M29 10-edge pentagonal inserts Double-sided pentagonal insert Economical with 10-edge insert Low cutting force due to helical cutting-edge design Fractures suppressed with double-edge position With weldon or cylindrical shank M0F45 f > - ' M42 Octagonal insert with 8 cutting edges Insert sizes are available in 05 and 07 Silver coated MS045-S - M44 High efficiency machining of stainless steel Stronger edge with insert thickness 0.156" MS045 X: - M44 Use insert with 13.494mm/C Insert max. external dia. matches cutter external dia. Lead Angle Applications Shape Facing Lead Angle Applications Shape Facing eS 66° MFPN66 va.' M33 Double-sided 10-edge insert Cutting edge angle of 66° Reduces chattering with a low cutting force design 66° MFPN66 M34 Double-sided 10-edge insert Cutting edge angle of 66° Reduces chattering with a low cutting force design With 032mm and 040mm cylindrical shanks 70° MFK 'i M38 High efficiency multi-edge cutter for cast iron Economical double-sided 10-edge inserts Low cutting forces due to helical cutting-edge design Improved surface finish, minimizing chattering and prevents burr formation Dual cutting edge design (high toughness) 75° MSRS15 M46 For heavy cutting Max D.O.C. 0.472" Metal removal rate is increased drastically MFK-SF F M40 Cutter for oast iron with adjustable cutting edge height High speed and high precision machining of cast iron by combining ceramic and CBN wiper inserts M2 Kyocera Visit us online at
