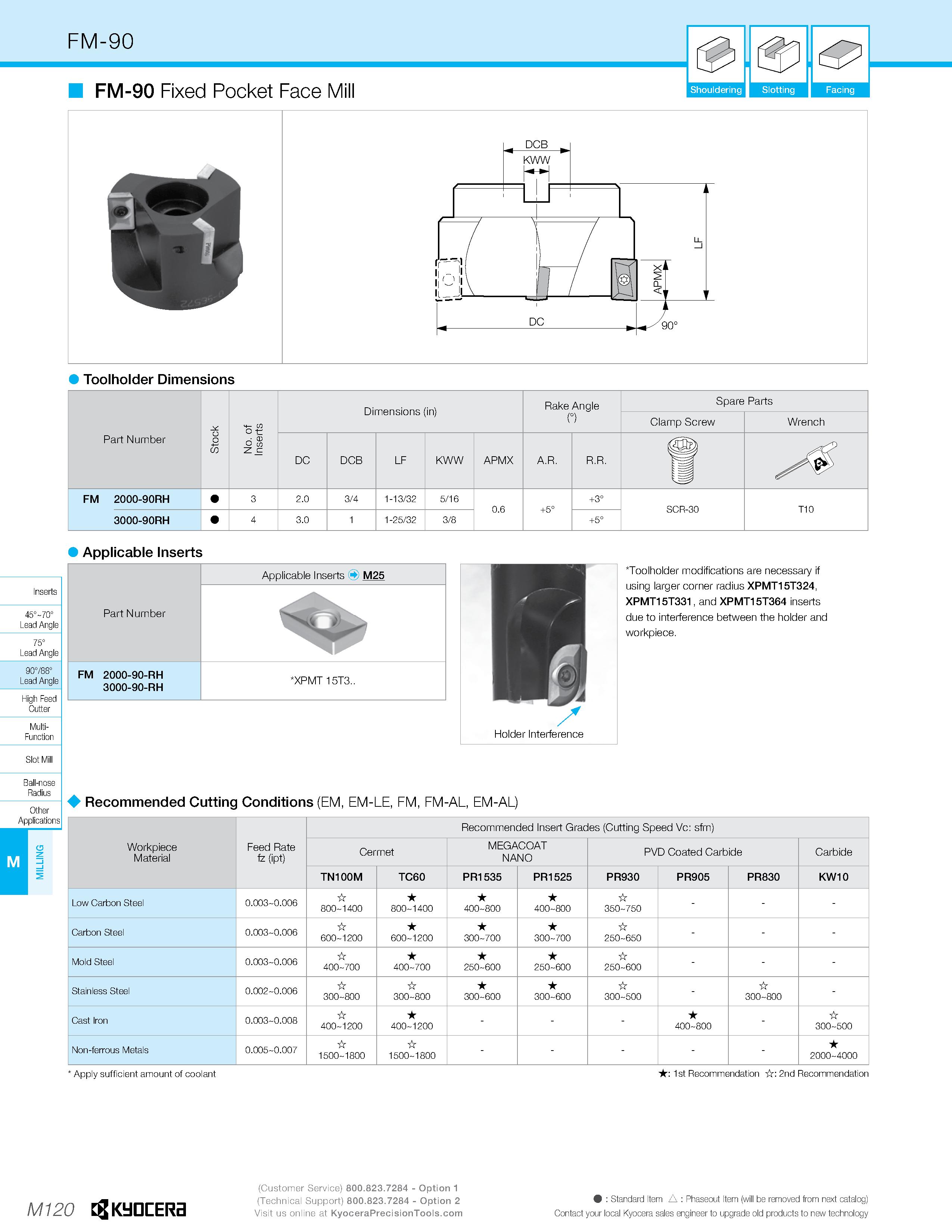

FM-90 5 FM-90 Fixed Pocket Face Mill Shouldering Slotting Facing Toolholder Dimensions Part Number Stock No. of Inserts Dimensions (in) Rake Angle (°) Spare Parts Clamp Screw Wrench DC DCB LF KWW APMX A.R. R.R. FM 2000-90RH 3 2.0 3/4 1-13/32 5/16 0.6 +5° +3° SCR-30 T10 3000-90RH 4 3.0 1-25/32 3/8 +5° Applicable Inserts 45° 70° Lead Angle 75° Lead Angle 90°/88° Lead Angle High Feed Cutter Multi- Function Ball-nose Radius Other Applications Part Number Applicable Inserts M25 FM 2000-90-RH 3000-90-RH XPMT 15T3.. Toolholder modifications are necessary if using larger corner radius XPMT15T324, XPMT15T331, and XPMT15T364 inserts due to interference between the holder and workpiece. Recommended Cutting Conditions (EM, EM-LE, FM, FM-AL, EM-AL) Workpiece Material Feed Rate fz (ipt) Recommended Insert Grades (Cutting Speed Vc: sfm) Cermet MEGACOAT NANO PVD Coated Carbide Carbide TN100M TC60 PR1535 PR1525 PR930 PR905 PR830 KW10 Low Carbon Steel 0.003 0.006 800 1400 800 1400 400 800 400 800 350 750 - Carbon Steel 0.003 0.006 600 1200 600 1200 300 700 300 700 250 650 - Mold Steel 0.003 0.006 400 700 400 700 250 600 250 600 250 600 - Stainless Steel 0.002 0.006 300 800 300 800 300 600 300 600 300 500 300 800 - Cast Iron 0.003 0.008 400 1200 400 1200 400 800 300 500 Non-ferrous Metals 0.005 0.007 1500 1800 1500 1800 2000 4000 nserts Slot Mill M Apply sufficient amount of coolant : 1st Recommendation : 2nd Recommendation M120 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
