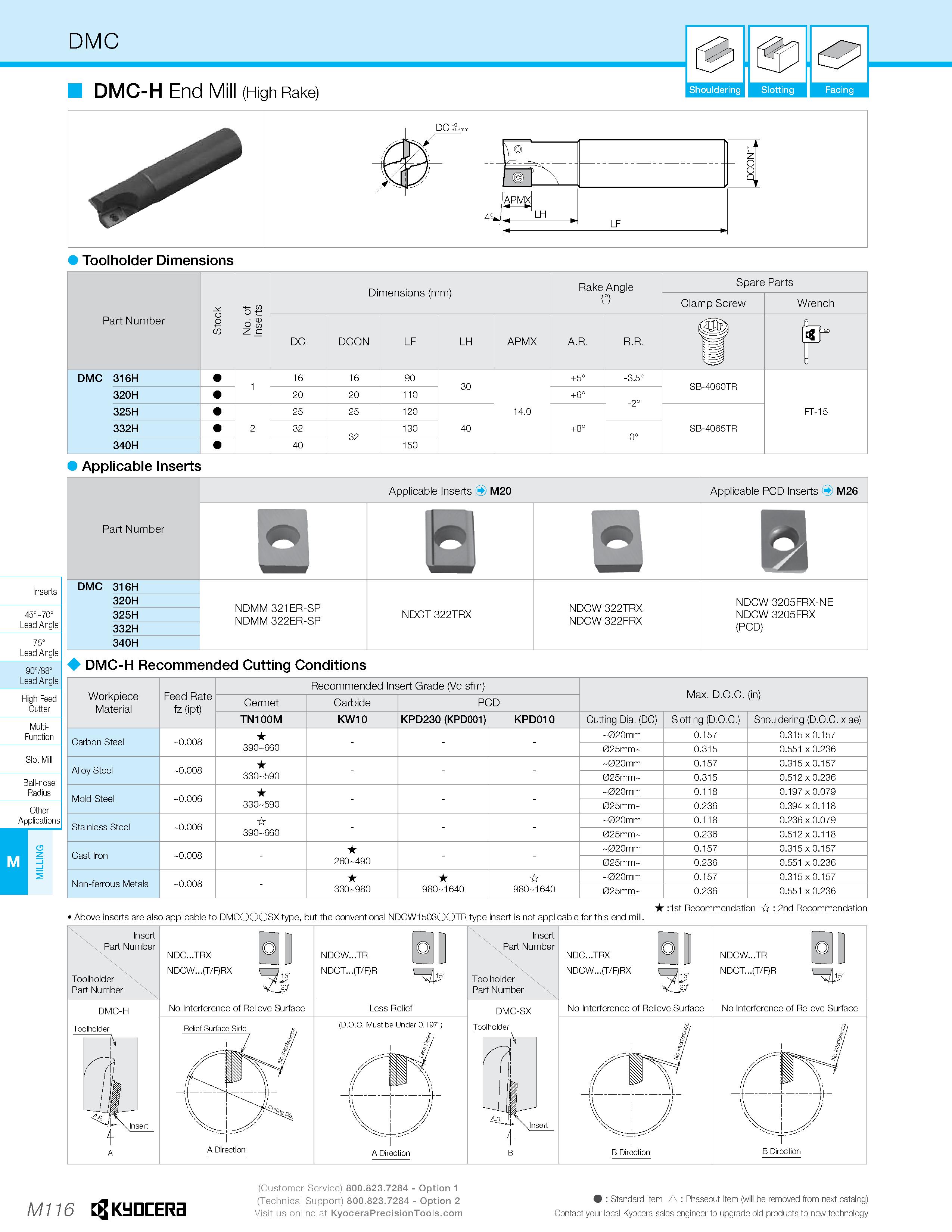

DMC 0 5 DMC-H End Mill (High Rake) Shouldering Slotting Facing Toolholder Dimensions Part Number Stock No. of Inserts Dimensions (mm) Rake Angle 0 Spare Parts Clamp Screw Wrench DC DCON LF LH APMX A.R. R.R. u p DMC 316H 1 16 16 90 30 14.0 +5° -3.5° SB-4060TR FT-15 320H 20 20 110 +6° -2° 325H 2 25 25 120 40 +8° SB-4065TR 332H 32 32 130 0° 340H 40 150 Applicable Inserts Part Number Applicable Inserts M20 Applicable PCD Inserts M26 bJ 0 45" 70" Lead Angle 75" Lead Angle DMC 316H 320H 325H 332H NDMM 321ER-SP NDMM 322ER-SP NDCT 322TRX NDCW 322TRX NDCW 322FRX NDCW 3205FRX-NE NDCW 3205FRX (PCD) 340H 90788" Lead Angle High Feed Cutter 4 DMC-H Recommended Cutting Conditions Workpiece Material Feed Rate fz (ipt) Recommended Insert Grade (Vc sfm) Max. D.O.C. (in) Cermet Carbide PCD TN100M KW10 KPD230 (KPD001) KPD010 Cutting Dia. (DC) Slotting (D.O.C.) Shouldering (D.O.C. x ae) Carbon Steel -0.008 390-660 - - - 02Omm 0.157 0.315x0.157 025mm - 0.315 0.551 x 0.236 Alloy Steel -0.008 330-590 - - - -020mm 0.157 0.315x0.157 025mm - 0.315 0.512x0.236 Mold Steel -0.006 330-590 - - - -020mm 0.118 0.197x0.079 025mm - 0.236 0.394x0.118 Stainless Steel -0.006 390-660 - - - -020mm 0.118 0.236 x 0.079 025mm - 0.236 0.512x0.118 Cast Iron -0.008 - 260-490 - - -020mm 0.157 0.315x0.157 025mm - 0.236 0.551 x 0.236 Non-ferrous Metals -0.008 - 330-980 980-1640 980-1640 -020mm 0.157 0.315x0.157 025mm - 0.236 0.551 x 0.236 Multi- Function B all-nose Radius Other Applications :1st Recommendation it : 2nd Recommendation Above inserts are also applicable to DMCOOOSX type, but the conventional NDCW1503OOTR type insert is not applicable for this end mill. M116 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
