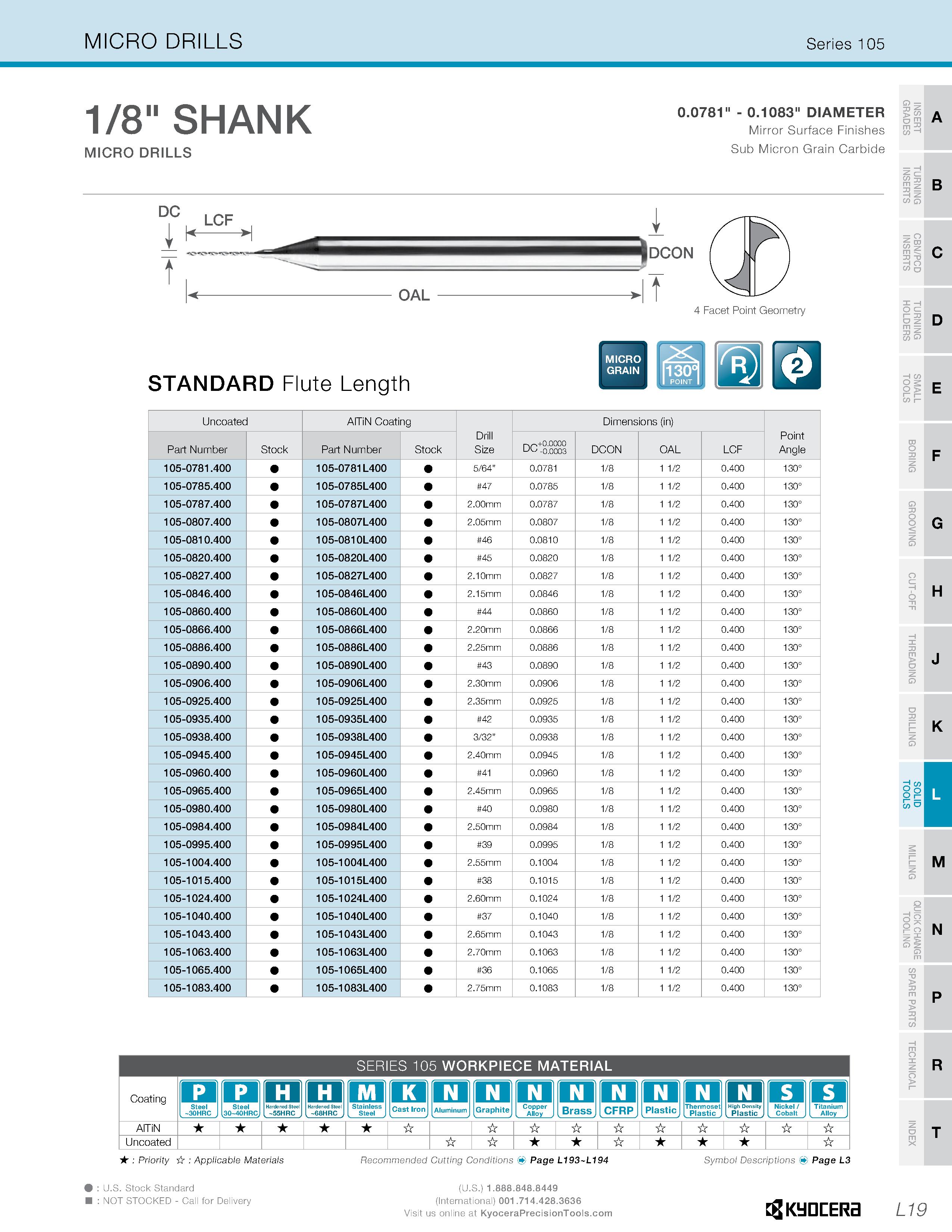

MICRO DRILLS Series 105 1/8" SHANK MICRO DRILLS 0.0781" - 0.1083" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide O cz I- T> O m = B STANDARD Flute Length 4 Facet Point Geometry Uncoated AITiN Coating Drill Size Dimensions (in) Point Angle Part Number Stock Part Number Stock no+0.0000 -0.0003 DCON OAL LCF 105-0781.400 105-0781 L400 5/64” 0.0781 1/8 1 1/2 0.400 130° 105-0785.400 105-0785L400 47 0.0785 1/8 1 1/2 0.400 130° 105-0787.400 105-0787L400 2.00mm 0.0787 1/8 1 1/2 0.400 130° 105-0807.400 105-0807L400 2.05mm 0.0807 1/8 1 1/2 0.400 130° 105-0810.400 105-0810L400 46 0.0810 1/8 1 1/2 0.400 130° 105-0820.400 105-0820L400 45 0.0820 1/8 1 1/2 0.400 130° 105-0827.400 105-0827L400 2.10mm 0.0827 1/8 1 1/2 0.400 130° 105-0846.400 105-0846L400 2.15mm 0.0846 1/8 1 1/2 0.400 130° 105-0860.400 105-0860L400 44 0.0860 1/8 1 1/2 0.400 130° 105-0866.400 105-0866L400 2.20mm 0.0866 1/8 1 1/2 0.400 130° 105-0886.400 105-0886L400 2.25mm 0.0886 1/8 1 1/2 0.400 130° 105-0890.400 105-0890L400 43 0.0890 1/8 1 1/2 0.400 130° 105-0906.400 105-0906L400 2.30mm 0.0906 1/8 1 1/2 0.400 130° 105-0925.400 105-0925L400 2.35mm 0.0925 1/8 1 1/2 0.400 130° 105-0935.400 105-0935L400 42 0.0935 1/8 1 1/2 0.400 130° 105-0938.400 105-0938L400 3/32” 0.0938 1/8 1 1/2 0.400 130° 105-0945.400 105-0945L400 2.40mm 0.0945 1/8 1 1/2 0.400 130° 105-0960.400 105-0960L400 41 0.0960 1/8 1 1/2 0.400 130° 105-0965.400 105-0965L400 2.45mm 0.0965 1/8 1 1/2 0.400 130° 105-0980.400 105-0980L400 40 0.0980 1/8 1 1/2 0.400 130° 105-0984.400 105-0984L400 2.50mm 0.0984 1/8 1 1/2 0.400 130° 105-0995.400 105-0995L400 39 0.0995 1/8 1 1/2 0.400 130° 105-1004.400 105-1004L400 2.55mm 0.1004 1/8 1 1/2 0.400 130° 105-1015.400 105-1015L400 38 0.1015 1/8 1 1/2 0.400 130° 105-1024.400 105-1024L400 2.60mm 0.1024 1/8 1 1/2 0.400 130° 105-1040.400 105-1040L400 37 0.1040 1/8 1 1/2 0.400 130° 105-1043.400 105-1043L400 2.65mm 0.1043 1/8 1 1/2 0.400 130° 105-1063.400 105-1063L400 2.70mm 0.1063 1/8 1 1/2 0.400 130° 105-1065.400 105-1065L400 36 0.1065 1/8 1 1/2 0.400 130° 105-1083.400 105-1083L400 2.75mm 0.1083 1/8 1 1/2 0.400 130° o 5 z Q O cz -H o > o z. Q 8° W D H K B M SERIES 105 WORKPIECE MATERIAL Coating Steel -30HRC D Steel 30-40HRC (HI EH Hardened Steel -68HRC BiTil Stainless Steel K o Aluminum o Graphite o Copper Alloy o Brass o CFRP o Plastic o Thermoset Plastic O Plastic . (si IS Hardened Steel -55HRC J jcast IronJ Nickel/ I Cobalt Titanium Alloy J AITiN Uncoated : Priority & : Applicable Materials Recommended Cutting Conditions Page L193 L194 Symbol Descriptions Page L3 : U.S. Stock Standard : NOT STOCKED - Call for Delivery (U.S.) 1.888.848.8449 (International) 001.714.428.3636 Visit us online at Kyocera L19
