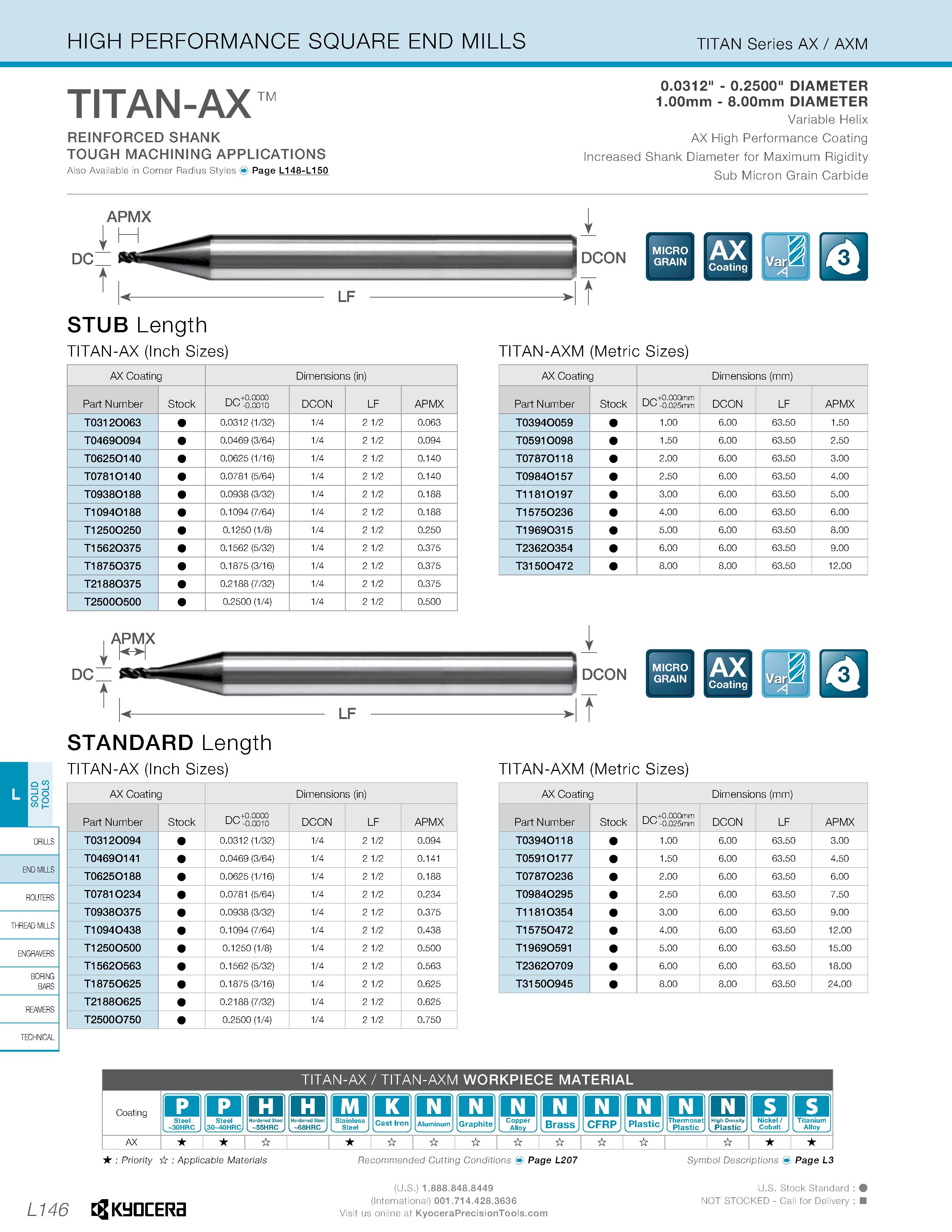

HIGH PERFORMANCE SQUARE END MILLS TITAN Series AX / AXM TITAN-AX TM REINFORCED SHANK TOUGH MACHINING APPLICATIONS Also Available in Corner Radius Styles Page L148-L150 0.0312" - 0.2500" DIAMETER 1.00mm - 8.00mm DIAMETER Variable Helix AX High Performance Coating Increased Shank Diameter for Maximum Rigidity Sub Micron Grain Carbide APMX AXL STUB Length TITAN-AX (Inch Sizes) TITAN-AXM (Metric Sizes) AX Coating Dimensions (in) Part Number Stock p. +0.0000 -0.0010 DCON LF APMX T03120063 0.0312 (1/32) 1/4 2 1/2 0.063 T04690094 0.0469 (3/64) 1/4 2 1/2 0.094 T06250140 0.0625 (1/16) 1/4 2 1/2 0.140 T07810140 0.0781 (5/64) 1/4 2 1/2 0.140 T09380188 0.0938 (3/32) 1/4 2 1/2 0.188 T10940188 0.1094 (7/64) 1/4 2 1/2 0.188 T12500250 0.1250 (1/8) 1/4 2 1/2 0.250 T15620375 0.1562 (5/32) 1/4 2 1/2 0.375 T18750375 0.1875(3/16) 1/4 2 1/2 0.375 T21880375 0.2188 (7/32) 1/4 2 1/2 0.375 T25000500 0.2500 (1/4) 1/4 2 1/2 0.500 AX Coating Dimensions (mm) Part Number Stock p. +0.000mm -0.025mm DCON LF APMX T03940059 1.00 6.00 63.50 1.50 T05910098 1.50 6.00 63.50 2.50 T07870118 2.00 6.00 63.50 3.00 T09840157 2.50 6.00 63.50 4.00 T11810197 3.00 6.00 63.50 5.00 T15750236 4.00 6.00 63.50 6.00 T1969031 5 5.00 6.00 63.50 8.00 T23620354 6.00 6.00 63.50 9.00 T31 500472 8.00 8.00 63.50 12.00 I , APMX HH STANDARD Length TITAN-AX (Inch Sizes) BORING BARS AX Coating Dimensions (in) Part Number Stock no+0.0000 -0.0010 DCON LF APMX T03120094 0.0312 (1/32) 1/4 2 1/2 0.094 T04690141 0.0469 (3/64) 1/4 2 1/2 0.141 T06250188 0.0625 (1/16) 1/4 2 1/2 0.188 T07810234 0.0781 (5/64) 1/4 2 1/2 0.234 T09380375 0.0938 (3/32) 1/4 2 1/2 0.375 T10940438 0.1094 (7/64) 1/4 2 1/2 0.438 T12500500 0.1250 (1/8) 1/4 2 1/2 0.500 T15620563 0.1562 (5/32) 1/4 2 1/2 0.563 T18750625 0.1875(3/16) 1/4 2 1/2 0.625 T21880625 0.2188 (7/32) 1/4 2 1/2 0.625 T25000750 0.2500 (1/4) 1/4 2 1/2 0.750 AXL TITAN-AXM (Metric Sizes) AX Coating Dimensions (mm) Part Number Stock no+0.000mm -0.025mm DCON LF APMX T03940118 1.00 6.00 63.50 3.00 T05910177 1.50 6.00 63.50 4.50 T07870236 2.00 6.00 63.50 6.00 T09840295 2.50 6.00 63.50 7.50 T11810354 3.00 6.00 63.50 9.00 T15750472 4.00 6.00 63.50 12.00 T19690591 5.00 6.00 63.50 15.00 T23620709 6.00 6.00 63.50 18.00 T31 500945 8.00 8.00 63.50 24.00 TITAN-AX / TITAN-AXM WORKPIECE MATERIAL Coating Steel -30HRC D) Steel 30-40HRC H EH) Hardened Steel -68HRC BiTil Stainless Steel K Aluminum ra) Graphite ra Copper Alloy . ra) Brass ra CFRP ra) Plastic ra Thermoset Plastic . ra . Plastic , IS I s Hardened Steel -55HRC J J Cast IronJ Nickel/ Cobalt J Titanium Alloy J AX : Priority ir : Applicable Materials Recommended Cutting Conditions Page L207 Symbol Descriptions Page L3 L146 Kyocera (U.S.) 1.888.848.8449 (International) 001.714.428.3636 Visit us online at U.S. Stock Standard : NOT STOCKED - Call for Delivery :
