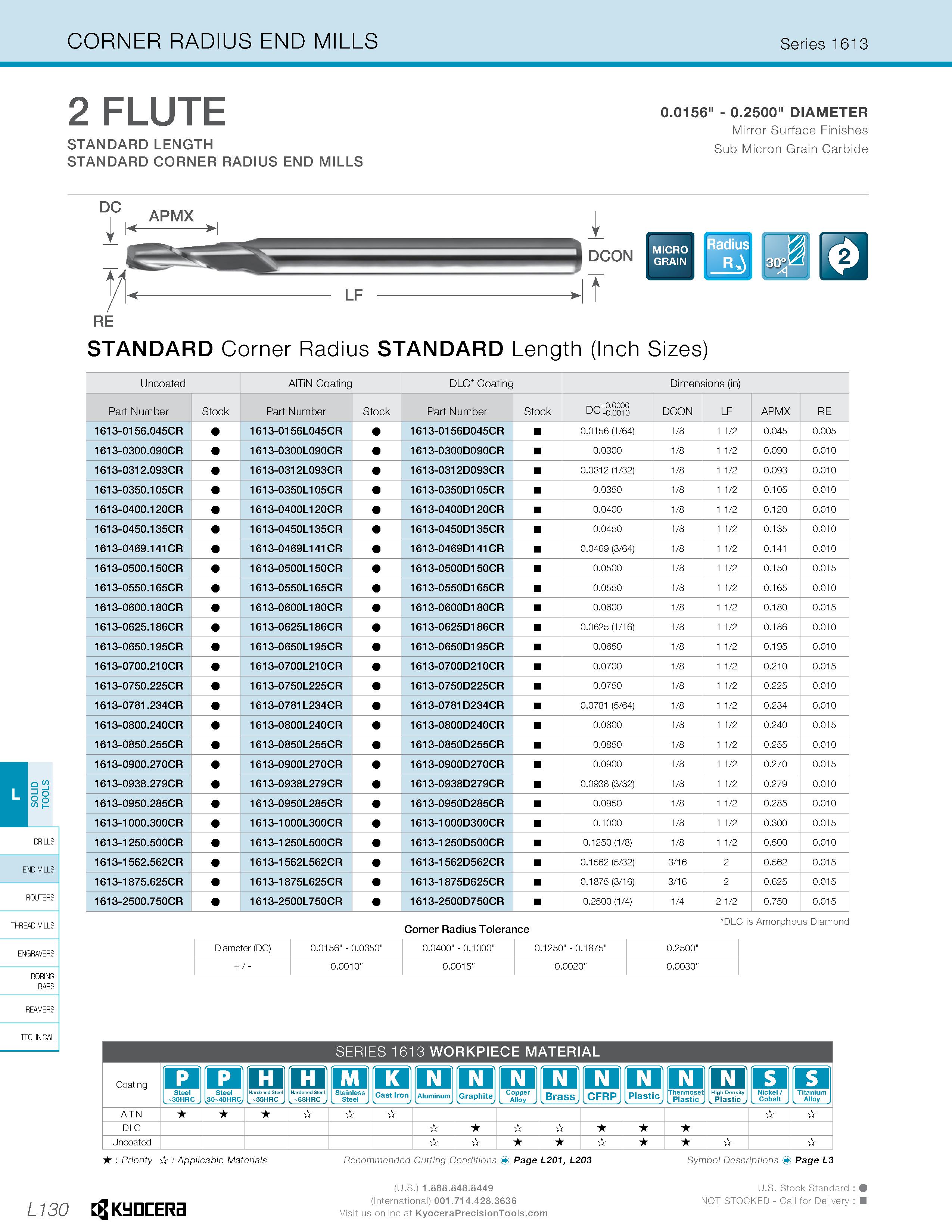

CORNER RADIUS END MILLS Series 1613 2 FLUTE STANDARD LENGTH STANDARD CORNER RADIUS END MILLS 0.0156" - 0.2500" DIAMETER Mirror Surface Finishes Sub Micron Grain Carbide I LF i 3 DCON -It micro M Radius GRAIN STANDARD Corner Radius STANDARD Length (Inch Sizes) Uncoated AITiN Coating DLC' Coating Dimensions (in) Part Number Stock Part Number Stock Part Number Stock OO 85 OO do + 1 o Q DCON LF APMX RE 1613-0156.045CR 1613-0156L045CR 1613-0156D045CR 0.0156 (1/64) 1/8 1 1/2 0.045 0.005 1613-0300.090CR 1613-0300L090CR 1613-0300D090CR 0.0300 1/8 1 1/2 0.090 0.010 1613-0312.093CR 1613-0312L093CR 1613-0312D093CR 0.0312 (1/32) 1/8 1 1/2 0.093 0.010 1613-0350.105CR 1613-0350L105CR 1613-0350D105CR 0.0350 1/8 1 1/2 0.105 0.010 1613-0400.120CR 1613-0400L120CR 1613-0400D120CR 0.0400 1/8 1 1/2 0.120 0.010 1613-0450.135CR 1613-0450L135CR 1613-0450D135CR 0.0450 1/8 1 1/2 0.135 0.010 1613-0469.141CR 1613-0469L141 CR 1613-0469D141 CR 0.0469 (3/64) 1/8 1 1/2 0.141 0.010 1613-0500.150CR 1613-0500L150CR 1613-0500D150CR 0.0500 1/8 1 1/2 0.150 0.015 1613-0550.165CR 1613-0550L165CR 1613-0550D165CR 0.0550 1/8 1 1/2 0.165 0.010 1613-0600.180CR 1613-0600L180CR 1613-0600D180CR 0.0600 1/8 1 1/2 0.180 0.015 1613-0625.186CR 1613-0625L186CR 1613-0625D186CR 0.0625 (1/16) 1/8 1 1/2 0.186 0.010 1613-0650.195CR 1613-0650L195CR 1613-0650D195CR 0.0650 1/8 1 1/2 0.195 0.010 1613-0700.21 OCR 1613-0700L21 OCR 1613-0700D21 OCR 0.0700 1/8 1 1/2 0.210 0.015 1613-0750.225CR 1613-0750L225CR 1613-0750D225CR 0.0750 1/8 1 1/2 0.225 0.010 1613-0781.234CR 1613-0781L234CR 1613-0781D234CR 0.0781 (5/64) 1/8 1 1/2 0.234 0.010 1613-0800.240CR 1613-0800L240CR 1613-0800D240CR 0.0800 1/8 1 1/2 0.240 0.015 1613-0850.255CR 1613-0850L255CR 1613-0850D255CR 0.0850 1/8 1 1/2 0.255 0.010 1613-0900.270CR 1613-0900L270CR 1613-0900D270CR 0.0900 1/8 1 1/2 0.270 0.015 1613-0938.279CR 1613-0938L279CR 1613-0938D279CR 0.0938 (3/32) 1/8 1 1/2 0.279 0.010 1613-0950.285CR 1613-0950L285CR 1613-0950D285CR 0.0950 1/8 1 1/2 0.285 0.010 1613-1000.300CR 1613-1000L300CR 1613-1000D300CR 0.1000 1/8 1 1/2 0.300 0.015 1613-1250.500CR 1613-1250L500CR 1613-1250D500CR 0.1250 (1/8) 1/8 1 1/2 0.500 0.010 1613-1562.562CR 1613-1562L562CR 1613-1562D562CR 0.1562 (5/32) 3/16 2 0.562 0.015 1613-1875.625CR 1613-1875L625CR 1613-1875D625CR 0.1875(3/16) 3/16 2 0.625 0.015 1613-2500.750CR 1613-2500L750CR 1613-2500D750CR 0.2500 (1/4) 1/4 2 1/2 0.750 0.015 Corner Radius Tolerance DLC is Amorphous Diamond BORING BARS Diameter (DC) 0.0156" - 0.0350" 0.0400" - 0.1000" 0.1250" -0.1875" 0.2500" + /- 0.0010” 0.0015” 0.0020” 0.0030” SERIES 1 613 WORKPIECE MATERIAL Coating D Steel -30HRC , D) Steel 30-40HRC I H I EH) Hardened Steel . -68HRC , llTil Stainless Steel , K Aluminum m Graphite o Copper . Alloy , m Brass o CFRP m Plastic o Thermoset . Plastic . Q . Plastic , I s I IS Hardened Steel -55HRC J Cast IronJ Nickel/ Cobalt Titanium Alloy J AITiN DLC Uncoated : Priority ir : Applicable Materials Recommended Cutting Conditions Page L201, L203 Symbol Descriptions Page L3 L130 Kyocera (U.S.) 1.888.848.8449 (International) 001.714.428.3636 Visit us online at U.S. Stock Standard : NOT STOCKED - Call for Delivery :
