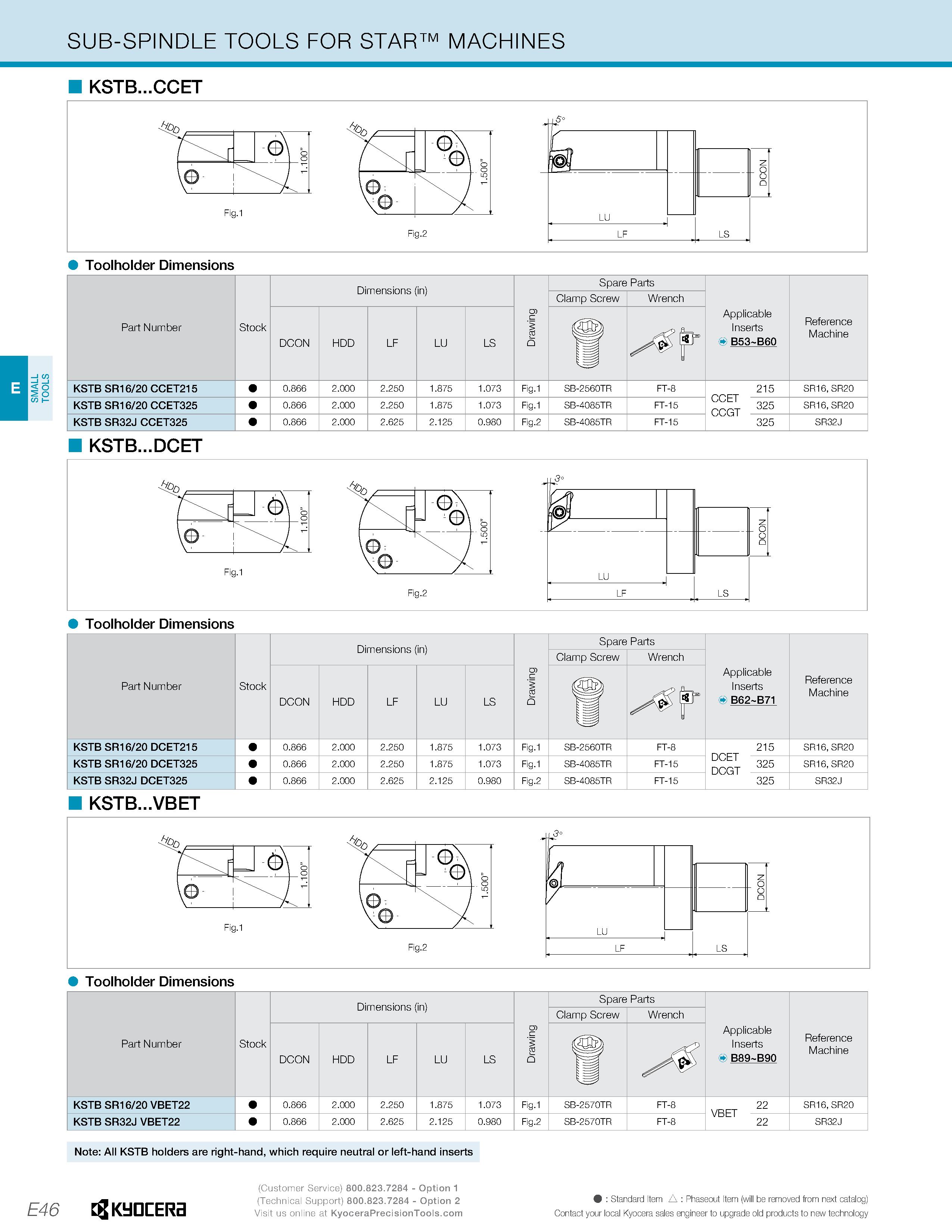

SMALL TOOLS SUB-SPINDLE TOOLS FOR STAR MACHINES KSTB...CCET Toolholder Dimensions Part Number Stock Dimensions (in) Drawing Spare Parts Applicable Inserts B53 B60 Reference Machine Clamp Screw Wrench DCON HDD LF LU LS KSTB SR16/20 CCET215 0.866 2.000 2.250 1.875 1.073 Fig.1 SB-2560TR FT-8 215 SR16, SR20 KSTB SR16/20 CCET325 0.866 2.000 2.250 1.875 1.073 Fig.1 SB-4085TR FT-15 CCET 325 CCGT 325 SR16, SR20 KSTB SR32J CCET325 0.866 2.000 2.625 2.125 0.980 Fig.2 SB-4085TR FT-15 325 SR32J KSTB...DCET Toolholder Dimensions Part Number Stock Dimensions (in) Drawing Spare Parts Applicable Inserts B62 B71 Reference Machine Clamp Screw Wrench DCON HDD LF LU LS J KSTB SR16/20 DCET215 0.866 2.000 2.250 1.875 1.073 Fig.1 SB-2560TR FT-8 215 SR16, SR20 KSTB SR16/20 DCET325 0.866 2.000 2.250 1.875 1.073 Fig.1 SB-4085TR FT-15 DCET 325 DCGT 325 SR16, SR20 KSTB SR32J DCET325 0.866 2.000 2.625 2.125 0.980 Fig.2 SB-4085TR FT-15 325 SR32J KSTB...VBET Toolholder Dimensions Part Number Stock Dimensions (in) Drawing Spare Parts Applicable Inserts B89 B90 Reference Machine Clamp Screw Wrench DCON HDD LF LU LS Ilf KSTB SR16/20 VBET22 0.866 2.000 2.250 1.875 1.073 Fig.1 SB-2570TR FT-8 22 SR16, SR20 KSTB SR32J VBET22 0.866 2.000 2.625 2.125 0.980 Fig.2 SB-2570TR FT-8 22 SR32J Note: All KSTB holders are right-hand, which require neutral or left-hand inserts E46 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
