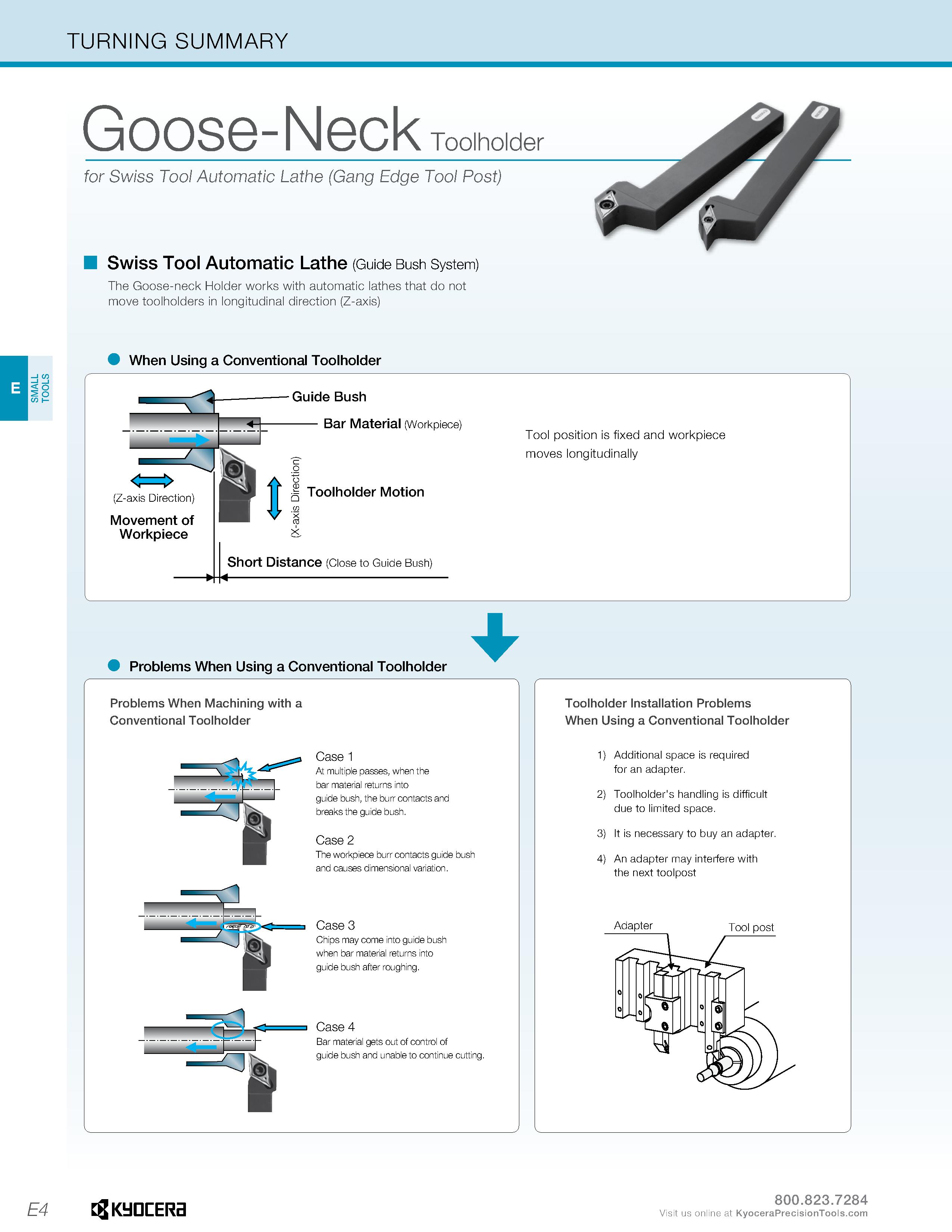

SMALL TOOLS TURNING SUMMARY Goose-Neck Toolholder for Swiss Tool Automatic Lathe (Gang Edge Tool Post) Swiss Tool Automatic Lathe (Guide Bush System) The Goose-neck Holder works with automatic lathes that do not move toolholders in longitudinal direction (Z-axis) When Using a Conventional Toolholder => (Z-axis Direction) Movement of Workpiece Guide Bush -Bar Material (Workpiece) Toolholder Motion Short Distance (Close to Guide Bush) Tool position is fixed and workpiece moves longitudinally Problems When Using a Conventional Toolholder Problems When Machining with a Conventional Toolholder Case 1 At multiple passes, when the bar material returns into guide bush, the burr contacts and breaks the guide bush. Case 2 The workpiece burr contacts guide bush and causes dimensional variation. Case 3 Chips may come into guide bush when bar material returns into guide bush after roughing. Case 4 Bar material gets out of control of guide bush and unable to continue cutting. Toolholder Installation Problems When Using a Conventional Toolholder 1) Additional space is required for an adapter. 2) Toolholder's handling is difficult due to limited space. 3) It is necessary to buy an adapter. 4) An adapter may interfere with the next too I post Adapter Tool post E4 Kyocera Visit us online at
