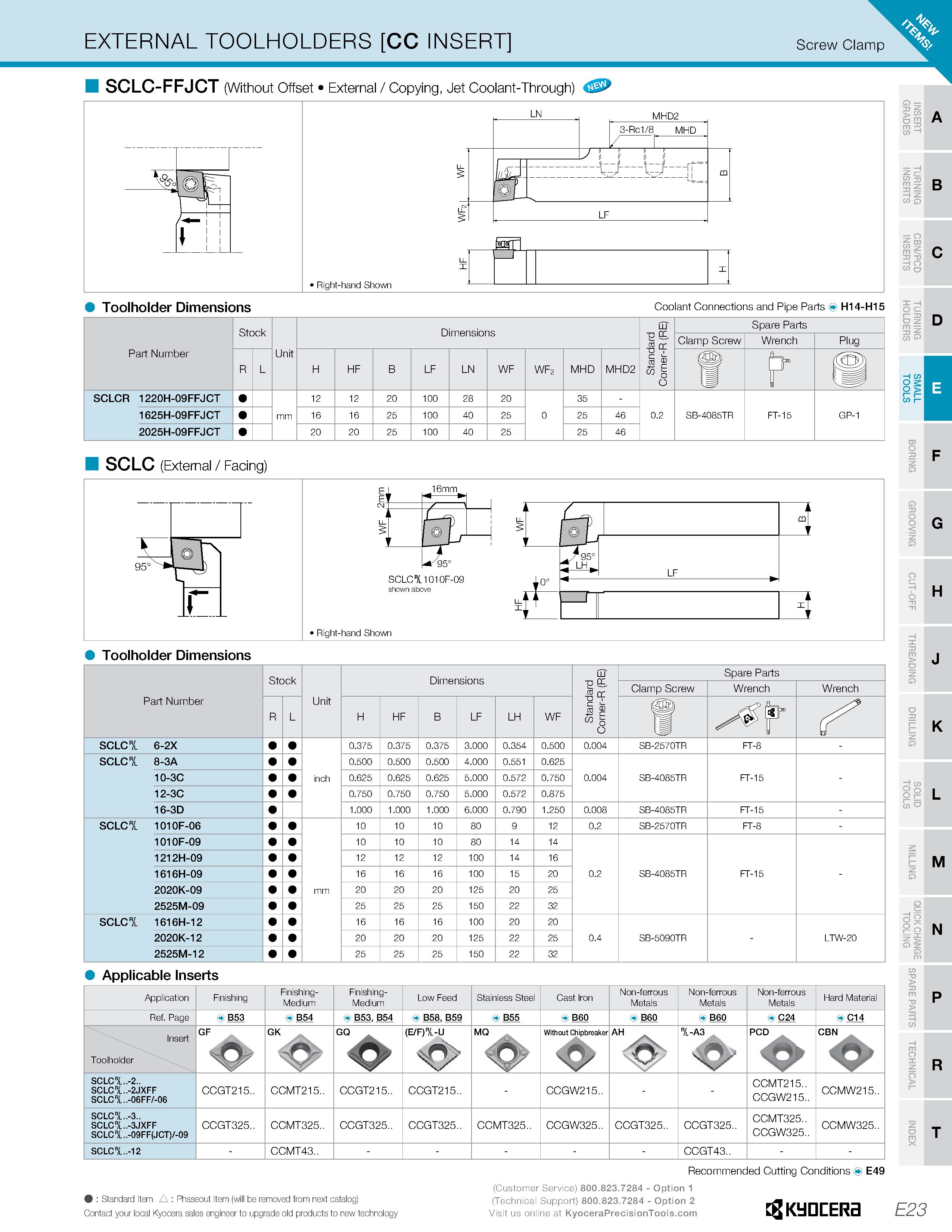

EXTERNAL TOOLHOLDERS CC INSERT Screw Clamp SCLC-FFJCT (Without Offset External / Copying, Jet Coolant-Through) K 3 35 C/> O 33 U S8 O cz I- T> O m = W 02 o > Toolholder Dimensions Coolant Connections and Pipe Parts H14-H15 Part Number Stock Unit Dimensions Standard Corner-R (RE) Spare Parts Clamp Screw Wrench Plug R L H HF B LF LN WF wf2 MHD MHD2 u T jixSij SCLCR 1220H-09FFJCT mm 12 12 20 100 28 20 0 35 - 0.2 SB-4085TR FT-15 GP-1 1625H-09FFJCT 16 16 25 100 40 25 25 46 2025H-09FFJCT 20 20 25 100 40 25 25 46 SCLC (External / Facing) shown above Right-hand Shown Toolholder Dimensions Part Number Stock Unit Dimensions Standard Corner-R (RE) Spare Parts Clamp Screw Wrench Wrench R L H HF B LF LH WF u r" sclcr/l 6-2X inch 0.375 0.375 0.375 3.000 0.354 0.500 0.004 SB-2570TR FT-8 - sclcr/l 8-3A 0.500 0.500 0.500 4.000 0.551 0.625 0.004 SB-4085TR FT-15 - 10-3C 0.625 0.625 0.625 5.000 0.572 0.750 12-3C 0.750 0.750 0.750 5.000 0.572 0.875 16-3D 1.000 1.000 1.000 6.000 0.790 1.250 0.008 SB-4085TR FT-15 - sclcr/l 1010F-06 mm 10 10 10 80 9 12 0.2 SB-2570TR FT-8 - 1010F-09 10 10 10 80 14 14 0.2 SB-4085TR FT-15 - 1212H-09 12 12 12 100 14 16 1616H-09 16 16 16 100 15 20 2020K-09 20 20 20 125 20 25 2525M-09 25 25 25 150 22 32 sclcr/l 1616H-12 16 16 16 100 20 20 2020K-12 20 20 20 125 22 25 0.4 SB-5090TR - LTW-20 2525M-12 25 25 25 150 22 32 O cz -H o Applicable Inserts Application Finishing Finishing- Medium Finishing- Medium Low Feed Stainless Steel Cast Iron Non-ferrous Metals Non-ferrous Metals Non-ferrous Metals Hard Material Ref. Page m B53 C B54 B53. B54 B58. B59 m B55 B60 B60 B60 C24 o Insert Toolholder GF GK (E/F)"/l-U MQ Without Chipbreaker O AH -0- 7l-A3 O’ PCD CBN O’ SCLC R ..-2.. SCLCR1..-2JXFF SCLCRI ..-06FF/-06 CCGT215.. CCMT215.. CCGT215.. CCGT215.. - CCGW215.. - - CCMT215.. CCGW215.. CCMW215.. SCLC%..-3.. SCLCR1..-3JXFF SCLCR/L..-09FF(JCT)/-09 CCGT325.. CCMT325.. CCGT325.. CCGT325.. CCMT325.. CCGW325.. CCGT325.. CCGT325.. CCMT325.. CCGW325.. CCMW325.. SCLCR ..-12 - CCMT43.. - - - - - CCGT43.. - - : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology Recommended Cutting Conditions E49 (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at Kyocera E23
