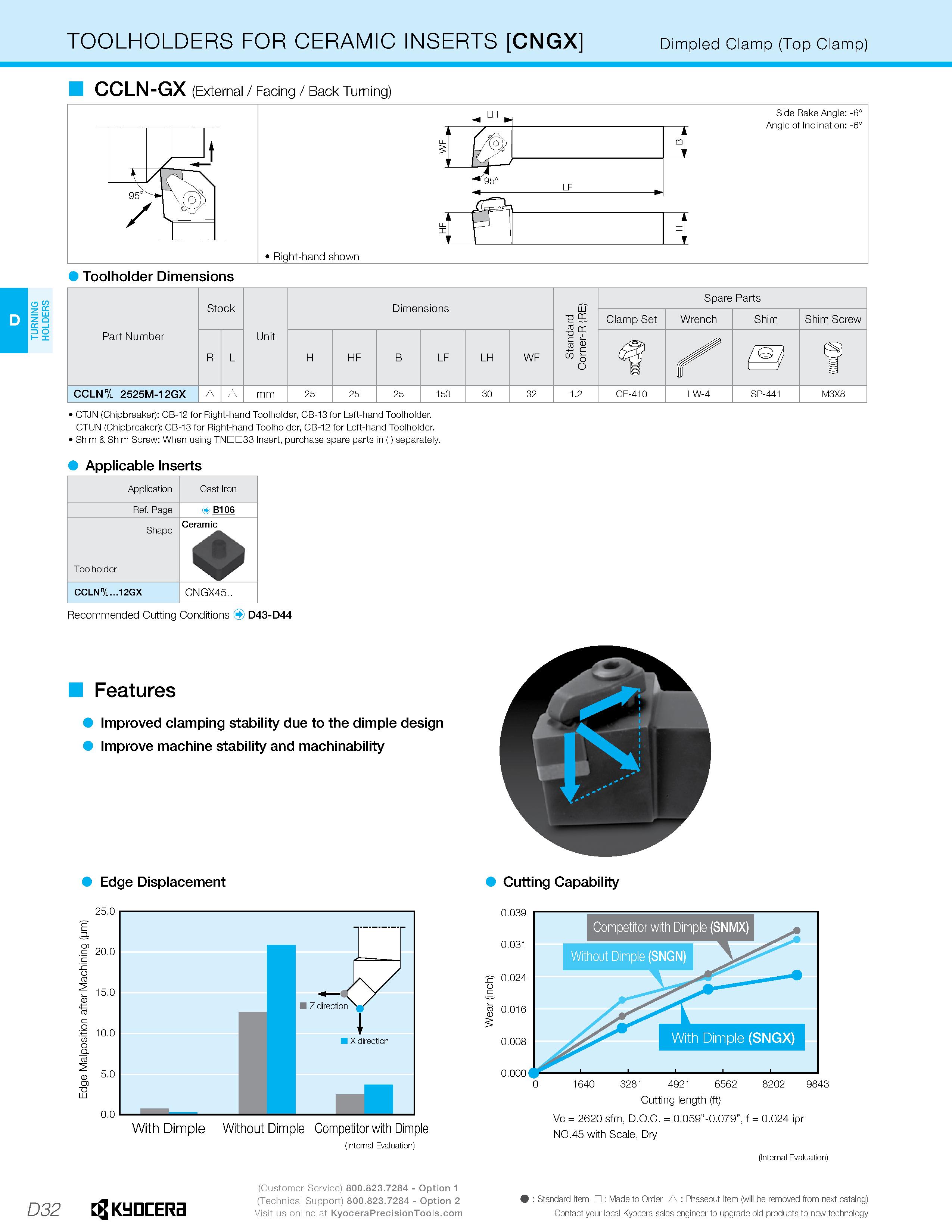

TURNING HOLDERS TOOLHOLDERS FOR CERAMIC INSERTS CNGX Dimpled Clamp (Top Clamp) CCLN-GX (External / Facing / Back Turning) CTJN (Chipbreaker): CB-12 for Right-hand Toolholder, CB-13 for Left-hand Toolholder. CTUN (Chipbreaker): CB-13 for Right-hand Toolholder, CB-12 for Left-hand Toolholder. Shim & Shim Screw: When using TNDD33 Insert, purchase spare parts in ( ) separately. Applicable Inserts Application Cast Iron Ref. Page B1O6 Shape Toolholder Ceramic CCLNr/l...12GX CNGX45.. Recommended Cutting Conditions D43-D44 I Features Improved clamping stability due to the dimple design Improve machine stability and machinability Edge Displacement 25.0 - E .£ 20.0 r i5.o 1s : 10.0 w o WithDimple WithoutDimple Competitorwith Dimple (Internal Evaluation) Cutting Capability 0.039 0.031 0.024 o c 0.016 0.008 0.000 Competitor with Dimple (SNMX) Without Dimple (SNGN) 0 1640 3281 4921 6562 8202 9843 Cutting length ft Vc - 2620 sfm, D.O.C. - 0.059”-0.079”, f - 0.024 ipr N0.45 with Scale, Dry (Internal Evaluation) D32 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item : Made to Order A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
