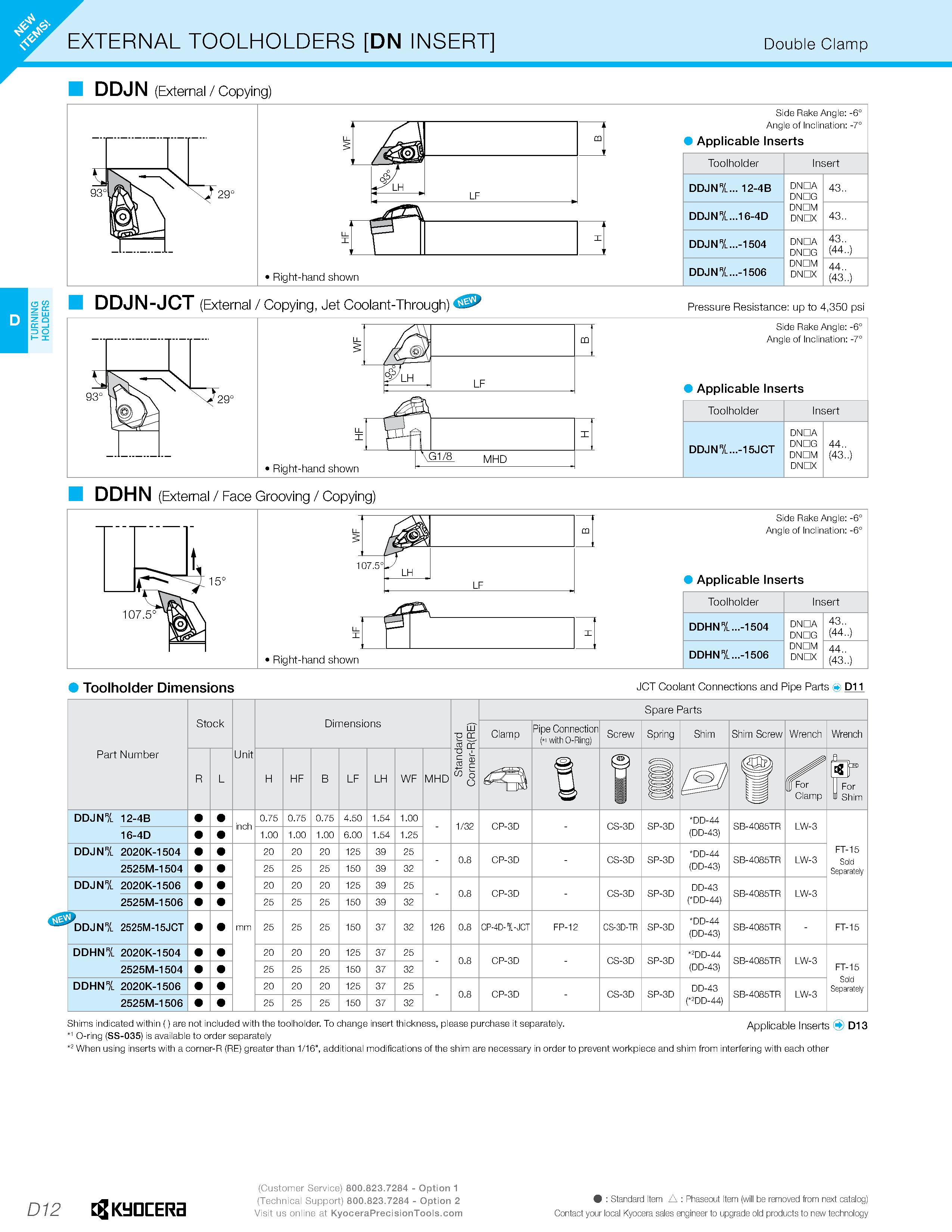

EXTERNAL TOOLHOLDERS DN INSERT Double Clamp B DDJN (External / Copying) Side Rake Angle: -6° Angle of Inclination: -7° Applicable Inserts 1 Right-hand shown Toolholder DDJNr/l... 12-4B DDJNr/l...1 6-4D DDJNr/l...-1 504 DDJNr/l...-1 506 Insert DNDA DNDG DNDM DNDX DNDA DNDG DNDM DNDX 43.. 43.. 43.. (44.. 44.. (43.. DDJN-JCT (External / Copying, Jet Coolant-Through) CD LF ' LH Pressure Resistance: up to 4,350 psi Side Rake Angle: -6° Angle of Inclination: -7° Applicable Inserts 1 Right-hand shown MHD Toolholder Insert DDJNr/l...-1 5JCT DNDA DNDG DNDM DNDX 44.. (43..) DDHN (External / Face Grooving / Copying) LH LF Side Rake Angle: -6° Angle of Inclination: -6° Applicable Inserts Right-hand shown Toolholder DDHN r/l...-1504 DDHN r/l...-1506 Insert DNDA DNDG DNDM DNDX 43.. (44.. 44.. (43.. Toolholder Dimensions JCT Coolant Connections and Pipe Parts D11 Part Number Stock Unit Dimensions Standard Corner-R(RE) Spare Parts Clamp Pipe Connection ( i with 0-Ring) Screw Spring Shim Shim Screw Wrench Wrench R L H HF B LF LH WF MHD 1 1 flf Clamp T7or M Shim DDJN7l 12-4B inch 0.75 0.75 0.75 4.50 1.54 1.00 - 1/32 CP-3D - CS-3D SP-3D DD-44 (DD-43) SB-4085TR LW-3 FT-15 Sold Separately 16-4D 1.00 1.00 1.00 6.00 1.54 1.25 DDJN7l 2020K-1504 mm 20 20 20 125 39 25 - 0.8 CP-3D - CS-3D SP-3D DD-44 (DD-43) SB-4085TR LW-3 2525M-1504 25 25 25 150 39 32 DDJN7l 2020K-1506 20 20 20 125 39 25 - 0.8 CP-3D - CS-3D SP-3D DD-43 ( DD-44) SB-4085TR LW-3 2525M-1506 25 25 25 150 39 32 9 DDJNr/l 2525M-15JCT 25 25 25 150 37 32 126 0.8 CP-4D-7l-JCT FP-12 CS-3D-TR SP-3D DD-44 (DD-43) SB-4085TR - FT-15 DDHNr/l 2020K-1504 20 20 20 125 37 25 - 0.8 CP-3D - CS-3D SP-3D 2DD-44 (DD-43) SB-4085TR LW-3 FT-15 Sold Separately 2525M-1504 25 25 25 150 37 32 DDHNr/l 2020K-1506 20 20 20 125 37 25 - 0.8 CP-3D - CS-3D SP-3D DD-43 ( 2DD-44) SB-4085TR LW-3 2525M-1506 25 25 25 150 37 32 Shims indicated within () are not included with the toolholder. To change insert thickness, please purchase it separately. 1 O-ring (SS-035) is available to order separately 2 When using inserts with a corner-R (RE) greater than 1/16", additional modifications of the shim are necessary in order to prevent workpi Applicable Inserts D13 ece and shim from interfering with each other D12 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
