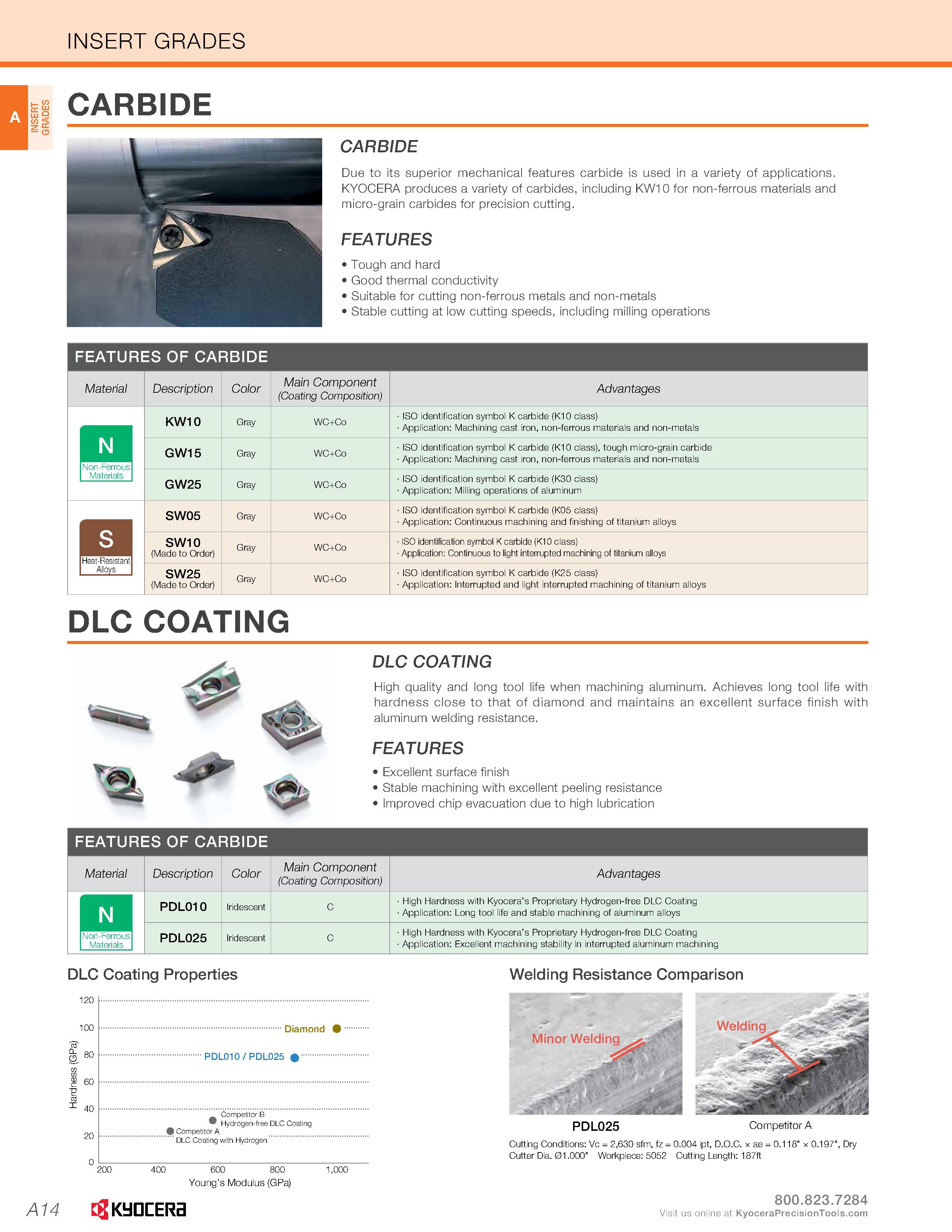

INSERT GRADES INSERT GRADES CARBIDE Due to its superior mechanical features carbide is used in a variety of applications. KYOCERA produces a variety of carbides, including KW10 for non-ferrous materials and micro-grain carbides for precision cutting. FEATURES Tough and hard Good thermal conductivity Suitable for cutting non-ferrous metals and non-metals Stable cutting at low cutting speeds, including milling operations FEATURES OF CARBIDE Material Description Color Main Component (Coating Composition) Advantages KW10 Gray WC+Co ISO identification symbol K carbide (K10 class) Application: Machining cast iron, non-ferrous materials and non-metals GW15 Gray WC+Co ISO identification symbol K carbide (K10 class), tough micro-grain carbide Application: Machining cast iron, non-ferrous materials and non-metals Materials GW25 Gray WC+Co ISO identification symbol K carbide (K30 class) Application: Milling operations of aluminum mm SW05 Gray WC+Co ISO identification symbol K carbide (K05 class) Application: Continuous machining and finishing of titanium alloys SW10 (Made to Order) Gray WC+Co ISO identification symbol K carbide (K10 class) Application: Continuous to light interrupted machining of titanium alloys Alloys SW25 (Made to Order) Gray WC+Co ISO identification symbol K carbide (K25 class) Application: Interrupted and light interrupted machining of titanium alloys DLC COATING a DLC COATING High quality and long tool life when machining aluminum. Achieves long tool life with hardness close to that of diamond and maintains an excellent surface finish with aluminum welding resistance. FEATURES Excellent surface finish Stable machining with excellent peeling resistance Improved chip evacuation due to high lubrication FEATURES OF CARBIDE Material Description Color Main Component (Coating Composition) Advantages In PDL010 Iridescent C High Hardness with Kyocera’s Proprietary Hydrogen-free DLC Coating Application: Long tool life and stable machining of aluminum alloys Non-Ferrous Materials PDL025 Iridescent C High Hardness with Kyocera’s Proprietary Hydrogen-free DLC Coating Application: Excellent machining stability in interrupted aluminum machining DLC Coating Properties Welding Resistance Comparison Diamond PDL010 / PDL025 Competitor B Hydrogen-free DLC Coating Competitor A PDL025 Competitor A DLC Coating with Hydrogen 600 800 1,000 Young’s Modulus (GPa) Cutting Conditions: Vc = 2,630 sfm, fz = 0.004 ipt, D.O.C. x ae = Cutter Dia. 01.000" Workpiece: 5052 Cutting Length: 187ft 0.118" x 0.197", Dry CARBIDE A14 3 Kyocera Visit us online at
