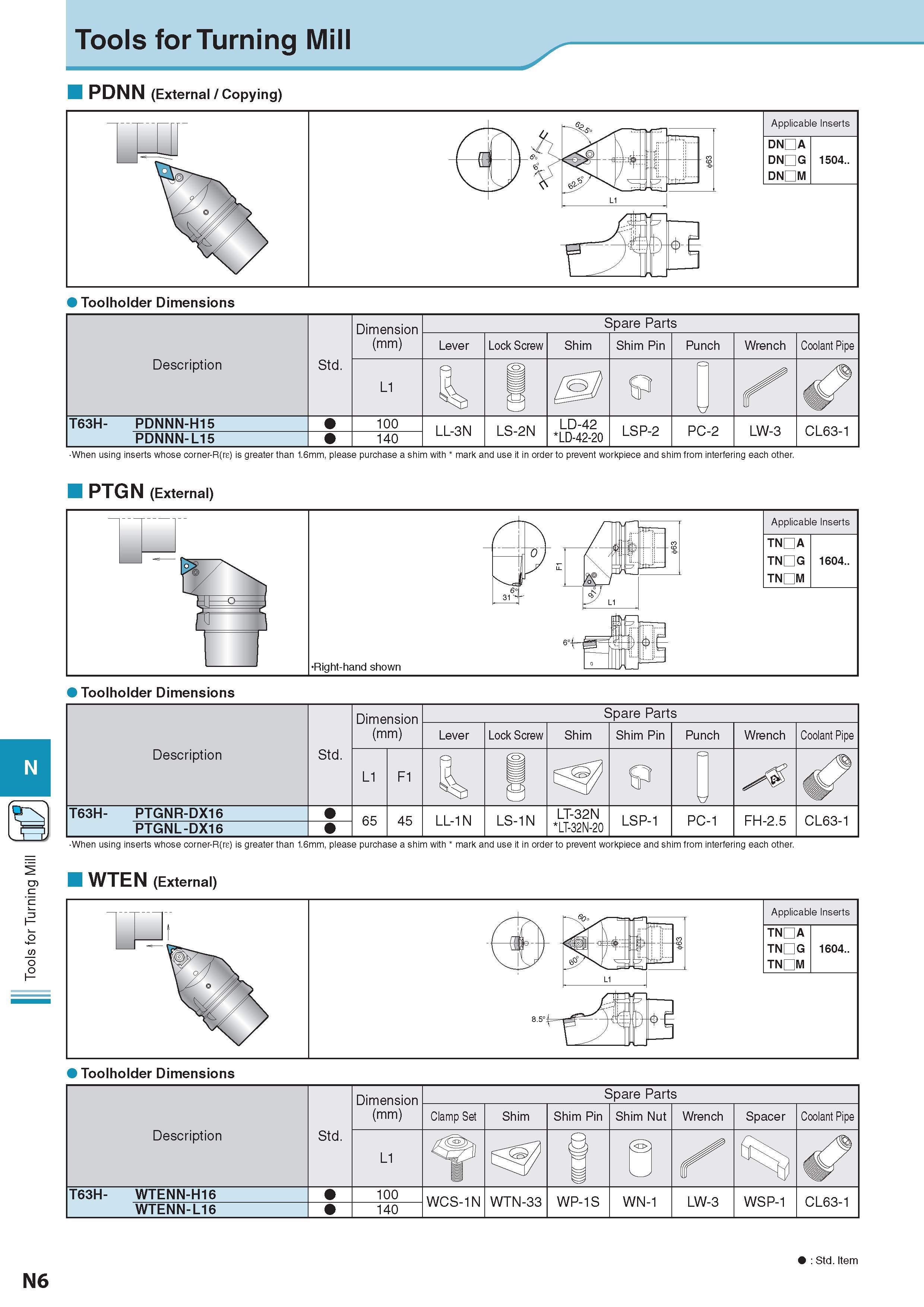

Tools for Turning Mill Tools for Turning Mill PDNN (External / Copying) Toolholder Dimensions When using inserts whose corner-R(rs) is greater than 1.6mm, please purchase a shim with mark and use it in order to prevent workpiece and shim from interfering each other. PTGN (External) Toolholder Dimensions Description Обозначение Std. Dimension (mm) Размеры в мм L1 F1 Lever Lock Screw Spare Parts Shim Shim Pin Punch Wrench Coolant Pipe T63H- PTGNR-DX16 PTGNL-DX16 65 45 LL-1N LS-1N LT-32N LT-32N-20 LSP-1 PC-1 FH-2.5 CL63-1 When using inserts whose corner-R(rs) is greater than 1.6mm, please purchase a shim with mark and use it in order to prevent workpiece and shim from interfering each other. WTEN (External) Toolholder Dimensions : Std. Item Стандартная позиция N6
