821 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.M71

Каталог KYOCERA 2017 Инструмент режущий Стр. M71 0821 Lab2u

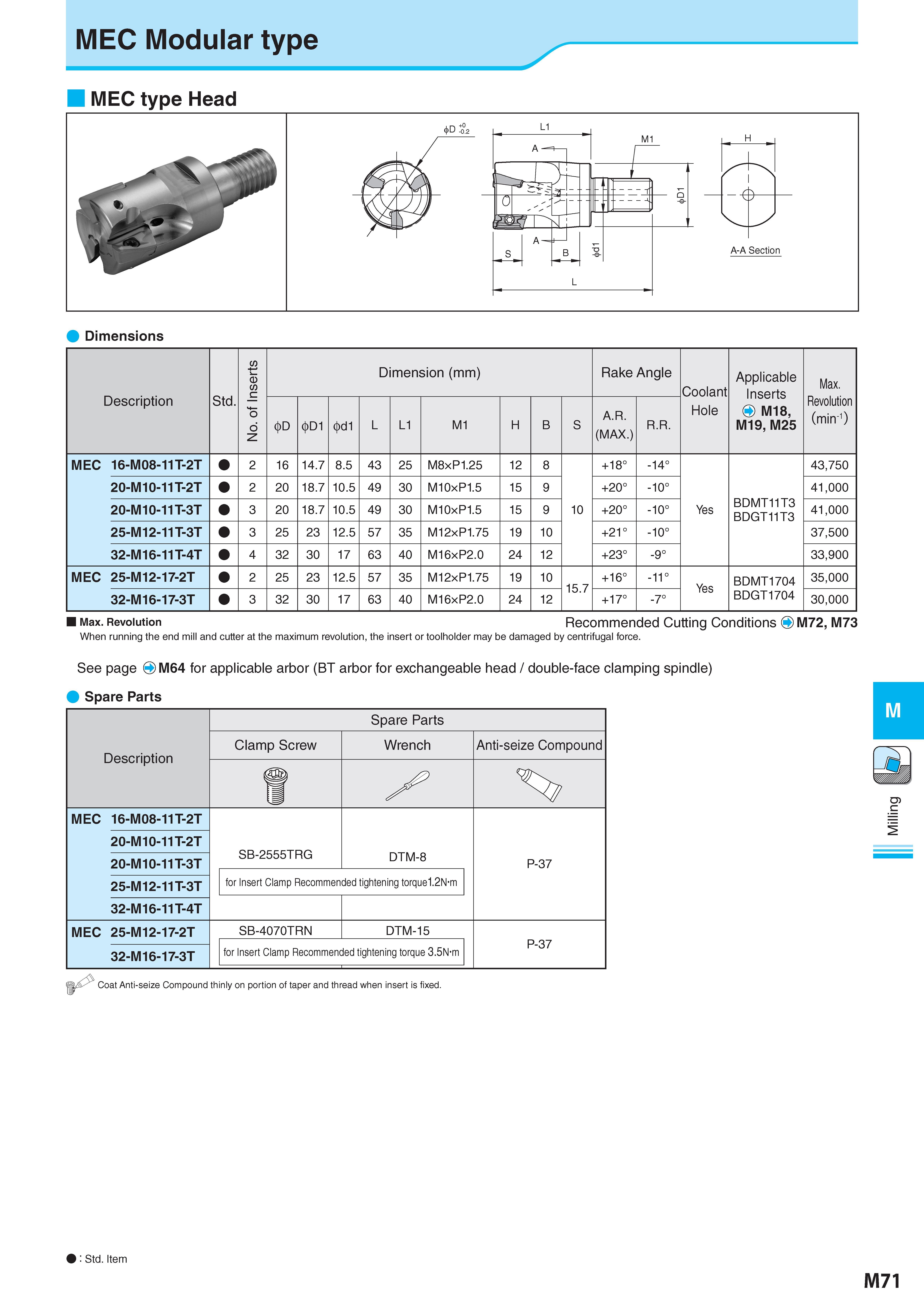

MEC Modular type MEC type Head Dimensions Description Обозначение Std. No. of Inserts Dimension (mm) Размеры в мм Rake Angle Coolant Hole Applicable Inserts O M18, M19, M25 Max. Revolution (min-1) Максимальное количество оборотов на шпинделе станка (об/мин) 4>D 4>D1 4>d1 L L1 M1 H B S A.R. (MAX.) R.R. MEC 16-M08-11T-2T N 2 16 14.7 8.5 43 25 M8xP1.25 12 8 10 +18° -14° Yes BDMT11T3 BDGT11T3 43,750 20-M10-11T-2T N 2 20 18.7 10.5 49 30 M10xP1.5 15 9 +20° -10° 41,000 20-M10-11T-3T N 3 20 18.7 10.5 49 30 M10xP1.5 15 9 +20° -10° 41,000 25-M12-11T-3T N 3 25 23 12.5 57 35 M12xP1.75 19 10 +21° -10° 37,500 32-M16-11T-4T N 4 32 30 17 63 40 M16xP2.0 24 12 +23° -9° 33,900 MEC 25-M12-17-2T N 2 25 23 12.5 57 35 M12xP1.75 19 10 15.7 +16° -11° Yes BDMT1704 BDGT1704 35,000 32-M16-17-3T N 3 32 30 17 63 40 M16xP2.0 24 12 +17° -7° 30,000 Max. Revolution Recommended Cutting Conditions Рекомендованные режимы резания на станках O M72, M73 When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. See page OM64 for applicable arbor (BT arbor for exchangeable head / double-face clamping spindle) Spare Parts Description Обозначение MEC 16-M08-11T-2T 20-M10-11T-2T 20-M10-11T-3T 25-M12-11T-3T 32-M16-11T-4T MEC 25-M12-17-2T 32-M16-17-3T Spare Parts Clamp Screw SB-2555TRG Wrench DTM-8 for Insert Clamp Recommen ded tightening torque1.2N-m SB-4070TRN DTM-15 for Insert Clamp Recommended tightening torque 3.5N-m Anti-seize Compound P-37 P-37 Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. : Std. Item Стандартная позиция M71 Milling
