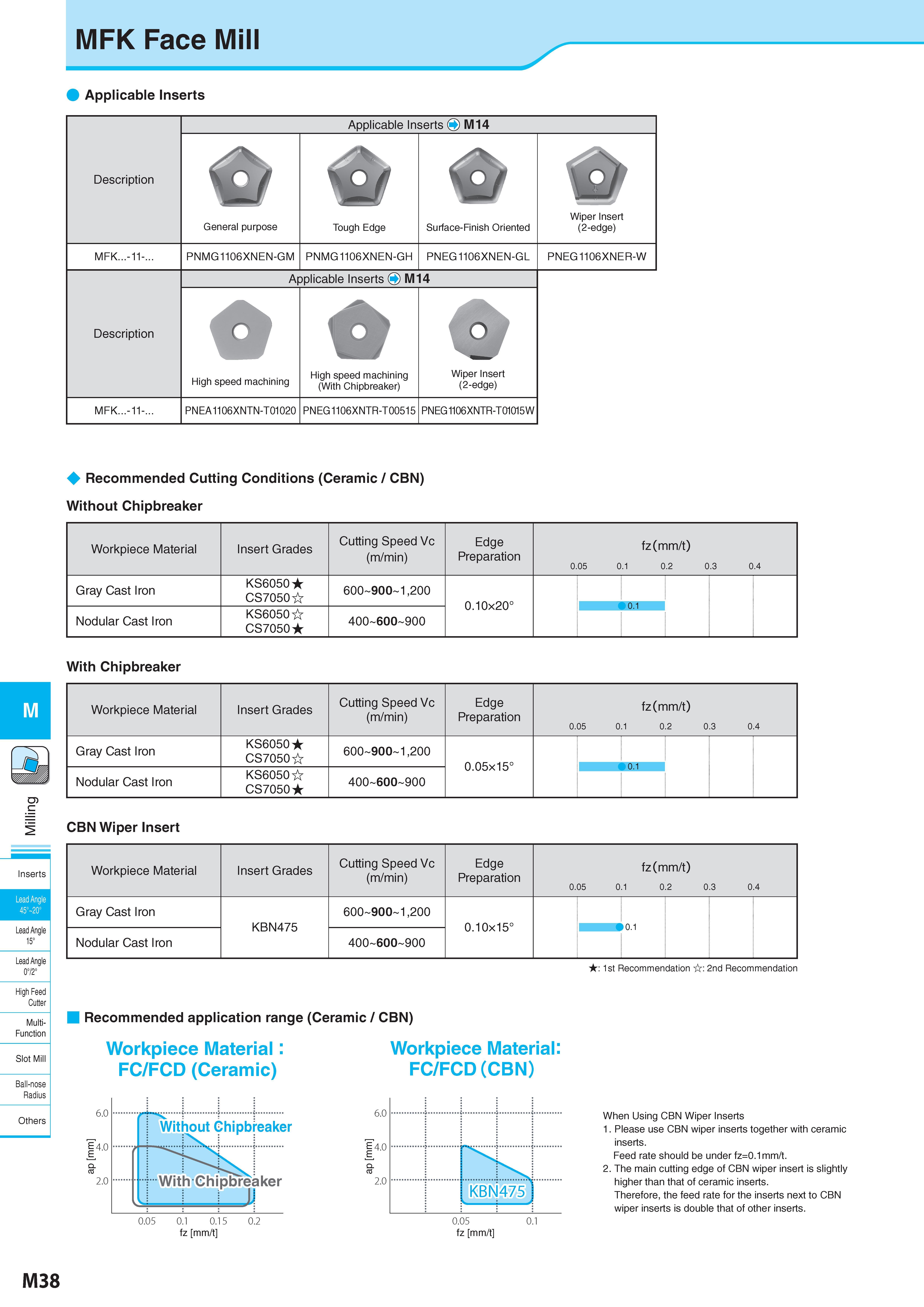

MFK Face Mill Applicable Inserts Description Обозначение Applicable Inserts O M14 General purpose w Tough Edge Surface-Finish Oriented \2) Wiper Insert (2-edge) MFK...-11-... PNMG1106XNEN-GM PNMG1106XNEN-GH PNEG1106XNEN-GL PNEG1106XNER-W Description Обозначение Applicable Inserts M14 o High speed machining 6 High speed machining (With Chipbreaker) Wiper Insert (2-edge) MFK...-11-... PNEA1106XNTN-T 01020 PNEG1106XNTR-T00515 PNEG1106XNTR-T01015W Recommended Cutting Conditions Рекомендованные режимы резания на станках (Ceramic / CBN) Without Chipbreaker Стружколом сменной пластины Workpiece Material Обрабатываемый материал Insert Grades Cutting Speed Vc (m/min) Edge Preparation fz(mm/t) 0.05 0.1 0.2 0.3 0.4 Gray Cast Iron KS6050 CS7050 600 900 1,200 0.10x20° 0 1 Nodular Cast Iron KS6050 CS7050 400 600 900 Inserts Lead Angle 15° 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others With Chipbreaker Стружколом сменной пластины Workpiece Material Обрабатываемый материал Insert Grades Cutting Speed Vc (m/min) Edge Preparation fz(mm/t) 0.05 0.1 0.2 0.3 0.4 Gray Cast Iron KS6050 CS7050 600 900 1,200 0.05x15° 0 1 Nodular Cast Iron KS6050 CS7050 400 600 900 0.1 CBN Wiper Insert Workpiece Material Обрабатываемый материал Insert Grades Cutting Speed Vc (m/min) Edge Preparation fz(mm/t) 0.05 0.1 0.2 0.3 0.4 Gray Cast Iron KBN475 600 900 1,200 0.10x15° 0.1 Nodular Cast Iron 400 600 900 : 1st Recommendation : 2nd Recommendation Recommended application range (Ceramic / CBN) Workpiece Material: FC/FCD (Ceramic) Workpiece Material: FC/FCD (CBN) 6.0 " 4.0 Q. CC 2.0 0.05 0.1 0.15 0.2 fz mm/t When Using CBN Wiper Inserts 1. Please use CBN wiper inserts together with ceramic inserts. Feed rate should be under fz=0.1mm/t. 2. The main cutting edge of CBN wiper insert is slightly higher than that of ceramic inserts. Therefore, the feed rate for the inserts next to CBN wiper inserts is double that of other inserts. fz mm/t M38
