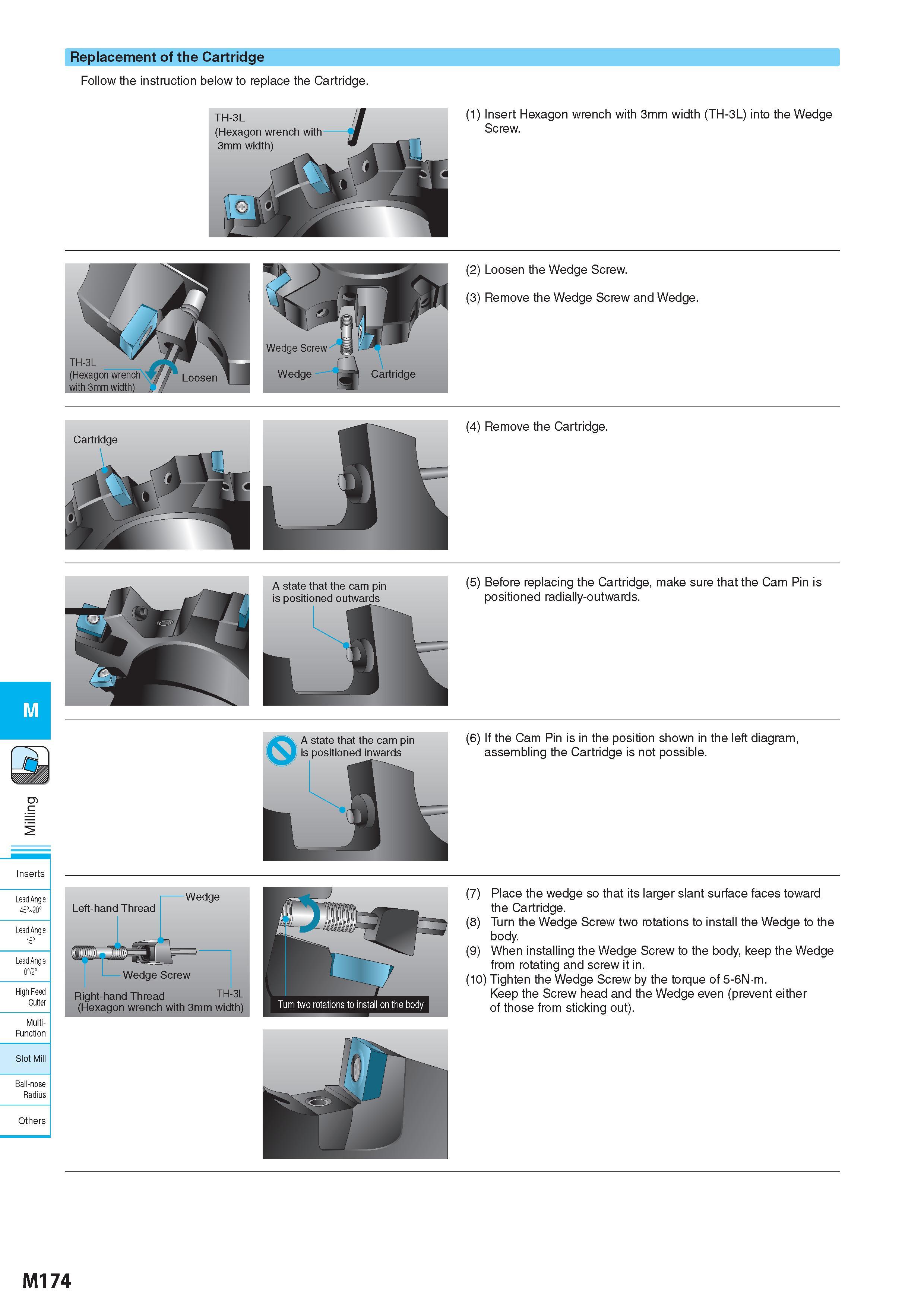

Replacement of the Cartridge Follow the instruction below to replace the Cartridge. (4) Remove the Cartridge. A state that the cam pin is positioned outwards (5) Before replacing the Cartridge, make sure that the Cam Pin is positioned radially-outwards. A state that the cam pin is positioned inwards (6) If the Cam Pin is in the position shown in the left diagram, assembling the Cartridge is not possible. Lead Angle 45° 20° Lead Angle 15° ' Lead Angle 0°/2° High Feed Cutter Multi- Function Ball-nose Radius Left-hand Thread Wedge n Right-ha (Hexago Wedge Screw nd Thread TH-3L n wrench with 3mm width) (7) Place the wedge so that its larger slant surface faces toward the Cartridge. (8) Turn the Wedge Screw two rotations to install the Wedge to the body. (9) When installing the Wedge Screw to the body, keep the Wedge from rotating and screw it in. (10) Tighten the Wedge Screw by the torque of 5-6Nm. Keep the Screw head and the Wedge even (prevent either of those from sticking out). Slot Mi M174
