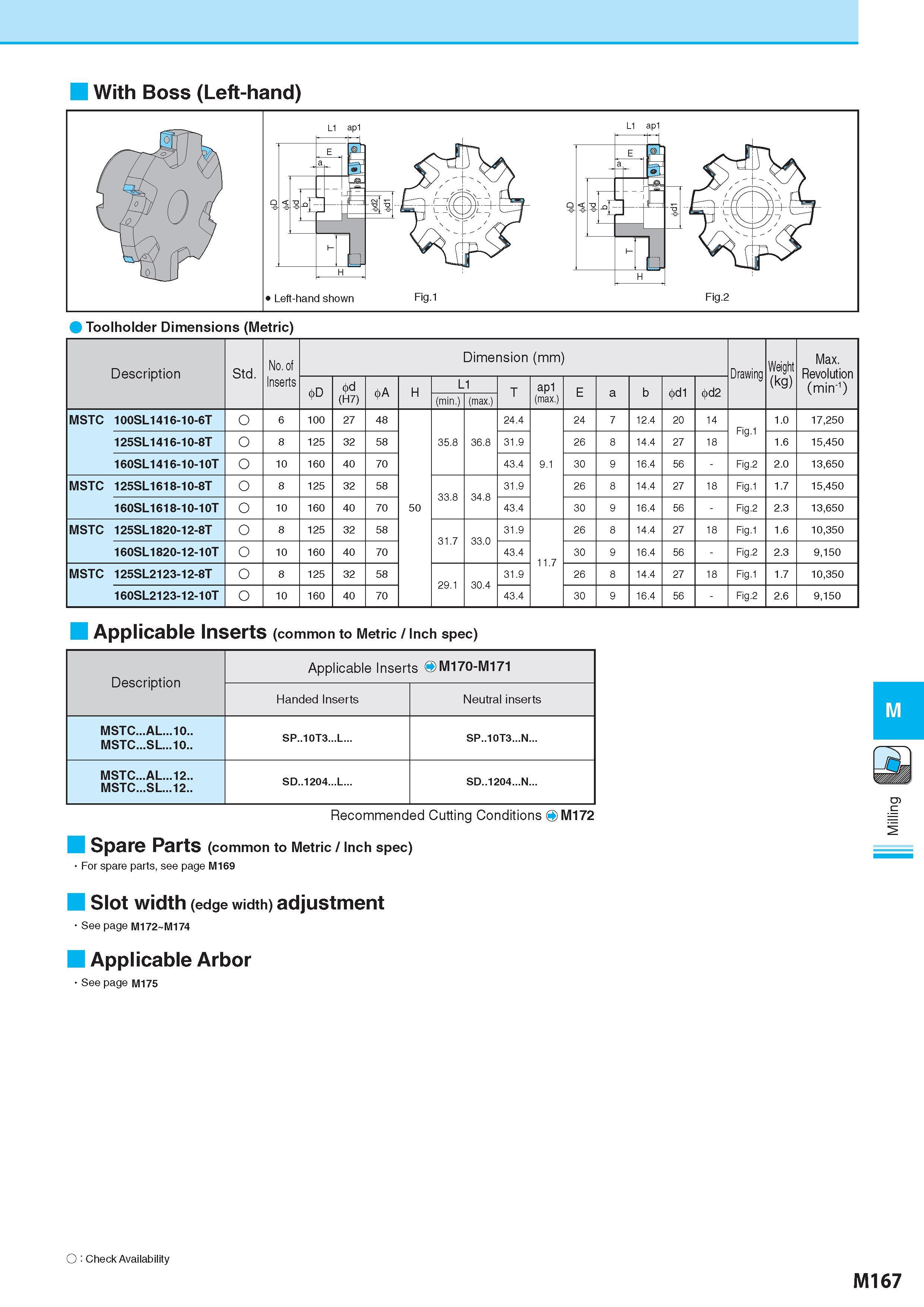

With Boss (Left-hand) Toolholder Dimensions (Metric) Description Обозначение Std. No. of Inserts Dimension (mm) Размеры в мм Drawing Weight (kg) Вес инструмента в кг (kg) Max. Revolution (min-1) Максимальное количество оборотов на шпинделе станка (об/мин) D d (H7) A H L1 T ap1 (max.) E a b d1 d2 (min.) (max.) MSTC 100SL1416-10-6T O 6 100 27 48 50 35.8 36.8 24.4 9.1 24 7 12.4 20 14 Fig.1 1.0 17,250 125SL1416-10-8T O 8 125 32 58 31.9 26 8 14.4 27 18 1.6 15,450 160SL1416-10-10T O 10 160 40 70 43.4 30 9 16.4 56 Fig.2 2.0 13,650 MSTC 125SL1618-10-8T O 8 125 32 58 33.8 34.8 31.9 26 8 14.4 27 18 Fig.1 1.7 15,450 160SL1618-10-10T O 10 160 40 70 43.4 30 9 16.4 56 Fig.2 2.3 13,650 MSTC 125SL1820-12-8T O 8 125 32 58 31.7 33.0 31.9 11.7 26 8 14.4 27 18 Fig.1 1.6 10,350 160SL1820-12-10T O 10 160 40 70 43.4 30 9 16.4 56 Fig.2 2.3 9,150 MSTC 125SL2123-12-8T O 8 125 32 58 29.1 30.4 31.9 26 8 14.4 27 18 Fig.1 1.7 10,350 160SL2123-12-10T O 10 160 40 70 43.4 30 9 16.4 56 Fig.2 2.6 9,150 Applicable Inserts (common to Metric / Inch spec) M ra Recommended Cutting Conditions Рекомендованные режимы резания на станках O M172 = 2 Spare Parts (common to Metric / Inch spec) For spare parts, see page M169 Slot width (edge width) adjustment See page M172 M174 Applicable Arbor See page M175 Description Обозначение Applicable Inserts O M170-M171 Handed Inserts Neutral inserts o o 1“ 1 J J < 6 d TT SS MM SP..10T3...L... SP..10T3...N... MSTC...AL...12.. MSTC...SL...12.. SD..1204...L... SD..1204...N... O : Check Availability M167
