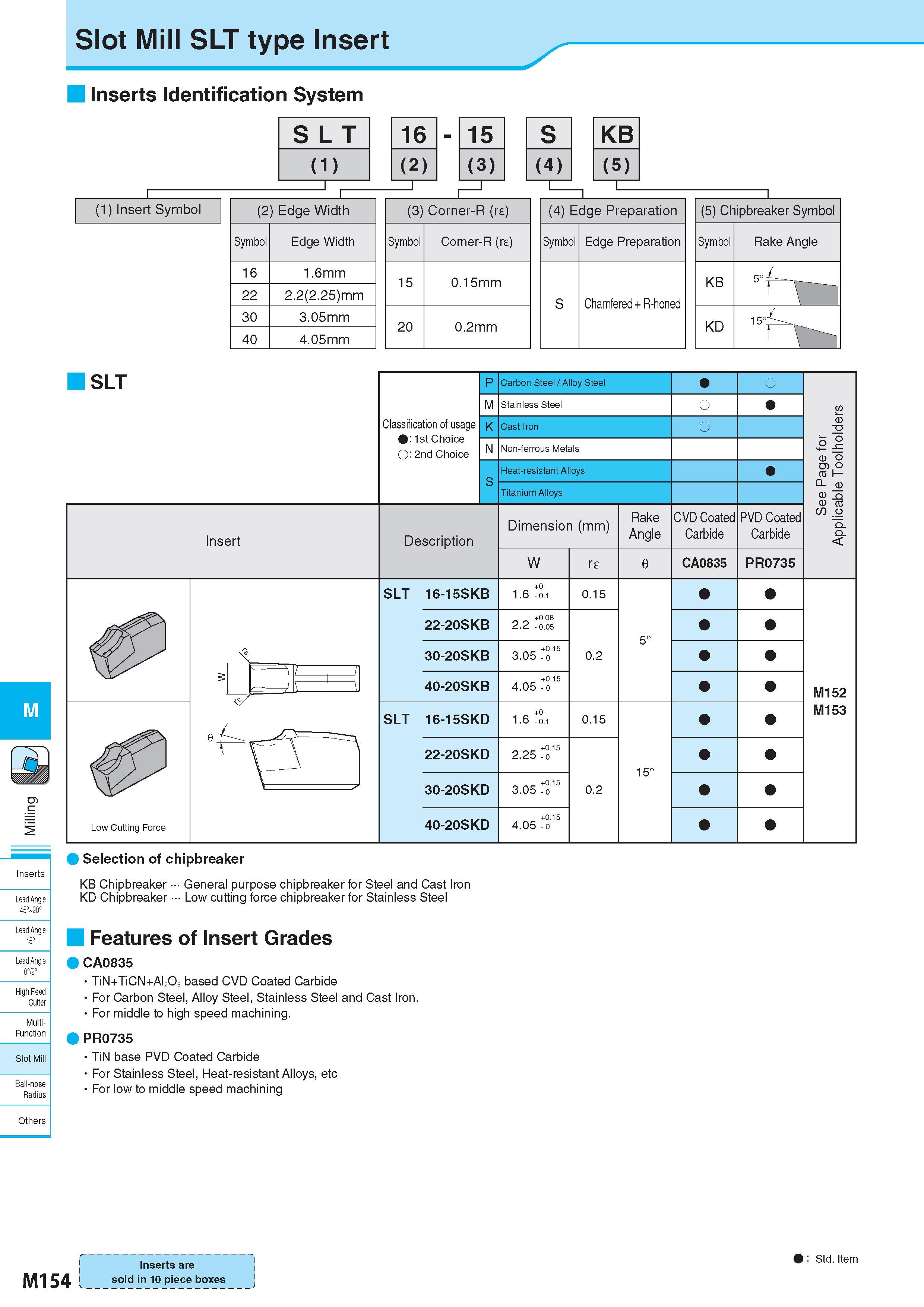

Slot Mill SLT type Insert Inserts Identification System x (1) Insert Symbol SLT 16 - 15 S KB (1) (2) (3) (4) (5) (2) Edge Width Symbol Edge Width 16 1.6mm 22 2.2(2.25)mm 30 3.05mm 40 4.05mm (3) Corner-R (re) Symbol Corner-R (re) 15 0.15mm 20 0.2mm (4) Edge Preparation Symbol Edge Preparation S Chamfered + R-honed (5) Chipbreaker Стружколом сменной пластины Symbol Symbol Rake Angle KB 5°/ . KD Lead Angle 45° 20° Lead Angle 15° Lead Angle 0°/2° High Feed Cutter Multi- Function Ball-nose Radius KB Chipbreaker Стружколом сменной пластины General purpose chipbreaker for Steel and Cast Iron KD Chipbreaker Стружколом сменной пластины Low cutting force chipbreaker for Stainless Steel Features of Insert Grades CA0835 TiN+TiCN+Al2O3 based CVD Coated Carbide For Carbon Steel, Alloy Steel, Stainless Steel and Cast Iron. For middle to high speed machining. PR0735 TiN base PVD Coated Carbide For Stainless Steel, Heat-resistant Alloys, etc For low to middle speed machining Slot Mi inserts" are ' Std Item M154 l sold in 10 piece boxes
