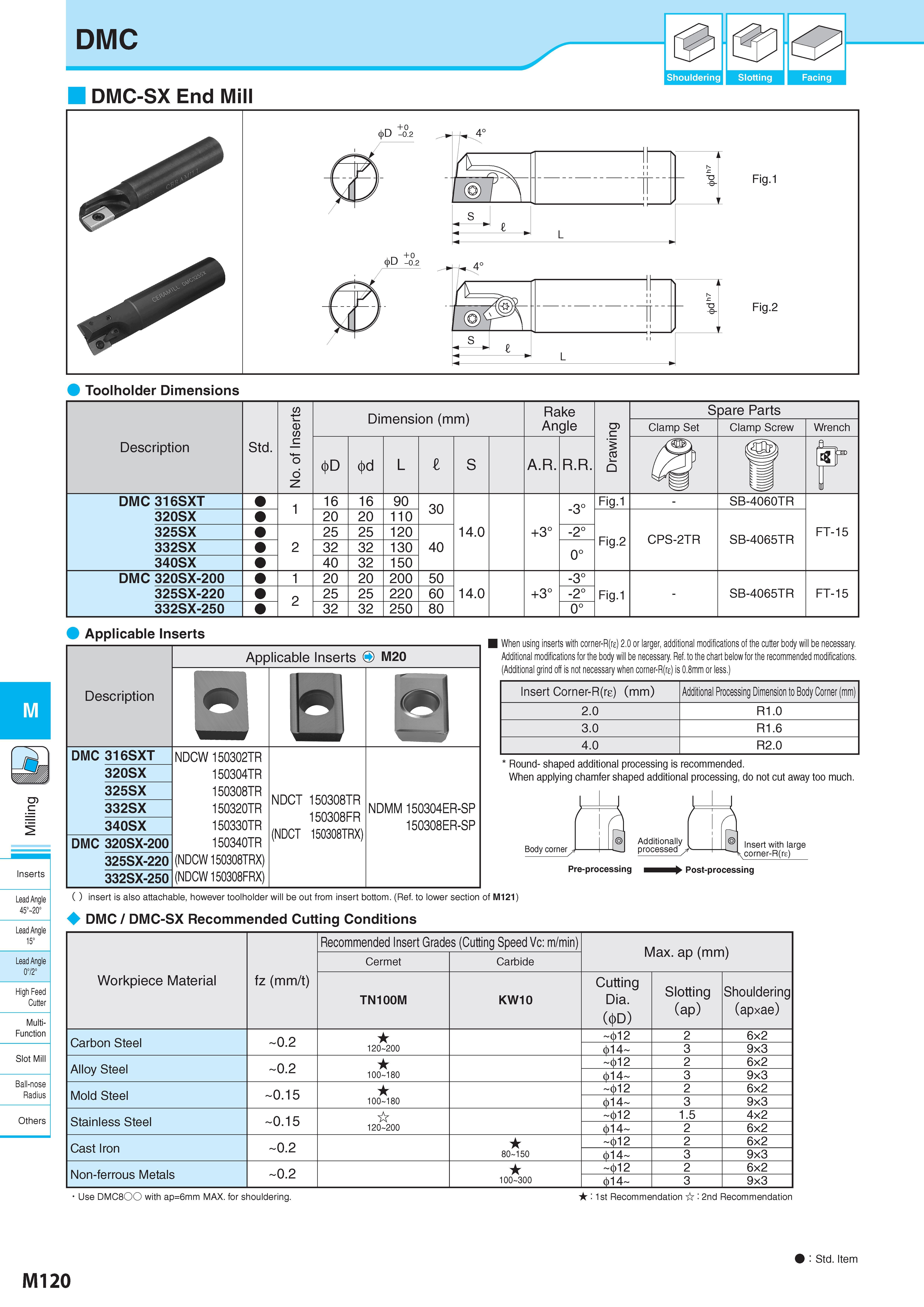

DMC DMC-SX End Mill 0 c£> Shouldering Slotting Facing Toolholder Dimensions M Inserts Lead Angle 45° 20° Lead Angle 15° Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others Applicable Inserts Description Обозначение DMC 316SXT 320SX 325SX 332SX 340SX DMC 320SX-200 325SX-220 332SX-250 Applicable Inserts M20 NDCW 150302TR 150304TR 150308TR 150320TR 150330TR 150340TR (NDCW 150308TRX) (NDCW 150308FRX) NDCT 150308TR 150308FR (NDCT 150308TRX) NDMM 150304ER-SP 150308ER-SP When using inserts with corner-R(re) 2.0 or larger, additional modifications of the cutter body will be necessary, Additional modifications for the body will be necessary. Ref. to the chart below for the recommended modifications, (Additional grind off is not necessary when corner-R(re) is 0.8mm or less.) Insert Corner-R(re) (mm) Additional Processing Dimension to Body Corner (mm) 2.0 R1.0 3.0 R1.6 4.0 R2.0 Round- shaped additional processing is recommended. When applying chamfer shaped additional processing, do not cut away too much. Pre-processing Post-processing () insert is also attachable, however toolholder will be out from insert bottom. (Ref. to lower section of M121) DMC / DMC-SX Recommended Cutting Conditions Рекомендованные режимы резания на станках Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) Max. ap (mm) Cermet Carbide Workpiece Material Обрабатываемый материал fz (mm/t) TN100M KW10 eg i . Q = Q ; C( Slotting (elf)) Shouldering (apxae) Carbon Steel 0.2 ;12 2 6x2 120 200 ;14 3 9x3 Alloy Steel 0.2 ;12 2 6x2 100 180 ;14 3 9x3 Mold Steel 0.15 ;12 2 6x2 100 180 ;14 3 9x3 Stainless Steel 0.15 ;12 1.5 4x2 120 200 ;14 2 6x2 Cast Iron 0.2 ;12 2 6x2 80 150 ;14 3 9x3 Non-ferrous Metals 0.2 ;12 2 6x2 100 300 ;14 3 9x3 Use DMC800 with ap=6mm MAX. for shouldering. : 1st Recommendation : 2nd Recommendation M120 : Std. Item
