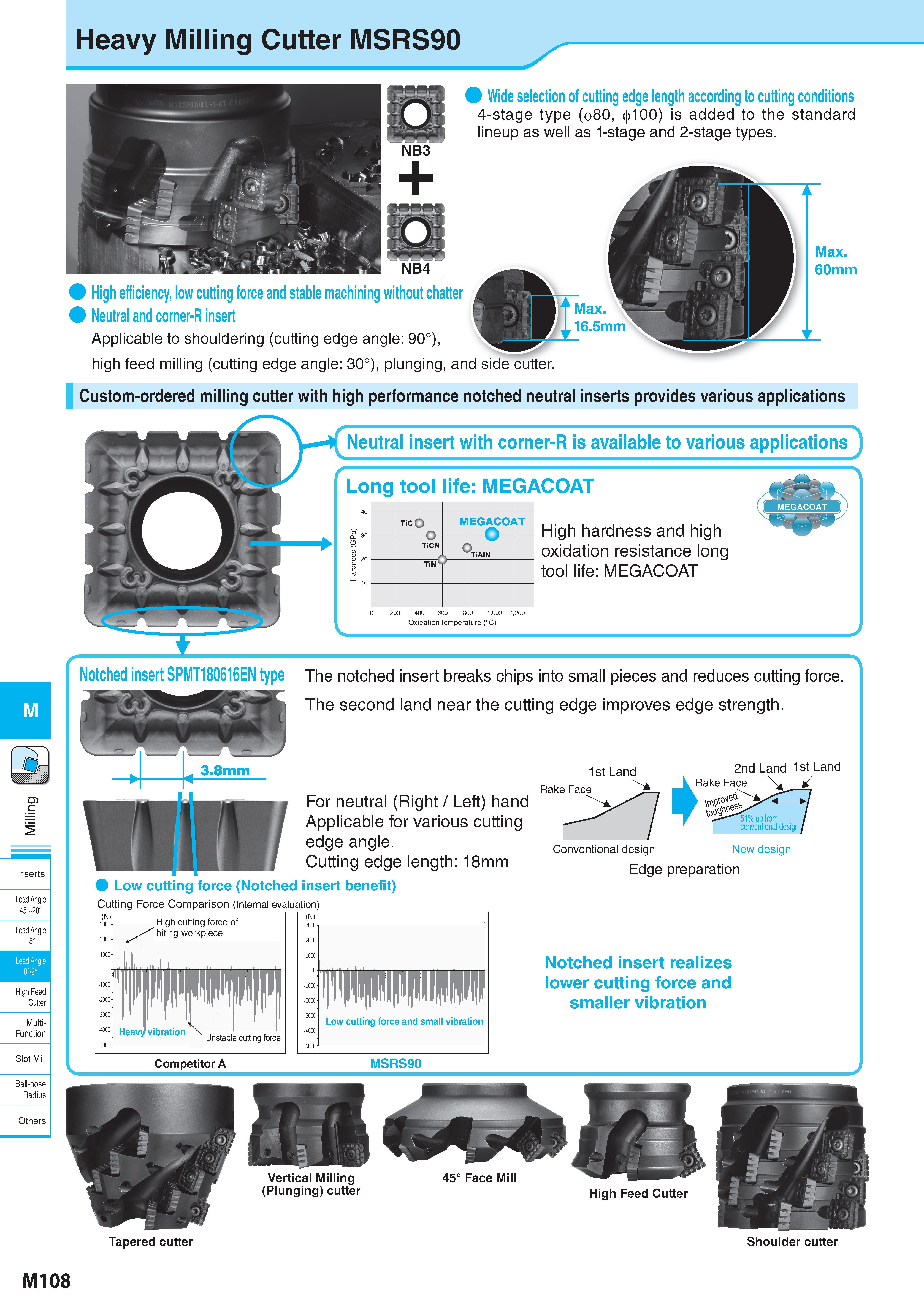

Heavy Milling Cutter MSRS90 M Inserts Lead Angle 45° 20° Lead Angle 15° Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Max. 16.5mm High efficiency, low cutting force and stable machining without chatter Neutral and corner-R insert Applicable to shouldering (cutting edge angle: 90°), high feed milling (cutting edge angle: 30°), plunging, and side cutter. Custom-ordered milling cutter with high performance notched neutral inserts provides various applications Max. 60mm Wide selection of cutting edge length according to cutting conditions 4-stage type ( 80, 100) is added to the standard lineup as well as 1-stage and 2-stage types. Neutral insert with corner-R is available to various applications Notched insert SPMT180616EN type The notched insert breaks chips into small pieces and reduces cutting force. The second land near the cutting edge improves edge strength. For neutral (Right / Left) hand Applicable for various cutting edge angle. Cutting edge length: 18mm 1st Land Rake Face 2nd Land 1st Land Rake Face v Low cutting force (Notched insert benefit) Cutting Force Comparison (Internal evaluation) Conventional design New design Edge preparation Notched insert realizes lower cutting force and smaller vibration Competitor A MSRS90 Vertical Milling (Plunging) cutter 45° Face Mill High Feed Cutter Tapered cutter Shoulder cutter M108
