719 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.L76

Каталог KYOCERA 2017 Инструмент режущий Стр. L76 0719 Lab2u

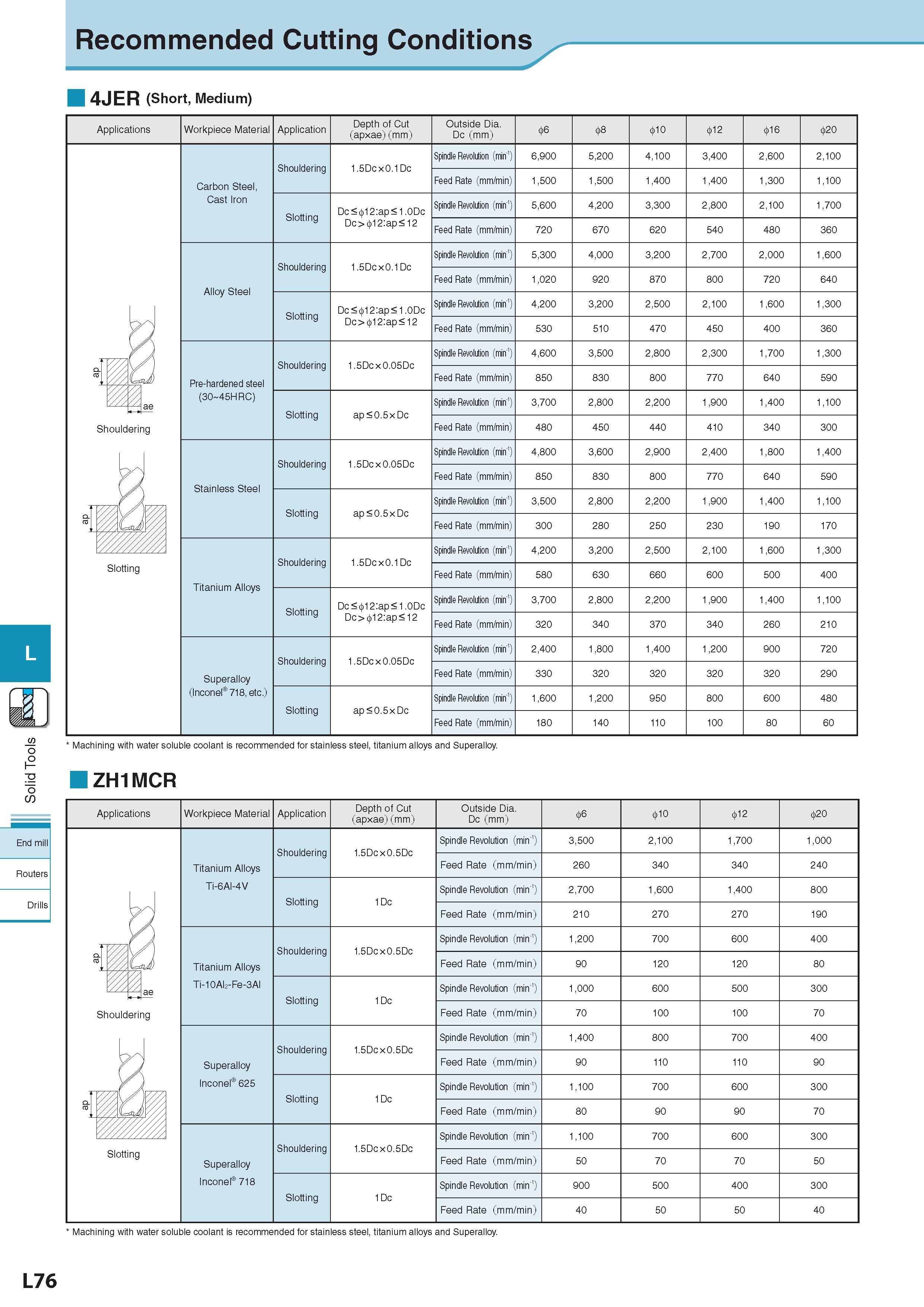

Recommended Cutting Conditions Рекомендованные режимы резания на станках End mill Routers Drills L76 4JER (Short, Medium) Applications Workpiece Material Обрабатываемый материал Application Depth of Cut (apxae) (mm) Outside Dia. Dc (mm) 06 08 010 012 016 020 Carbon Steel, Cast Iron Shouldering 1.5Dcx0.1Dc Spindle Revolution (min-1) 6,900 5,200 4,100 3,400 2,600 2,100 Feed Rate (mm/min) 1,500 1,500 1,400 1,400 1,300 1,100 Slotting Dc< 012:ap<1.0Dc Dc> 012:ap<12 Spindle Revolution (min-1) 5,600 4,200 3,300 2,800 2,100 1,700 Feed Rate (mm/min) 720 670 620 540 480 360 Alloy Steel Shouldering 1.5Dcx0.1Dc Spindle Revolution (min-1) 5,300 4,000 3,200 2,700 2,000 1,600 Feed Rate (mm/min) 1,020 920 870 800 720 640 Slotting Dc< 012:ap<1.0Dc Dc> 012:ap<12 Spindle Revolution (min-1) 4,200 3,200 2,500 2,100 1,600 1,300 Feed Rate (mm/min) 530 510 470 450 400 360 I Pre-hardened steel (30 45HRC) Shouldering 1.5Dcx0.05Dc Spindle Revolution (min-1) 4,600 3,500 2,800 2,300 1,700 1,300 ro ae Feed Rate (mm/min) 850 830 800 770 640 590 /Z//. Slotting ap < 0.5 x Dc Spindle Revolution (min-1) 3,700 2,800 2,200 1,900 1,400 1,100 Shouldering Feed Rate (mm/min) 480 450 440 410 340 300 Stainless Steel Shouldering 1.5Dcx0.05Dc Spindle Revolution (min-1) 4,800 3,600 2,900 2,400 1,800 1,400 Feed Rate (mm/min) 850 830 800 770 640 590 Slotting ap < 0.5 x Dc Spindle Revolution (min-1) 3,500 2,800 2,200 1,900 1,400 1,100 CC 1 1 Feed Rate (mm/min) 300 280 250 230 190 170 Titanium Alloys Shouldering 1.5Dcx0.1Dc Spindle Revolution (min-1) 4,200 3,200 2,500 2,100 1,600 1,300 Slotting Feed Rate (mm/min) 580 630 660 600 500 400 Slotting Dc< 012:ap<1.0Dc Dc> 012:ap<12 Spindle Revolution (min-1) 3,700 2,800 2,200 1,900 1,400 1,100 Feed Rate (mm/min) 320 340 370 340 260 210 Superalloy (Inconel 718, etc.) Shouldering 1.5Dcx0.05Dc Spindle Revolution (min-1) 2,400 1,800 1,400 1,200 900 720 Feed Rate (mm/min) 330 320 320 320 320 290 Slotting ap < 0.5 x Dc Spindle Revolution (min-1) 1,600 1,200 950 800 600 480 Feed Rate (mm/min) 180 140 110 100 80 60 Machining with water soluble coolant is recommended for stainless steel, titanium alloys and Superalloy. ZH1MCR Applications Workpiece Material Обрабатываемый материал Application Depth of Cut (apxae) (mm) Outside Dia. Dc (mm) 06 010 012 020 Titanium Alloys Ti-6Al-4V Shouldering 1.5Dcx0.5Dc Spindle Revolution (min-1) 3,500 2,100 1,700 1,000 Feed Rate (mm/min) 260 340 340 240 Slotting 1Dc Spindle Revolution (min-1) 2,700 1,600 1,400 800 Feed Rate (mm/min) 210 270 270 190 Titanium Alloys Ti-10Al2-Fe-3Al Shouldering 1.5Dcx0.5Dc Spindle Revolution (min-1) 1,200 700 600 400 CC ae Feed Rate (mm/min) 90 120 120 80 //// V// Slotting 1Dc Spindle Revolution (min-1) 1,000 600 500 300 Shouldering Feed Rate (mm/min) 70 100 100 70 Superalloy Inconel 625 Shouldering 1.5Dcx0.5Dc Spindle Revolution (min-1) 1,400 800 700 400 Feed Rate (mm/min) 90 110 110 90 Slotting 1Dc Spindle Revolution (min-1) 1,100 700 600 300 CC 1 1 Feed Rate (mm/min) 80 90 90 70 Superalloy Inconel 718 Shouldering 1.5Dcx0.5Dc Spindle Revolution (min-1) 1,100 700 600 300 Slotting Feed Rate (mm/min) 50 70 70 50 Slotting 1Dc Spindle Revolution (min-1) 900 500 400 300 Feed Rate (mm/min) 40 50 50 40 Machining with water soluble coolant is recommended for stainless steel, titanium alloys and Superalloy.
